Nitrogen Welding Refrigeration Tech Temperature And Humidity Chamber For PBC Testing
Nitrogen welding Refrigeration Technology Temperature Humidity Chamber for PBC testing
1. High Performance Temperature Humidity Chamber Application
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc..
Insulation box:
wall material: high-quality carbon steel with static color spray
inner wall material: SUS304 # matte stainless steel plate
Insulation materials: rigid polyurethane foam insulation layer + glass fiber.
Door:
Heating wire was installed at the door frames to prevent condensation at low temperatures.
Humidifier:
Basin heated humidification
Stainless steel sheathed heater
Heater control: non-contact period, such as pulse width modulation, SSR (solid state relay)
Water level control devices, anti-dry unit heater
Refrigeration Technology
Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable.
water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber.
2. Test Chamber Features
● GB-2423．1-89(IEC68-2-1)Test A:Low Temperature Test
● GB-2423．2-89(IEC68-2-2)Test B:High Temperature Test
● GJB360．8-87(MIL-STD．202F) High Temperature Life Test
● GJBl50．3(MIL-STD-810D) High Temperature Test
● GJBl50．4(MIL-STD-810D) Low Temperature Test
● GB2423．3-93(IEC68-2-3)Test Ca:Constant Heat Test
● GB2423．4-93(IEC68-2—30)Test Db:Damp Heat Alternative Test
● GJBl50．9-93(MIL-STD-810D) Damp Heat Test
3. Temperature Humidity Test Chamber Main Technical Specifications Quick Know:

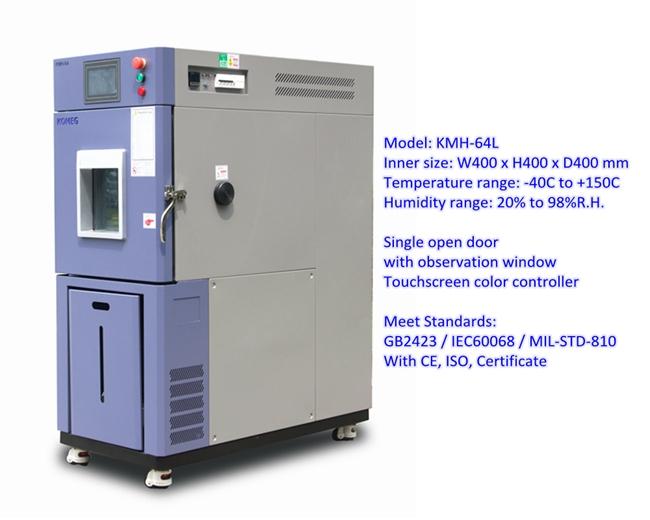

| Model | KMH-64L | ||||
| 64L chamber volume | |||||
| Temp. range | -40°C ～150°C | ||||
| Display resolution | 0.1°C | ||||
| Temperature stability | High±0.5°C ,low ±1.0°C | ||||
| Temperature uniformity | ±2.0°C | ||||
| Heat up time | -40°C ～+100°C,within 45 min | ||||
| Pull down time | +20°C ～-40°C,within 60 min | ||||
| Humidity range | 20～98％R.H,(standard), '10～98％R.H,(with humidifier) | ||||
| Humidity constancy | ±2.5％R.H | ||||
| Humidity uniformity | ±3.0％R.H | ||||
| Interior Dimension(mm) | 400W x 400H x 400D | ||||
| Exterior Dimension(mm) | 598W x 1470H x 940D | ||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| Total power | 4.5KW(heater 2KW included) | ||||
| Max current | 10A | ||||
| Water Consumption | 0.35L/hr | ||||
| Ambient Temp. | +5°C ～+35°C | ||||
| Power Supply | AC 380V±10％ 50Hz ,3 phase 4 wires +Ground Wires | ||||
| Weight | 250KG | ||||
| Sight window size | with LED light | ||||
| Sample holder | 2 pcs | ||||
| Fittings | cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m | ||||
| Safety device (standard) | No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect | ||||
| Control System | Balanced Temperature & Humidity Control (BTHC)System | ||||
| Refrigeration system | Air Cooled (Water Cooled is option) | ||||
| Hermetic compressor | |||||
| Hermetic compressor Single stage refrigeration system, CFC-Free refrigerant(HFC-507/HFC-23) |
|||||
| CFC-Free refrigerant(HFC-507/HFC-23) | |||||
| Controller | 7-inch LCD Touch Screen panel | ||||
| Operation model :Program or fix point running | |||||
| Memory capacity :120programs,1200steps, | |||||
| All repeat 999 cycles, part repeat 99 cycles | |||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||||
