KOMEG Stainless Steel Reach in Type Constant Environmental temperature and humidity chamber
KOMEG Stainless Steel Reach in Type Constant Environmental temperature and humidity chamber
1. Application:
KOMEG Environmental Systems supplies Temperature / Humidity Chambers to program controlled conditions of combined temperature and relative humidity.
Environmental test chambers for temperature and humidity testing. Many sizes and temperature and humidity options available.
2. Products CE Certificate and Features:
1) Stainless steel interior
2) Painted galvanized steel exterior for long life
3) MAP service doors are hinged (no tools or lifting)
4) Easy access to frequently checked refrigeration components

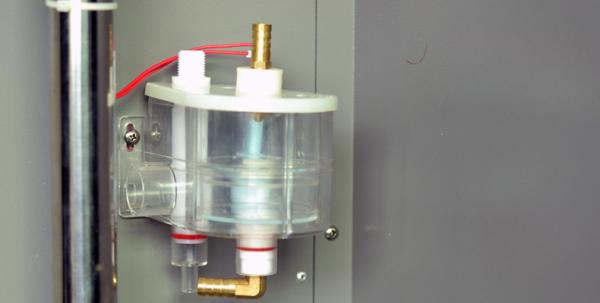

5) Reliable steam generator system for humidity applications
6) Adjustable vanes in supply grille allow directing of airflow as needed
The KMH-L Series use a single-stage mechanical refrigeration system that can produce dry bulb temperatures down to -158°F / -70°C.
Rapid response heaters are baffled to eliminate direct radiation to the test items at high temperatures of up to +302°F / +150°C.

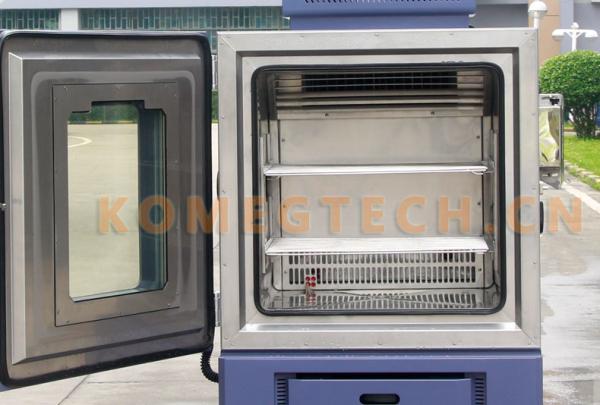

Chamber liners are hermetically sealed and made of heliarc welded stainless steel.
4. Main Technical Specifications Quick Know:
| Model | KMH-64S | ||||
| 64L chamber volume | |||||
| Temp. range | -70°C ～150°C | ||||
| Display resolution | 0.1°C | ||||
| Temperature stability | High±0.5°C ,low ±1.0°C | ||||
| Temperature uniformity | ±2.0°C | ||||
| Heat up time | -70°C ～+100°C,within 60 min | ||||
| Pull down time | +20°C ～-70°C,within 80 min | ||||
| Humidity range | 20～98％R.H,(standard), '10～98％R.H,(with humidifier) | ||||
| Humidity constancy | ±2.5％R.H | ||||
| Humidity uniformity | ±3.0％R.H | ||||
| Interior Dimension(mm) | 400W X 400H X 400D | ||||
| Exterior Dimension(mm) | 600W X 1526H X 1200D | ||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| Total power | 5.2KW(heater 2KW included) | ||||
| Max current | 12.5A | ||||
| Water Consumption | 0.35L/hr | ||||
| Ambient Temp. | +5°C ～+35°C | ||||
| Power Supply | AC 380V±10％ 50Hz ,3 phase 4 wires +Ground Wires | ||||
| Weight | 200KG | ||||
| Sight window size | 215*230mm | ||||
| Sample holder | 2 pcs | ||||
| Fittings | cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m | ||||
| Safety device (standard) | No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect | ||||
| Control System | Balanced Temperature & Humidity Control (BTHC)System | ||||
| Refrigeration system | Air Cooled (Water Cooled is option) | ||||
| Hermetic compressor | |||||
|
Hermetic compressor |
|||||
| CFC-Free refrigerant(HFC-507/HFC-23) | |||||

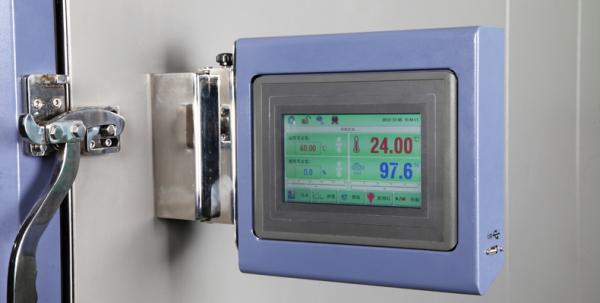

| Controller | 7-inch LCD Touch Screen panel | ||||
| Operation model :Program or fix point running | |||||
| Memory capacity :120programs,1200steps, | |||||
| All repeat 999 cycles, part repeat 99 cycles | |||||
|
Note: 1. We reserve the right to change specifications without prior notice |
|||||
Specifications for Climatic Test Chambers:
Standard Met and Implemented:
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method 6
GJB150.4-1986 test at low temperature
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
MIL - STD - 202G - 103B humidity test
IEC60068-2-30 humidity temperature cycle
GB/T2423.3 constant humidity heat test method
5. Temperature and Humidity Testing chamber detail:
Packing Details:
We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easyload and transport, and to keep the chambers from potential crash or impact.
