KMH-64series CE Certified High Precision Climate Test Chamber For R&D institution
KMH-64series CE Certified High Precision Climate Test Chamber For R&D institution
Why Choose KOMEG?
As a professional manufacturer, KOMEG specialized in Environmental Simulation test equipment for quality conscious people since 1990.
We supply high low alternating temp. humidity test chamber, Thermal shock test chamber, Temperature & Humidity test chamber with working temperature range from -70 up to +180 and humidity range running from 20 to 98%RH, High temperature test chamber with temperature range up to +300, Constant climate cabinet, Bench-top temperature & Humidity chamber, Walk-in type temperature & Humidity test chamber, Salt spray test chamber, vacuum drying oven etc.
Besides, we also offer custom made models in temperature ,temperature&humidity,different size & configuration to fulfill customers' special needs.
Benefits more than you can get from other supplier:
1)Delicate touch and excellent user experience
2)Unique and compact design, top grade appearance, stable performance and easy operation.
3)Can simulate a wide range of temperature and humidity environments
4)Capable of testing large components, assemblies, and finished products
5)Customized sizes and configurations available
6)1 year warranties
The technical parameter is as the following:
| Environmental Temperature and Humidity Chamber | ||||
| Secifications ( at +20ºC room temp. Or+25ºC water temp with empty load) | ||||
| Model | KMH-R series | KMH-L series | KMH-S series | |
| 64R | 64L | 64S | ||
| Temp. range | -20ºC~150ºC | -40 ºC~+150ºC | -70ºC~+150ºC | |
| Interior sizel | W(mm) | 400 | 400 | 400 |
| H(mm) | 400 | 400 | 400 | |
| D(mm) | 400 | 400 | 400 | |
| Exterior size | W(mm) | 600 | 600 | 600 |
| H(mm) | 1526 | 1526 | 1526 | |
| D(mm) | 1200 | 1200 | 1200 | |
| Power(KW) | 4.5 | 4.5 | 4.5 | |
| Weight(KG) | 150 | 150 | 150 | |
| Humidity uniformity | ±3.0%R.H | ±3.0%R.H | ±3.0%R.H | |
| Heat up time | -20ºC~+100ºC,within 35 min | -40ºC~+100ºC, within 45 min | -70ºC~+100ºC,within 60 min | |
| Pull down time | +20ºC~-20ºC, within 45 min | +20ºC~-40ºC , within 60 min | +20ºC~-70ºC,within 80 min | |
| Standard accessories | Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m | |||
| Safety device (standard) | No fuse breaker, over pressureover heat and over current protection for compressor, | |||
| Over temp. protect, over load protect of blower, dry heat protection | ||||
| Control System | Balanced Temperature & Humidity Control System | |||
| Refrigeration system | Air Cooled (Water Cooled Type is option) | |||
| Hermetic compressor,Single stage refrigeration system | ||||
| CFC-Free refrigerant(HFC-507/HFC-23) | ||||
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | |||
| Operation model :Program or fix point running | ||||
| Memory capacity :120programs,1200steps, | ||||
| All repeat 999 cycles, part repeat 99 cycles | ||||
| Humidity Range | 20~98%R.H | |||
| Temp. constancy | ±0.5ºC | |||
| Humidity constancy | ±2.5%R.H | |||
| Temp. uniformity | ±2.0ºC | |||
| Interior material | Stainless Steel Plate(SUS 304) | |||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||
| Ambient Temp. | +5ºC~+35ºC | |||
| Wiring method | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | |||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | ||||
Features:
Standard configurations:
Sight window X 1
Cable port (port Ø 50mm) X 1
Shelves X 2
Chamber lamp X 1
Power cable X 2m
No fuse breaker, over-pressure, over-heat and over-current for compressor, over-temperature, overloading of blower, dry heat-protection
Optional accessories:
Cable port: Ø 100mm is available
Shelves
RO-type water purifier: R-80/day
Provided to keep the humidifying heater and wet bulb wick free from scale
Inner glass door with operating port: A glass door can be provided behind the main door so that specimens can be observed
Two operating ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door
Dehumidifier: The rotation regenerating dehumidifier M-120 ensures precise control of low-humidity (5° C 5% RH) for electronics
Besides this chamber, we also supply Walk-in Constant Temperature and Humidity Chamber, Solar panel test chamber, 3-zone thermal shock chamber, 2- zone thermal shock chamber, Rapid Temperature Change Chamber, High and Low Temperature Altitude Test Chamber, Temperature/ Humidity /Vibration three integrated Chamber, . Precising Drying Test Chamber, Vacuum oven / No oxidation Oven, Air Exchange Type Aging Oven, Burn-in Room, Salt spray Chamber, Two wings Drop tester, Vibration Testing Machine

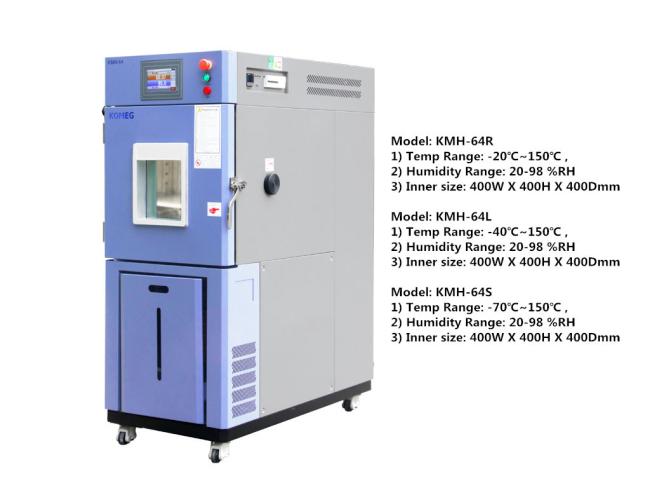

Product pictures
