Powerful Stainless steel 3-Zone Thermal Shock Testing Chamber Automobile Part

Thermal shock testing subjects a product to alternating extremes of high and low temperatures in order to observe changes in the product’s characteristics and failure occurrences caused by different materials and thermal expansion.

KOMEG thermal shock chambers and thermal stress chambers are designed to operate in accordance with reliability programs, quality control, commercial test programs, and military test standards.

Standards Met and Implemented:

GB/T2423.1.2
GB10592-89
GJB150

Specifications:

Features of Different Cooling Mode for thermal shock chambers:

Since the cold chamber need huge cooling capacity for shocking, the chamber’s cooling mode is often designed as air-cooled or water-cooled.

Air-cooled type need installation environment:
The room must be equipped with exhauster and air conditioner to make sure heat dissipation timely.
It’s applied to small power products and cool areas.

Water-cooled type need installation conditions:
The customer must prepare water pipe and water tower (located outside) accordingly.
The water must be pure, or it will block the pipes and result in some maintenance trouble with time going.
It’s often applied to large system with the features of better heat dissipation, longer service time, low noise but slightly higher price if count the fee of water tower and water pipes.

Thermal Shock Test Chamber Features

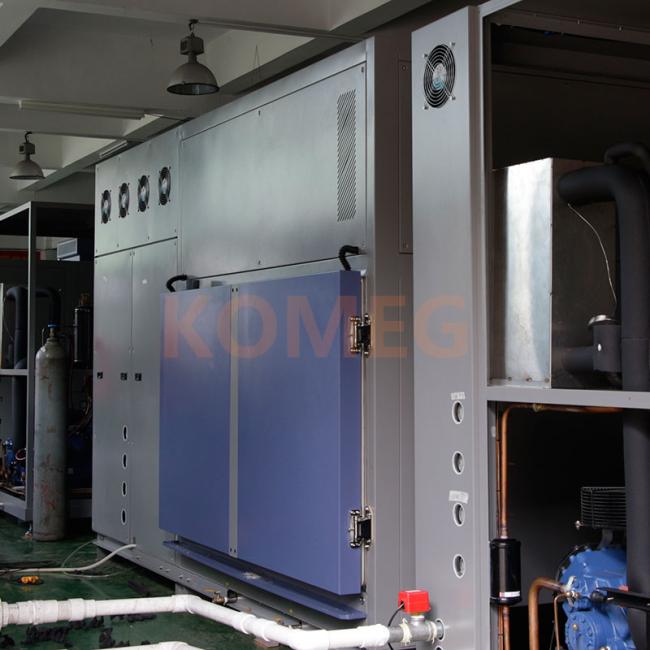

1.3-zone design: high temperature zone, cold temperature zone, and testing zone.
2.The test specimens under test are stationary in the testing zone.
3.Touch-control operation interface for ease of use.
4.Max.999H and max.9999 cycles for high or low temperature shock for thermal shock test chamber.
5.Automatic cycling shock or/and manual selective shock are available.

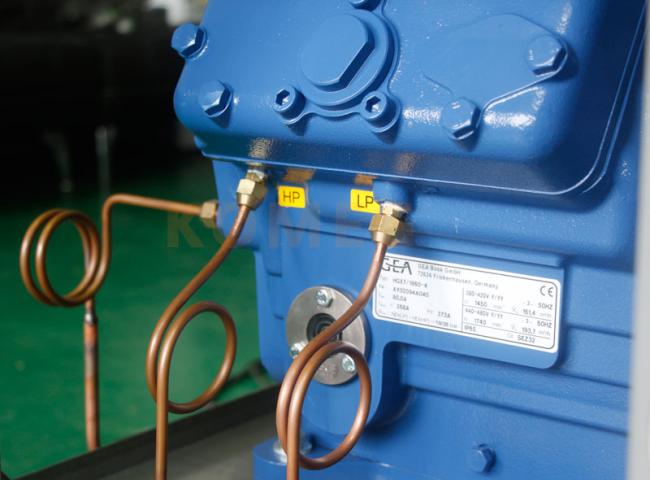

6.Water cooled, binary cooling system for quick cooling effect.
7.Japan imported Seamless Welding Machine, especially for copper pipe welding

KOMEG offers several configurations of thermal shock chambers capable of meeting a wide variety of testing needs.
Vertical, two zone chamber has hot and cold zones that can be controlled independently.
Horizontal, three zone thermal shock chamber utilizes controlled areas for hot, ambient and cold temperatures.
Double duty thermal shock chambers from KOMEG are designed with hot zones above and below the cold zone and a two compartment product carrier that simultaneously moves products between the hot and cold zones.
