Environmental Cold and Heating Thermal Shock Test Chamber TST 360A
Environmental thermal shock resistance test chamber
1. Application
Its test method with the specimen under static state completely is presently used for the test and research of electronic products as well as for the large selection of semiconductor production lines, which can largely save the test expense for the consumptive materials. It is of fast operation and high reliability. It is the high performance test machine researched and developed by our company with great concentration and full effort for many years, which can provide you with the long-term and reliable test tool.
2. Corresponding standard:
2.1. GB/T2423.1-1989
2.2. GB/T2423.2-1989
2.3. GB/T2423.22-1989
2.4. GJB150.5-86
2.5. GJB360.7-87
2.6. GJB367.2-87 405
2.7. SJ/T10187-91Y73
2.8. SJ/T10186-91Y73
2.9. IEC68-2-14
2.10. GB/T 2424.13-2002
2.11. GB/T 2423.22-2002
2.12. QC/T17-92
2.13.EIA 364-32
3. Company Infomation
KOMEG is a well-established Environmental testing equipment company, with over 26 years’ experience in developing, and building a range of specialized Instruments. These include climatic test chambers, thermal shock test chambers, walk-in chambers, burn-in rooms,aging test chambers, drying ovens, salt spray testers and medical laboratory equipment etc.
Now our products are widely used in some well-known companies, such as , UL NZ, STC in Hong Kong, and in many universities in China, such as BUAA, PKU, etc.
4. Specifications
| ALL THE MODEL OF THIS KIND PRODUCTS IN THE BLANKET:(thermal shock test instrument/ machine/ chamber/ equipment) | ||||||||||||||||
| Specifications | ||||||||||||||||
| Model | TST-A Series | TST-B Series | TST-D Series | |||||||||||||
| 72A | 130A | 226A | 360A | 500A | 72B | 130B | 226B | 360B | 500B | 72D | 130D | 226D | 360D | 500D | ||
| Test weight(KG) | 410 | 520 | 610 | 710 | 810 | 410 | 520 | 610 | 710 | 810 | 410 | 520 | 610 | 710 | 810 | |
| Interior size | W(mm) | 560 | 670 | 770 | 830 | 710 | 560 | 670 | 770 | 830 | 710 | 560 | 670 | 770 | 830 | 710 |
| H(mm) | 410 | 520 | 610 | 770 | 860 | 410 | 520 | 610 | 770 | 860 | 410 | 520 | 610 | 770 | 860 | |
| D(mm) | 300 | 410 | 510 | 610 | 710 | 300 | 410 | 510 | 610 | 710 | 300 | 410 | 510 | 610 | 710 | |
| Basket size | W(mm) | 300 | 410 | 510 | 730 | 610 | 300 | 410 | 510 | 730 | 610 | 300 | 410 | 510 | 730 | 610 |
| H(mm) | 300 | 410 | 510 | 510 | 730 | 300 | 410 | 510 | 510 | 730 | 300 | 410 | 510 | 510 | 730 | |
| D(mm) | 5 | 5 | 5 | 5 | 10 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 10 | |
| Low Temp. chamber | -55 °C~ -10°C | -70 °C~ -10°C | -80 °C~ -10 °C | |||||||||||||
| Pre-cooling time | +20 °C~ -55°C ,Within 60 min | +20°C~ -70 °C ,Within 60 min | +20 °C~ -80°C ,Within 60 mins | |||||||||||||
| Test. chamber | -40 °C~ +150°C | -55°C~ +150°C | -60°C~ +150 °C | |||||||||||||
| High Temp. chamber | +60 °C~ +200 °C | |||||||||||||||
| Pre-heating time | +60°C~ +200°C ,Within 25 min | |||||||||||||||
| Recovery time | High-Temp Exposure 30 min | |||||||||||||||
| Low-Temp Exposure 30 min | ||||||||||||||||
| Recovery time within 5 min | ||||||||||||||||
| Safety device | within 10 seconds | |||||||||||||||
| Standard accessory | No fuse breaker, over pressure over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection |
|||||||||||||||
| Interior material | Cable port(portΦ50mm)*1, shelves*2 | |||||||||||||||
| Exterior material | Stainless steel plate ( SUS 304 ) | |||||||||||||||
| Insulation material | Baked painting steel or stainless steel(SUS304) | |||||||||||||||
| Refrigeration system | Rigid polyurethane Foam glass fiber wool | |||||||||||||||
| Water Cooled | ||||||||||||||||
| Controller | Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant ( HFC-507 and HFC-23 ) |
|||||||||||||||
| Panel:7-inch LCD Touch panel , Chinese or English display selectable | ||||||||||||||||
| Operation model:Program or fix point running | ||||||||||||||||
| Memory capacity:120programs,1200steps , all repeat 999cycles , part repeat 99 cycles. | ||||||||||||||||
| Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||||||||||||
| Ambient Temp. | Input:Temp.:pt-100 Humidity:pt-100 or ~ 5V DCV | |||||||||||||||
| Power | +5 °C~ +35 °C (41 ~ 95°F) | |||||||||||||||
| Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | ||||||||||||||||

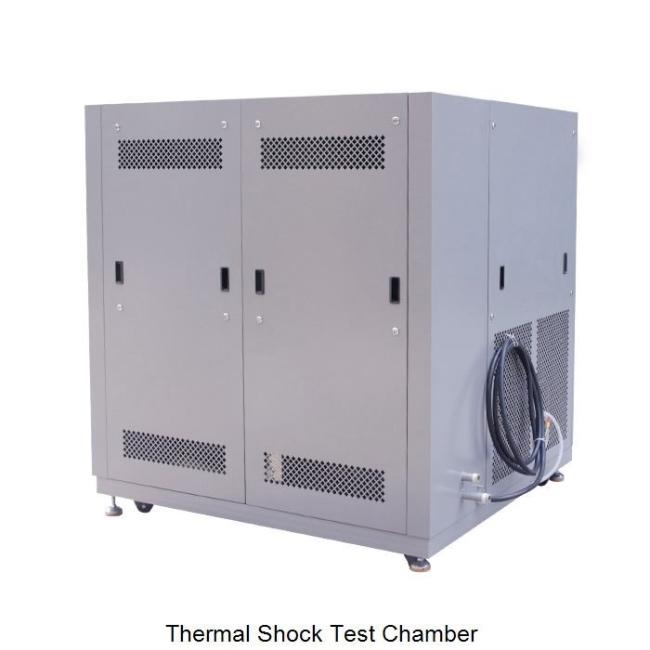

5. About thermal shock test chamber:
6. More Info About KOMEG's Products You Need to Know

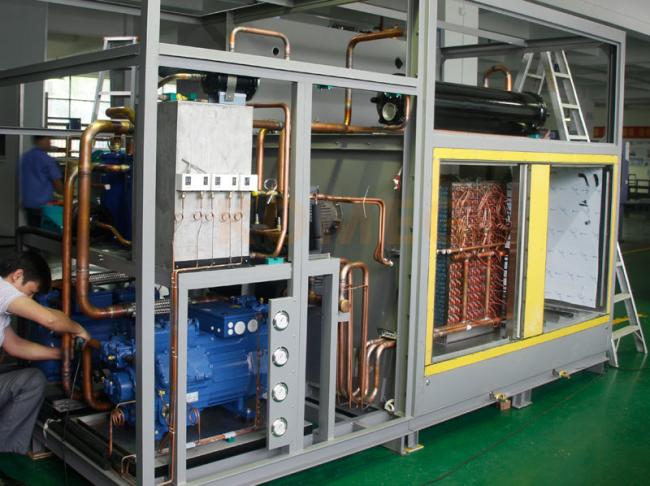

* Refrigeration system characteristics
1. Import compressor, reduce the operating noisy, better performance;
2.The unit module standardization. Set up the bend language manual, ensure that make unity. Cooling line adopts advanced bend language process, ensure refrigeration accurate, uniform;
3.The operation of refrigeration system adopt intelligent control, power consumption is small, all refrigeration parts adopt international famous brand, quality assured for long-term stable operation.
4.Modular making, ease to install, repair and maintenance; Air-cooled condenser of refrigeration unit add the filter net, ensue the normal operation;
5.Intelligent cooling capacity adjustment, good control effect. Wide range of load.
* Structure Features
Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing
Inner wall material:Stainless Steel Plate SUS304
Body insulation material:Rigid polyurethane Foam + glass fiber
Door insulation material:Rigid Polyurethane Foam + Glass fiber
* Material:
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
7.Tradeshow
8. Packaging:
Climatic thermal shock test chamber are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.
Tag: temperature shock test Chamber, thermal shock chamber
