3-zone Environmental Thermal Shock Chamber with high Performance Capacity

Price Negotiable

Price: Negotiation

MOQ: 1 piece Thermal Shock test Chamber

Delivery Time: 50 days upon your deposit

Brand: KOMEG

Product Description

3-zone Environmental Thermal Shock Testing Chamber with high Performance Capacity

1. Application:

KOMEG thermal shock chambers meet the demands of today's environmental stress screening with proven performance in installations around the world. Our direct transfer method between hot and cold is an economical method to achieve rapid part temperature change for ESS or thermal shock.

Thermal shock test chamber is requisite testing equipment in metal, plastic, rubber, electronics and other industries. It is used for testing the material structure or composite material’s tolerance degree when exposed instantly in extremely high temperature and extremely low temperature environment continuously, so that whose chemical or physical damage due to thermal expansion and contraction can be detected in shortest time.

Standards Met and Implemented:

GB/T2423.1.2
GB10592-89
GJB150

2. Specifications:

3 Zone Thermal Shock Test Chamber
Specifications		Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available
Model		KTS-A Series
		72A	100A	150A	200A	252A	300A	480A
Interior size	W(mm)	450	500	600	670	700	800	800
	H(mm)	400	450	500	600	600	600	800
	D(mm)	400	450	500	500	600	650	750
Exterior size	W(mm)	1490	1540	1640	1720	1750	1850	1850
	H(mm)	1790	1840	1890	2000	2000	2000	2200
	D(mm)	1600	1700	1830	1850	1930	1980	2500
Test weight(KG)		5	10	12	15	18	20	20
Low Temp. chamber		-55ºC~-10ºC
Pre-heat time		+20ºC~-55ºC ,Within 60 min
Test. chamber		-40ºC~+150ºC
High Temp. chamber		+60ºC~+200ºC
Pre-heat time		+60ºC~+200ºC ,Within 20 min
Recovery time		High-Temp Exposure 30 min
		Low-Temp Exposure 30 min
		Recovery time within 5 min
Safety device		No fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessory		Cable port(portΦ50mm)1, shelves2
Interior material		Stainless steel plate(SUS 304)
Exterior material		Baked painting steel or stainless steel(SUS304)
Insulation material		Rigid polyurethane Foam+glass fiber wool
Refrigeration system		Water Cooled
		Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)
Controller		Panel:7-inch LCD Touch panel,Chinese or English display selectable
		Operation model:Program or fix point running
		Memory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles.
		Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
		Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV
Ambient Temp.		+5ºC~+35ºC
Power		AC 380±10%50Hz ,3 phase 4 wires +Ground Wires

3 Zone Thermal Shock Test Chamber
Specifications		Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available
Model		KTS-B Series
		72B	100B	150B	200B	252B	300B	480B
Interior size	W(mm)	450	500	600	670	700	800	800
	H(mm)	400	450	500	600	600	600	800
	D(mm)	400	450	500	500	600	650	750
Exterior size	W(mm)	1490	1540	1640	1720	1750	1850	1850
	H(mm)	1790	1840	1890	2000	2000	2000	2200
	D(mm)	1600	1700	1830	1850	1930	1980	2500
Test weight(KG)		5	10	12	15	18	20	20
Low Temp. chamber		-70ºC~-10ºC
Pre-heat time		+20ºC~-70ºC ,Within 60 min
Test. chamber		-55ºC~+150ºC
High Temp. chamber		+60ºC~+200ºC
Pre-heat time		+60ºC~+200ºC ,Within 20 min
Recovery time		High-Temp Exposure 30 min
		Low-Temp Exposure 30 min
		Recovery time within 5 min
Safety device		No fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessory		Cable port(portΦ50mm)1, shelves2
Interior material		Stainless steel plate(SUS 304)
Exterior material		Baked painting steel or stainless steel(SUS304)
Insulation material		Rigid polyurethane Foam+glass fiber wool
Refrigeration system		Water Cooled
		Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)
Controller		Panel:7-inch LCD Touch panel,Chinese or English display selectable
		Operation model:Program or fix point running
		Memory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles.
		Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
		Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV
Ambient Temp.		+5ºC~+35ºC
Power		AC 380±10%50Hz ,3 phase 4 wires +Ground Wires

3 Zone Thermal Shock Test Chamber
Specifications		Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available
Model		KTS-D Series
		72D	100D	150D	200D	252D	300D
Interior size	W(mm)	450	500	600	670	700	800
	H(mm)	400	450	500	600	600	600
	D(mm)	400	450	500	500	600	650
Exterior size	W(mm)	1490	1540	1640	1720	1750	1850
	H(mm)	1790	1840	1890	2000	2000	2000
	D(mm)	1600	1700	1830	1850	1930	1980
Test weight(KG)		5	10	12	15	18	20
Low Temp. chamber		-80ºC~-10ºC
Pre-heat time		+20ºC~-80ºC ,Within 60 mins
Test. chamber		-65ºC~+150ºC
High Temp. chamber		+60ºC~+200ºC
Pre-heat time		+60ºC~+200ºC ,Within 20 min
Recovery time		High-Temp Exposure 30 min
		Low-Temp Exposure 30 min
		Recovery time within 5 min
Safety device		No fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection
Standard accessory		Cable port(portΦ50mm)1, shelves2
Interior material		Stainless steel plate(SUS 304)
Exterior material		Baked painting steel or stainless steel(SUS304)
Insulation material		Rigid polyurethane Foam+glass fiber wool
Refrigeration system		Water Cooled
		Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)
Controller		Panel:7-inch LCD Touch panel,Chinese or English display selectable
		Operation model:Program or fix point running
		Memory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles.
		Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit
		Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV
Ambient Temp.		+5ºC~+35ºC
Power		AC 380±10%50Hz ,3 phase 4 wires +Ground Wires

3. Thermal Shock Test Chamber Features

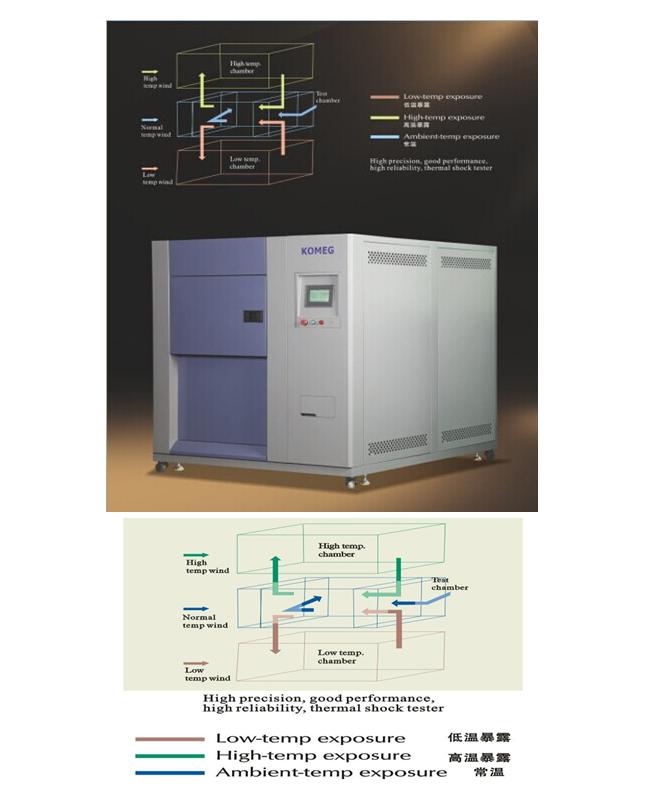

1.3-zone design: high temperature zone, cold temperature zone, and testing zone.
2.The test specimens under test are stationary in the testing zone.
3.Touch-control operation interface for ease of use.
4.Max.999H and max.9999 cycles for high or low temperature shock for thermal shock test chamber.
5.Automatic cycling shock or/and manual selective shock are available.
6.Water cooled, binary cooling system for quick cooling effect.
7.Japan imported Seamless Welding Machine, especially for copper pipe welding

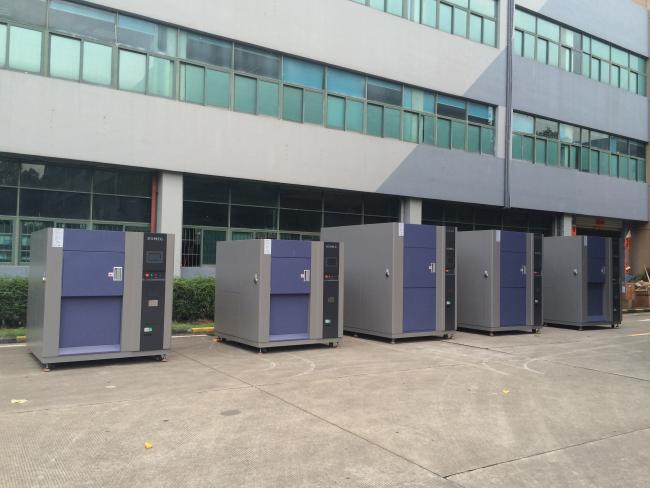

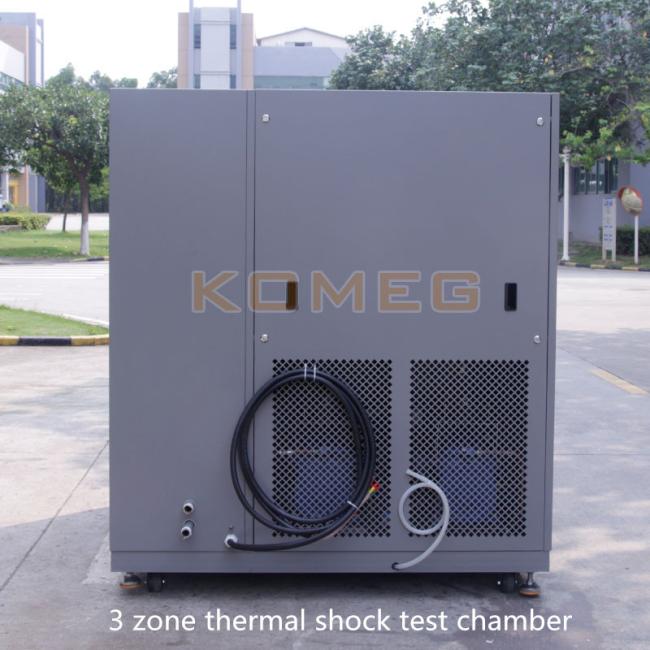

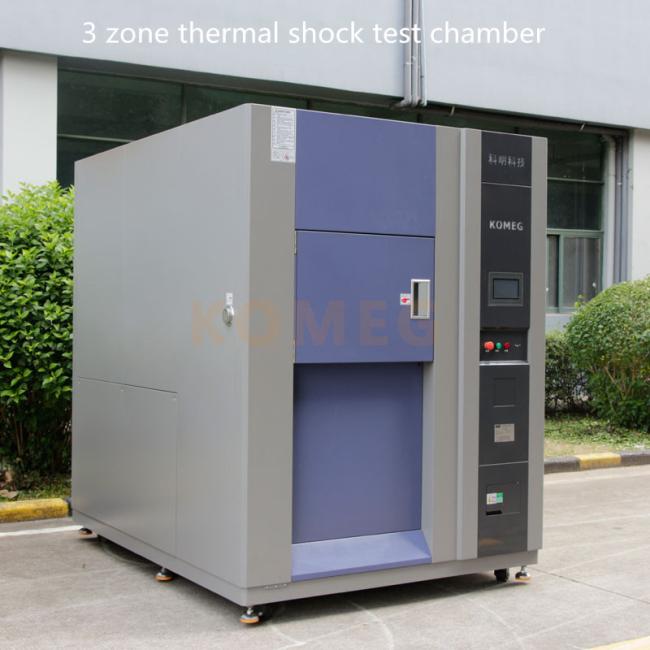

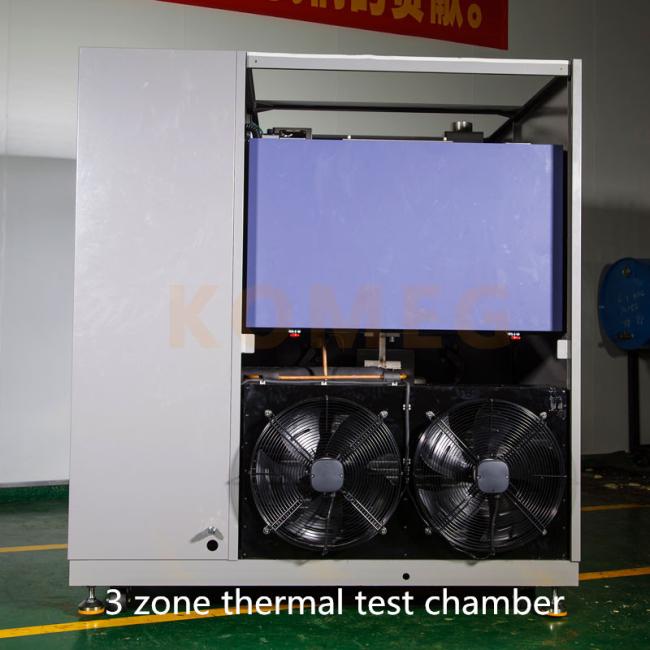

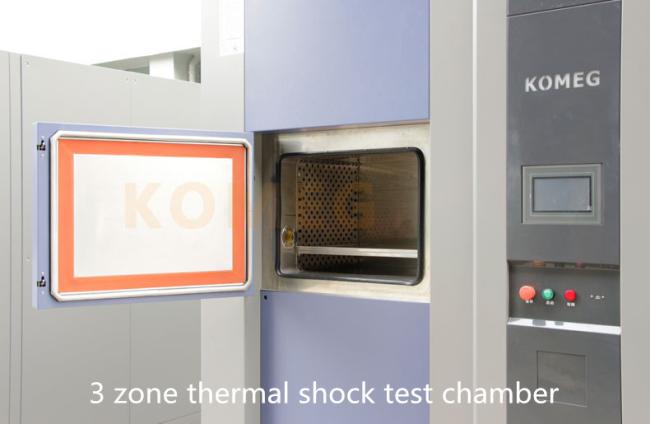

4. About 3 zone Thermal Shock Test Chambar

5.Tradeshow

6. Packaging:

Climatic thermal shock test chamber are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.
