304 Stainless Steel Reliability Climatic Testing Chamber ISO Certification

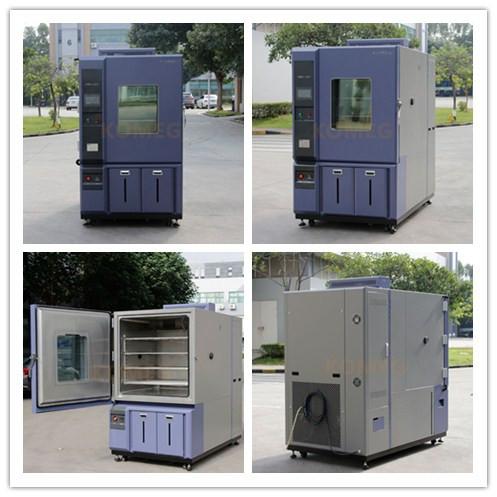

Reliability Climatic Temp. and Humidity Chamber KOMEG KMH-1000S
Reliability climatic temperature Humidity test chamber also called programmable temperature humidity test chamber. It always used in testing the effects of specified environmental conditions on industrial products, electronic devices and components, materials, as well as biological items.
For example:
1) As environmental conditions for conducting testing of specimens
2) As preparation of test specimens for further physical tests or chemical tests
3) As a stand-alone test for environmental effects on test specimens

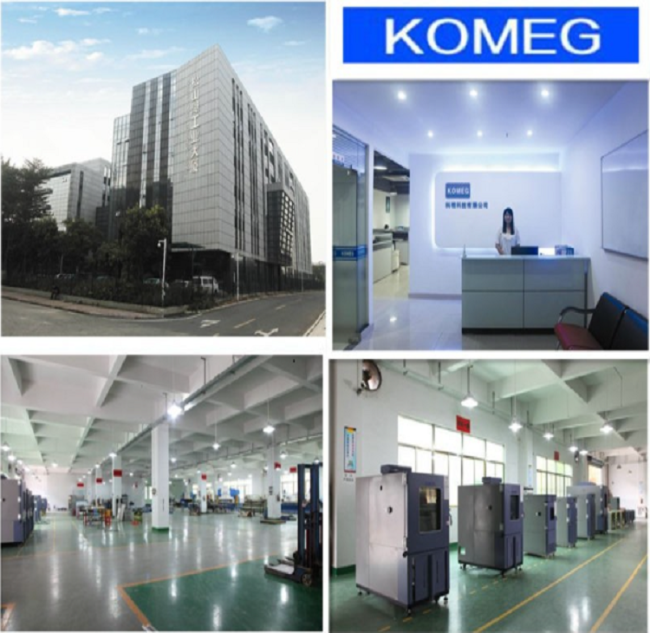

KOMEG is a company well know for Environmental test chamber, with over 26 years’ experience in developing, and building a range of specialized Instruments.
The main products in KOMEG include environmental test chamber, thermal shock test chamber, walk-in test chamber, drive-in test chamber, burn-in rooms,aging test chamber, drying ovens, salt spray test chamber and medical laboratory test chamber etc.
Now our products are widely used in some well-known companies,
such as LG, HUAWEI, FOXCONN, , UL NZ, SUZUKI, YUNORI, STC in Hong Kong, and in many universities in China, such as BUAA, PKU, etc.
KMH-S series
| Model | KMH-S series | |||||
| 150S | 225S | 408S | 800S | 1000S | ||
| Temp. range | -70°C ~150°C | |||||
| Interior sizel | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 280 | 330 | 450 | 550 | 650 | |
| Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
| Heat up time | -70°C ~+100°C ,within 60 min | |||||
| Pull down time | +20°C ~-70°C , within 80 min | |||||
| Humidity Range | 20~98%R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5%R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ~+35°C | |||||
| Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
Standard Met and Implemented:
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method 6
GJB150.4-1986 test at low temperature
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
MIL - STD - 202G - 103B humidity test
IEC60068-2-30 humidity temperature cycle
GB/T2423.3 constant humidity heat test method
About the package, we have standard inner box and carton for the packing. Especially for the samples,
we will pack them in much safe to guarantee that you can receive a please.
Generally speaking, its LCL shipped by sea, and we support TNT,FedEx,UPS,DHL.for BL and documents sending.
