Instruments Measuring Temperature Shock Test Chamber For Environmental Testing
Instruments Measuring 3-zone Thermal Shock Testing Chamber For Industrial
Thermal Shock Testing Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment , that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics ... and other materials can be used as a basis to improve their products or reference.
Material:
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool

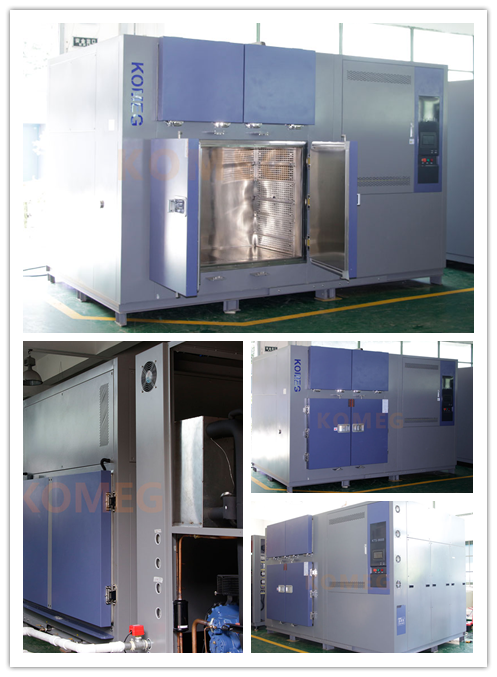

| 3 Zone Thermal Shock Test Chamber | ||||||||
| Specifications |
Note:1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||||
| Model | KTS-B Series | |||||||
| 72B | 100B | 150B | 200B | 252B | 300B | 480B | ||
| Interior size | W(mm) | 450 | 500 | 600 | 670 | 700 | 800 | 800 |
| H(mm) | 400 | 450 | 500 | 600 | 600 | 600 | 800 | |
| D(mm) | 400 | 450 | 500 | 500 | 600 | 650 | 750 | |
| Exterior size | W(mm) | 1490 | 1540 | 1640 | 1720 | 1750 | 1850 | 1850 |
| H(mm) | 1790 | 1840 | 1890 | 2000 | 2000 | 2000 | 2200 | |
| D(mm) | 1600 | 1700 | 1830 | 1850 | 1930 | 1980 | 2500 | |
| Test weight(KG) | 5 | 10 | 12 | 15 | 18 | 20 | 20 | |
| Low Temp. chamber | -70ºC~-10ºC | |||||||
| Pre-heat time | +20ºC~-70ºC ,Within 60 min | |||||||
| Test. chamber | -55ºC~+150ºC | |||||||
| High Temp. chamber | +60ºC~+200ºC | |||||||
| Pre-heat time | +60ºC~+200ºC ,Within 20 min | |||||||
| Recovery time | High-Temp Exposure 30 min | |||||||
| Low-Temp Exposure 30 min | ||||||||
| Recovery time within 5 min | ||||||||
| Safety device | No fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protection | |||||||
| Standard accessory | Cable port(portΦ50mm)*1, shelves*2 | |||||||
| Interior material | Stainless steel plate(SUS 304) | |||||||
| Exterior material | Baked painting steel or stainless steel(SUS304) | |||||||
| Insulation material | Rigid polyurethane Foam+glass fiber wool | |||||||
| Refrigeration system | Water Cooled | |||||||

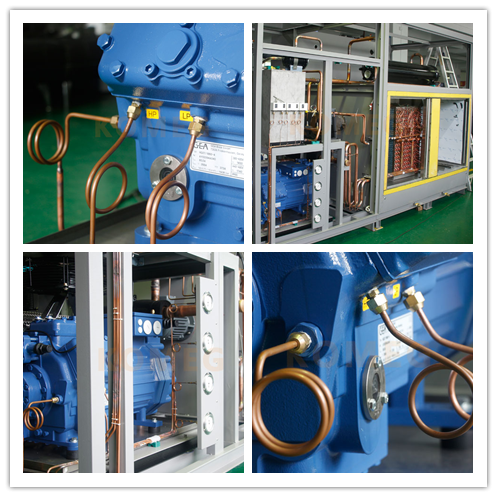

| Semi-hermetic compressor, cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23) | ||||||||
| Controller | Panel:7-inch LCD Touch panel,Chinese or English display selectable | |||||||
| Operation model:Program or fix point running | ||||||||
| Memory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles. | ||||||||
| Accuracy:Temp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digit | ||||||||
| Input:Temp.:pt-100 Humidity:pt-100 or ~5V DCV | ||||||||
| Ambient Temp. | +5ºC~+35ºC | |||||||
| Power | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | |||||||
Structure Features
Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing
Inner wall material:Stainless Steel Plate SUS304
Body insulation material:Rigid polyurethane Foam + glass fiber
Door insulation material:Rigid Polyurethane Foam + Glass fiber
|
Packing
|
|
|
Size
|
123 (L) * 456 (W) * 789 (D)
|
|
Weight
|
1.2 T
|
|
Packing Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special requirments.
|
Climatic thermal shock test chamber are covered with air bubble film before put them into the strong plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.
* If you face any problems in future during testing process, we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video, English operation muanual and video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
