Digital Display Lab Scale Industrial Drying Ovens Double Door For Stability Test
Double Door Digital Display Lab Scale Drying Oven For Stability Test Factory Sale Directly
This series of reliability test for industrial products / production, with the features of high temperature control precision and wide control range, performance indicators in line with GB5170.2.3.5.6-95 "electric and electronic products environmental testing equipment Inspection methods for basic parameters of high-temperature test equipment" and meet the standard.
Specification
| Specifications of drying oven | |||||
| Model | KOV-50 | KOV-100 | KOV-200 | KOV-290 | KOV-500 |
| Interior size (W*H*D)mm | 400*350*350 | 450*500*450 | 600*600*600 | 600*950*500 | 800*1050*600 |
| Exterior size (W*H*D)mm | 1010*650*760 | 1110*800*1100 | 1260*900*1100 | 870*1590*640 | 1160*1760*880 |
| Capacity(KVA) | 3.5 | 3.5 | 4.5 | 4.5 | 6 |
| Power | AC220V±10% 1Φ 50Hz/60Hz | AC 380V±10% 3Φ4wire 50Hz/60Hz | |||
| Temp. range | 50 ºC~ 200 ºC( 300 ºC) | ||||
| Temp. constancy | ±1.0 ºC | ||||
| Temp. uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) | ||||
| Heat up time | 50 ºC to 200 ºC within 50 min | ||||
| Interior material | Stainless steel plate | ||||
| Exterior material | Painted Stainless steel plate | ||||
| Insulation material | Glass wool | ||||
| Safety devices | No fuse breaker, over temp protection, ceramic fuse | ||||
| Accessories | Recorder, insolating layer | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||
| specifications | ||||
| Model | KOV-600 | KOV-720 | KOV-1000 | KOV-1800 |
| Interior size (W*H*D)mm | 1000*1000*600 | 900*1000*800 | 1000*1000*1000 | 1600*1400*600 |
| Exterior size (W*H*D)mm | 1360*1720*880 | 1300*1750*1000 | 1300*1750*1000 | 1600*1940*1200 |
| Capacity(KVA) | 6.5 | 7.5 | 8.5 | 9.5 |
| Power | AC 380V±10% 3Φ4wire 50Hz/60Hz | |||
| Temp. range | 50 ºC~ 200 ºC( 300 ºC) | |||
| Temp. constancy | ±1.0 ºC | |||
| Temp. uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) | |||
| Heat up time | 50 ºC to 200 ºC within 50 min | |||
| Interior material | Stainless steel plate | |||
| Exterior material | Painted Stainless steel plate | |||
| Insulation material | Glass wool | |||
| Safety devices | No fuse breaker, over temp protection, ceramic fuse | |||
| Accessories | Recorder, insolating layer | |||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations |
||||
South Korea imported thermostat controller ST-570
* Achieve high accuracy (0.1%), high-performance
* High resolution (0.1%), high performance
* Support multi-input (T / C, RTD, DCV)
* Can complete simultaneously output multiple output (Max 4 points)
* Simple parameter setting, text available
* Support suppression system (Overshoot) temperature function
* Alarm output 1 point
* RUN/STOP performance
* Default operation start and termination functions
* Operation screen displays of the auxiliary output status
* Each interval input adjustment function (Max 4 Zone)
*Achieve control of heating, cooling function
* PID auto-adjustment function (AT Gain)
* Support for multiple communication protocols (Modbus, etc.)
* Achieve high-quality, high reliability (CE, CUL, ISO, etc.)

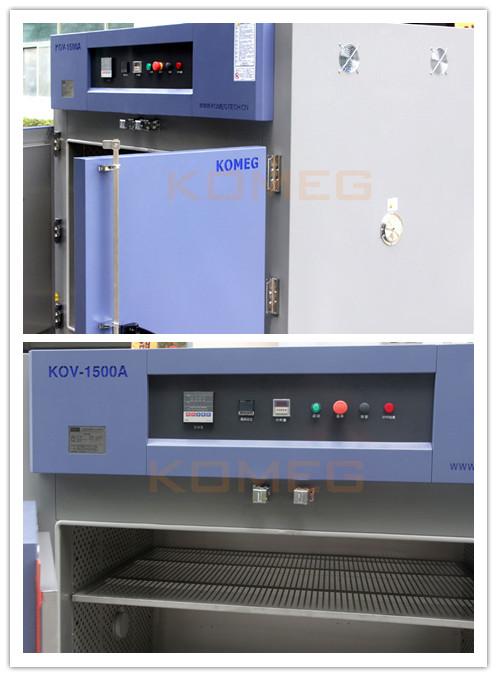

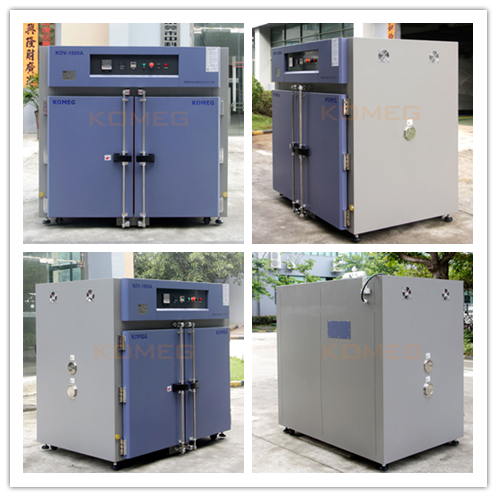

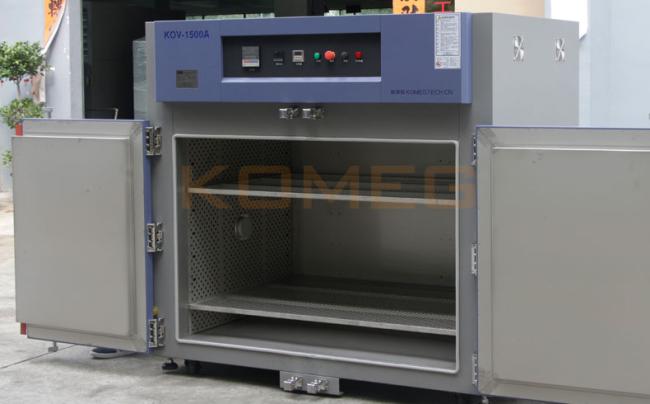

Product detial
Our service
After-sale Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)
