Constant Temperature & Humidity Chamber Auto Temperature Testing Equipment
Constant Temperature & Humidity Testing Chamber/ Machine In Machinery Price
Widely used in scientific research research,pharmaceutical,foodstuff,materials science,cosmetics,tobacco,microbe,chemical,electronics and other fields.
Can provide a stable temperature and humidity environment,simulate various climatic conditions,especially used in sample tests,shelf life tests,long-term experiments and cultivation of plants,seeds and microorganisms;
| Environmental Temperature and Humidity Chamber | ||
| Secifications ( at +20ºC room temp. Or+25ºC water temp with empty load) | ||
| Model | KMH-R series | |
| 225R | ||
| Temp. range | -20ºC~150ºC | |
| Interior sizel | W(mm) | 700 |
| H(mm) | 700 | |
| D(mm) | 480 | |
| Exterior size | W(mm) | 980 |
| H(mm) | 1890 | |
| D(mm) | 1460 | |
| Power(KW) | 6 | |
| Weight(KG) | 280 | |
| Humidity uniformity | ±3.0%R.H | |
| Heat up time | -20ºC~+100ºC,within 35 min | |
| Pull down time | +20ºC~-20ºC, within 45 min | |
| Standard accessories | Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m | |
| Safety device (standard) | No fuse breaker, over pressureover heat and over current protection for compressor, | |
| Over temp. protect, over load protect of blower, dry heat protection | ||
| Control System | Balanced Temperature & Humidity Control System | |
| Refrigeration system | Air Cooled (Water Cooled Type is option) | |
| Hermetic compressor,Single stage refrigeration system | ||
| CFC-Free refrigerant(HFC-507/HFC-23) | ||
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | |
| Operation model :Program or fix point running | ||
| Memory capacity :120programs,1200steps, | ||
| All repeat 999 cycles, part repeat 99 cycles | ||
| Humidity Range | 20~98%R.H | |
| Temp. constancy | ±0.5ºC | |
| Humidity constancy | ±2.5%R.H | |
| Temp. uniformity | ±2.0ºC | |
| Interior material | Stainless Steel Plate(SUS 304) | |
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |
| Ambient Temp. | +5ºC~+35ºC | |
| Wiring method | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires | |
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | ||
1. Use the high precision microcomputer touch temperature and humidity controller with high stability
of platinum resistan-ce to temperature and wind speed in the circulatory system of temperature and humidity
test.
2. Control temperature&humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant
temperature & humidity environment.

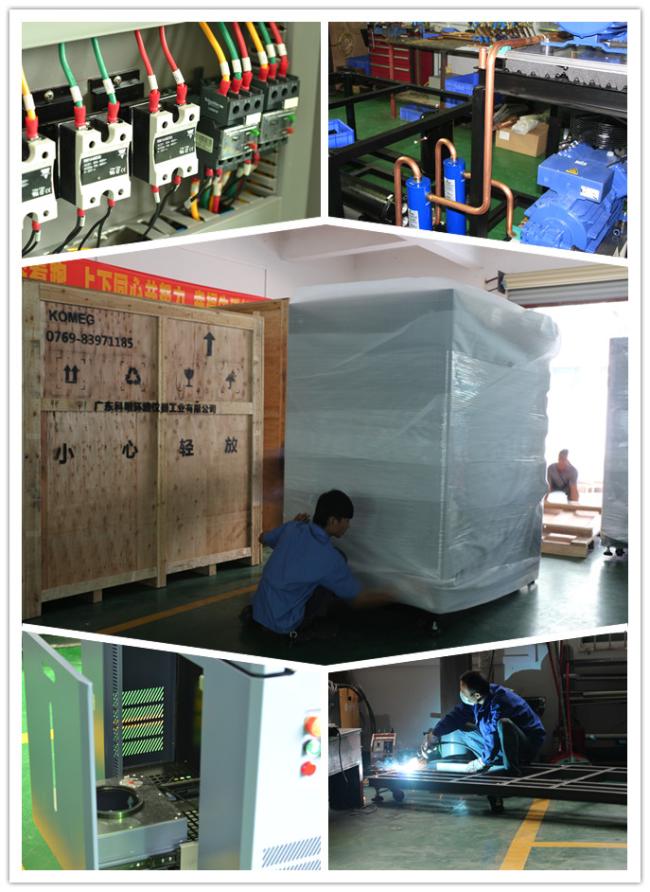

All shipments are use of plywood fixed in the frame,to ensure product safely arrived;
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
