Environmental / Climatic Test Chamber Stainless Steel 304 1 Year Warranty
Quality Guaranteed Climatic Temperature And Humidity Test Chamber Price
Quality Guaranteed Climatic Temperature And Humidity Test Chamber Price is applied to test the capabilities of heat-resistance, cold-resistance of materials. It's mainly used in testing the adaptability of electronics, electrical appliances, food, automobile, rubber and plastic, metal and other materials or finished products, components in the high and low temperature environment when storage, transport and using. You can select from a variety of sizes, ranges, and options to meet your specific testing requirements.
| Model | KMH-L series | |||||
| 150 L | 225 L | 408 L | 800 L | 1000 L | ||
| Temp. range | -40°C ~150°C | |||||
| Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 250 | 300 | 420 | 530 | 600 | |
| Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
| Heat up time | -40°C ~+100°C ,within 45 min | |||||
| Pull down time | +20°C ~-40°C , within 60 min | |||||
| Humidity Range | 20~98%R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5%R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ~+35°C | |||||
| Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||

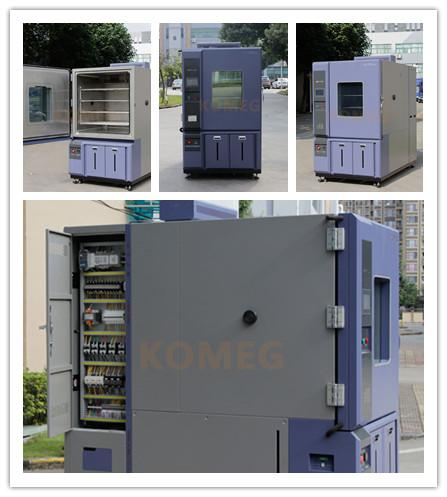

Climatic Temperature And Humidity Test Chamber
1. Manufacturer sale directly, we will offer a best price for you.
2. Strict quality control in production.
3. Warranty for 12 months.
4. Customization of non-standard models are welcomed.
- We have standard inner box and carton for the packing.
- If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
