Electronics Machine Rapid Temperature Testing Chamber Semi - Hermetic Compressor

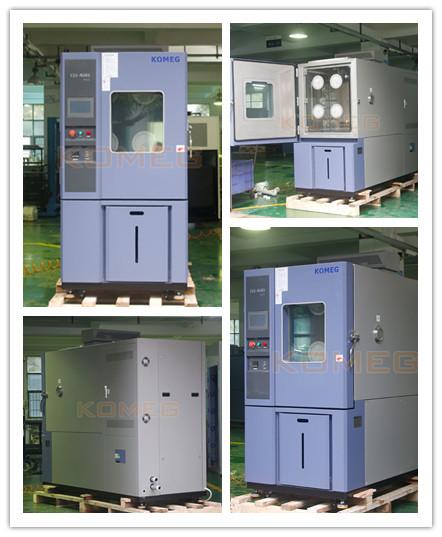

Electronics Machine/ Rapid Temperature Change Testing Chamber Price
Electronics Machine/ Rapid Temperature Change Testing Chamber Price can be used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is widely used in quality inspection for all types of electronic products, electric appliance, communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries. By testing the material or product under temperature humidity environment, to determine the electrical, electronics ‘adaptability for environmental temperature and environment humidity (especially in the products‘ changes of electric capability and mechanical properties ), can also be used to inspect a sample tolerance with corrosion.
| Specifications | |||||||
| Model | ESS-SL | ||||||
| 225SL5 | 225SL10 | 408SL5 | 408SL10 | 1000SL5 | 1000SL10 | 1000SL15 | |
| Working Chamber Volume(L) | 225 | 408 | 1000 | ||||
| Temp Rate of Change( ℃/Min) | 5 | 10 | 5 | 10 | 5 | 10 | 15 |
| Performance | -70℃~+100℃ | ||||||
| Rapid Temp Change -55℃~+85℃ Full Linear Control | |||||||
| Humidity Constancy | ±0.5℃ | ||||||
| Temp Constancy | ±3.0℃ | ||||||
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated ) Stainless Steel | ||||||
| Interior Material | Stainless Steel Plate(SUS 304) | ||||||
| Insulation Material | Rigid Polyurethane Foam | ||||||
| Safety Devices | over pressure,over heat and over current protection for compressor,over temp. protection, | ||||||

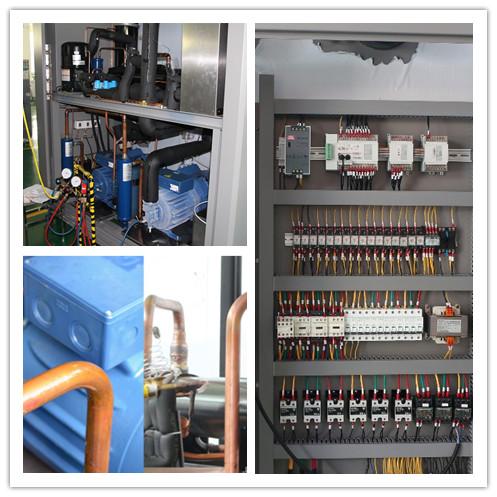

| Compressor | Semi-Hermetic Compressor | ||||||
| Cooling Mode | Water Cooled | ||||||
| Control system | Balanced Temperature & Humidity Control System(BTC type) | ||||||
| Heater | Iron-chrome wire heater | ||||||
| Blower | Centrifugal Blower | ||||||
| Observation Window | Glass incorporating heat generator | ||||||
| Temp Sensor | Pt-100 | ||||||
| Controller | Touch screen programmable controller | ||||||
| Ambient Temp. | +5℃~+35℃ | ||||||
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire | ||||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||||||
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
- We have standard inner box and carton for the packing.
- If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
