150L Programmable Temperature Humidity Chamber Adaptability And Standard Testing


Application
This product can be used in the following industry areas:
material, research institution, inspection,electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building  and quarantine bureau, university etc.

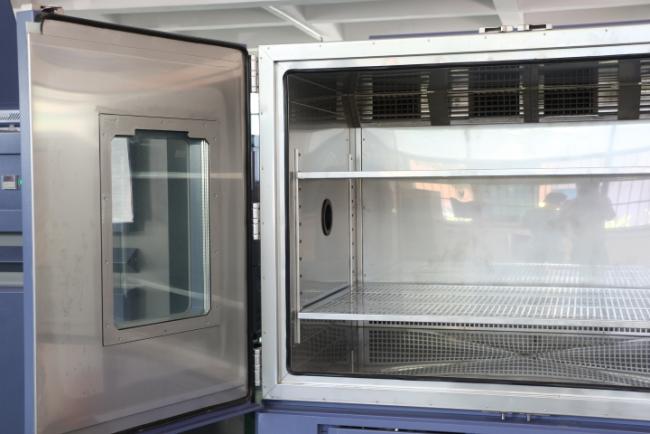

1. High - precision Floor Temperature And Humidity Chamber

High-quality and multi-function temperature test equipment is ideal for large test pieces.
Our products are equipped with user-friendly, comprehensive programming interface, through USB data retrieval and other functions.
Other user options are available, including rooftop ports and water cooling units.


2.The Type Of The Temperature Chambers

Performing high and low extreme temperature tests can change the mechanical and electrical properties of the product, such as component brittleness, lubricant viscosity, conductivity, and oscillator frequency. TRaC temperature test can simulate the temperature limit from -70 ° C to + 180 ° C (and up to + 500 ° C constant) cycle temperature limit.


3. Limits Of Test Chambers

Test room temperature threshold for the existence of reasons:
The test chamber typically has a wire heater made of a material called Nichrome. By placing a continuous ring of heater wires, a greater amount of heat is generated. The results look much like the inside of the toaster. The fan circulates the air through the heater, so the sample in the room is not exposed to radiant heat. It is very easy to add the heater and increase the speed and / or the upper limit of the chamber.
Our products usually have a high temperature limit at 200 ° C.
Here is why the high temperature limit of the room exists:
150 ° C: For two reasons, we may limit a chamber to 150 ° C. First, there may be restrictions on the materials used indoors. Secondly, for extremely fast chambers, we can limit the high temperature to avoid accidental tripping overheat protection devices.
170-180 ° C: Most models are stopped within this temperature range. There is a risk of burning oil in the cooling and cooling coil.


4. Parameter Specifications:




5. Features:

1. Customers can use the interface, integrated data logger and automatic control software programming and recording a wide range of options.
2. Corrosion resistant SUS # 304 stainless steel for studio and housing.
3. The concept of heating / cooling for specific products for accurate and uniform temperature control independent of chamber volume and load.
4. The temperature of the climate chamber is measured according to the relevant standard.
5. Each room has a safety test prior to work and has a CE test standard.
6. The cavity size and temperature range can be customized according to your requirements.
Fast and precise temperature control, no evaporator-dependent dry samples, no icing of the cooling unit, no dehumidification of the studio.
7. One year warranty, except for wear parts.
