1500L Touch Screen Environmental Test Chamber Temperature Humidity Test Machine
1500L Touch Screen Machinery Equipment / Temperature Humidity Test Machine
Temperature and humidity environmental test machine artificially replicates the conditions under which machinery, materials, devices or components might be exposed. It is also used to accelerate the effects of exposure to the environment, sometimes at conditions not actually expected.
1. Manufacturer sale directly, we will offer a best price for you.
2. Strict quality control in production.
3. Warranty for 12 months.
4. Customization of non-standard models are welcomed.
(1) Accurate temperature heating and cooling control
(2) Highly temperature uniformity distribution
(3) Wide selection control range for temperature and humidity
(4) Available controled via computer
| Model | KMH-L series | |||||
| 150 L | 225 L | 408 L | 800 L | 1000 L | ||
| Temp. range | -40°C ~150°C | |||||
| Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 | |
| D(mm) | 460 | 480 | 800 | 800 | 1000 | |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 | |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 250 | 300 | 420 | 530 | 600 | |
| Humidity uniformity | ±3.0%R.H | ±5.0%R.H | ||||
| Heat up time | -40°C ~+100°C ,within 45 min | |||||
| Pull down time | +20°C ~-40°C , within 60 min | |||||
| Humidity Range | 20~98%R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5%R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ~+35°C | |||||
| Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
Detail of Simulation Environmental Temperature Humidity Test Machine

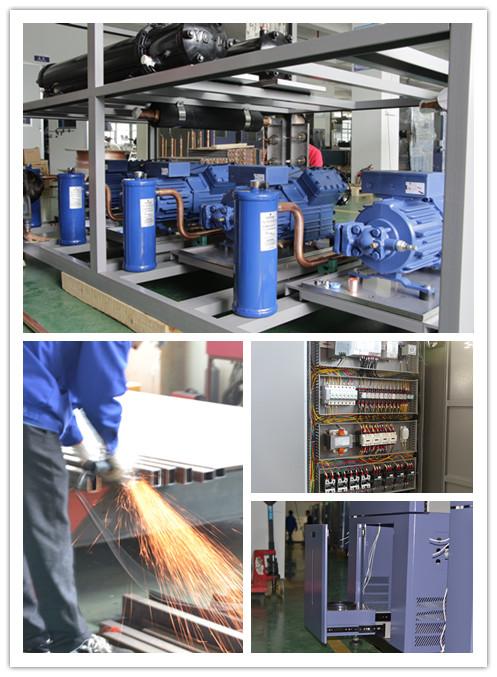

Detail of Process
1. We have standard inner box and carton for the packing.
2. If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
