Lab KMH -408L Simulation Environmental Testing Equipment Programmable With CE Certification

Application

Temperature and Humidity Environmental Test Chamber is able to provide rapid product temperature change rates and use varying levels of relative humidity to locate design problems prior to shipping your products, improving product quality and reliability.

The KMH-L range is a -40°C to +150°C range of environmental chambers available in 5 sizes from
36L up to 1500L. This model features a large 7” full color LCD touch screen controller capable of
up to 120 programs or 1200 cycle steps. The programmable controller is easy to use and clear to
read making operation simple and quick and designed with ease-of-use a priority.
The refrigeration system uses world known components and combines reliability with energy
efficiency. The compressor is Tecumseh or Bock and valves are from Danfoss. The refrigerant is
the environmentally friendly R404a or R23. All electrical components meet and exceed Australian
Standards. Construction is from powder coated steel and a high quality 304 stainless steel liner.
The door features a large double glazed viewing window with a fluorescent light to
allow the operator to easily see inside the chamber and inspect samples without
having to open the door. Both sides of the chamber have a 50mm diameter port
hole that can be sealed when not in use.

Standard configuration

● Stainless steel exterior

● Energy-efficient refrigeration with exclusive electronic expansion valve system

● Specialized humidity generation and control

● Unique thermal break construction for extreme testing

● Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m
● No fuse breaker, over pressure,over heat and over current protection for compressor, Over temperature protection, over load protect of blower, dry heat protection

Features

KOMEG Enviromental Chambers
• Five sizes available starting at 150L
• -70°C ~ +150°C models available
• 7” colour touch screen programmable controller
• Heavy duty castors to allow easy movement
• Large viewing window with fuorescent light
• 50mm diameter port holes
• Refrigeration system uses world known reliable components

Optional accessories

●Cable Port: Φ100mm cable port is available
●Shelves
●Ro-type water purifier:R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.
●Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.
●Dehumidifier
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.
●Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.
●Defrosting circuit
The chamber automatically detects and melts the frost on the evaporator when operating below 0℃.
●Liquid or infection
In order to rapidly decrease the temperature inside the chamber, a cylinder of liquid can be connected the chamber

 Specifications

Inventory Test Chamber

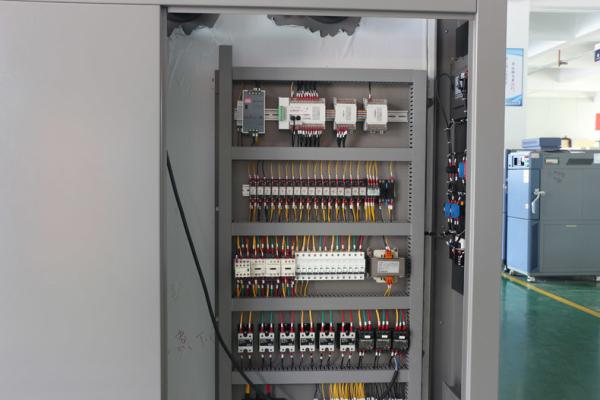

Water and Electricity Separation Design

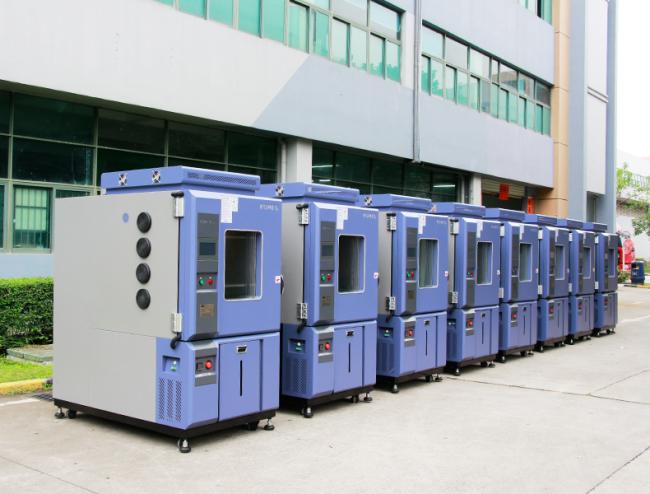

Outlook of test chamber:
