PVC 270L Salt Fog Test Chamber , Corrosion Test Chamber Electro Plating
PVC 270L Industrial Salt Spray Fog Corrosion Test Chamber Electro Plating
Salt spray fog corrosion test chamber is widely used in corrosion resistance test. For example, products treated by spraying plating, and anti-rust, to test the surface treatment of various materials. In order to keep the items from being corroded for a longer period, those include coating, electroplating, and films of organic and non-organic materials, anodizing, anti-rest oil and corrosion resistant treatment should pass corrosion resistance test through salt spray fog corrosion test chamber.
Salt spray fog corrosion test chamber are deaigned for corrosion-resistant Test of surface treatment such as coating, electroplating, films of organic and non-organic materials, anodizing, anti-rest oil and corrosion resistant treatment,
IEC68-2-11,JIS,
H8502,ASTM B-117-97,
ISO9227,CNS3627,3885,
4159,7669,8886,JIS D-0201
| Model | HL-160-NS | HL-90-BS | HL-60-SS |
| Inside box size (W*H*D) | 1600*500*1000 mm | 900*500*600 mm | 600*400*450 mm |
| Out side box size(W*H*D) | 2240*1500*1600 mm | 1460*1280*910 mm | 1130*1070*630 mm |
| Working Volume(L) | 800 | 270 | 60 |
| Heater | 15KW+1KW | 7KW+0.75KW | 3KW+0.75KW |
| Air compressor | 2HP | 1/2HP | 1/2HP |
| Test Chamber Temp |
35±1°C for Salt Spray Method (NSS ACSS) 50±1°C for Corrosion-resistant Testing Method(CASS) |
||
| Saturated air Barrel Temperature | 47±1°C for Salt Spray Method (NSS ACSS) 63±1°C for Corrosion-resistant Testing Method(CASS) |
||
| PH |
6.5~7.2 for Salt Spray Method (NSS ACSS) 3.0~3.2 for Corrosion-resistant Testing Method(CASS) |
||
| Multiple Safety Protection Devices : | Current discharge protection, over pressure protection,over temperature protection, over load fuse protection | ||
| Power | AC220V 1Φ 50Hz | ||
| Minimum Order Quantity: | 1 units |
| Price: | Negotiable |
| Payment Terms: | T/T, negotiable |
| Warranty | 12 months |
| Delivery Time: | 15 working days after received your payment |
| Packaging Details: | Packed in carton firstly, and then reinforced with plywood case for outer packing |

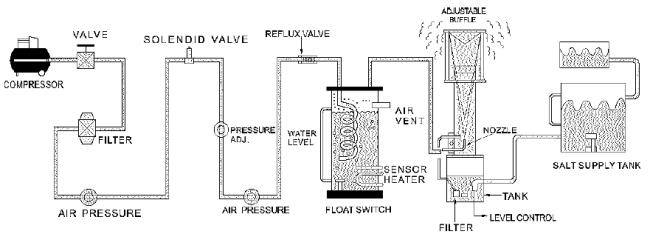

1. Salt Spray Test Chamber System Diagram

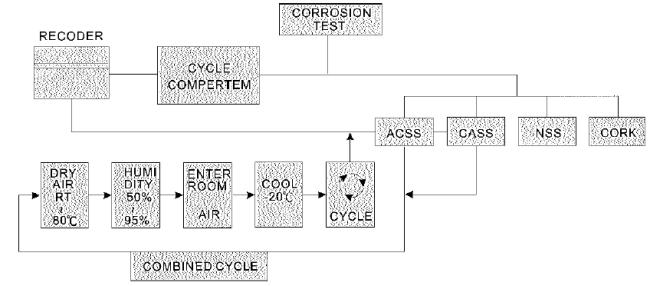

2. Combined Cycle Tester System Diagram
3. Salt Spray Testing working Principle

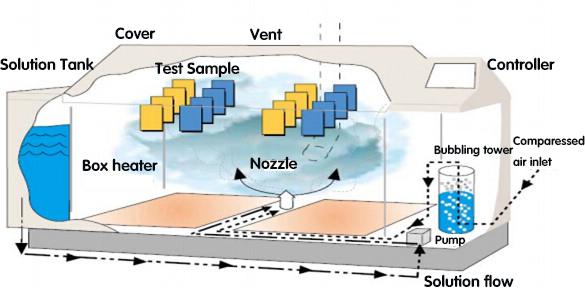

- Salt Spraying Process

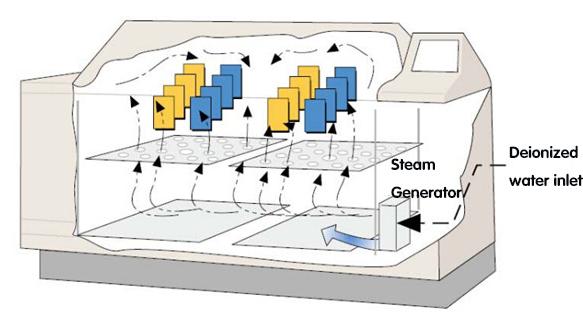

- Humidifying Process

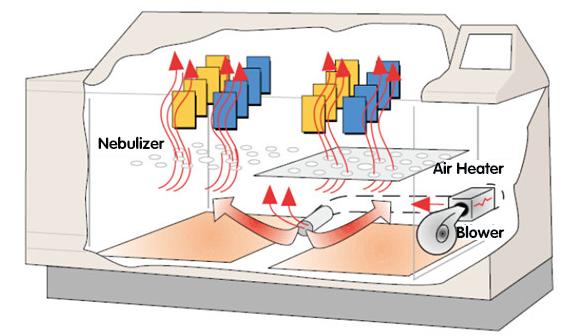

- Drying Process
●High temperature resistant material imported from Germany to ensure long-term use
●Complete system for water level and water temperature protection to ensure safe use
●Nozzle spray pressure, work room temperature and working time adjustable, easy operation
●Accurate glass nozzle to assure evenly spread and no crystallization block.
