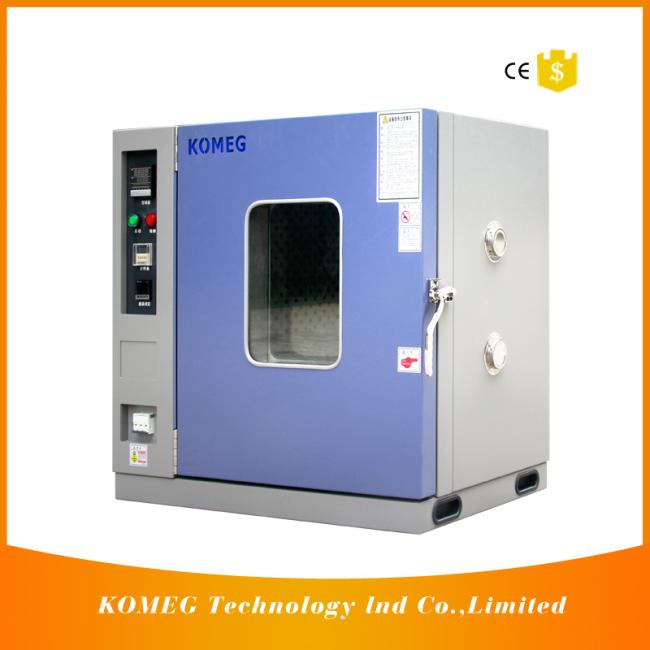

High Precision Hot Air Electric Drying Oven 50º C-300º C Temp For Laboratory Use
High Precision Hot Air Electric Drying Oven 50º C-300º C Temp For Laboratory Use
Application
This machine can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing . It supply precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution
Features
1 Digital intelligent temperature controller, with microcomputer intelligent PID control and timing function;
2 According to the box size,single door or double door design,is practical and generous.
3 Large diameter centrifugal wind wheel, uniform heat circulation;
4 The shell is made of high quality cold -rolled steel with Metal spray paint,attractive appearance design
5.This series product with the feature of large storage and temperature rising is fast.
Technical parameter
| Specifications of drying oven | |||||
| Model | KOV-50 | KOV-100 | KOV-200 | KOV-290 | KOV-500 |
| Interior size (W*H*D)mm | 400*350*350 | 450*500*450 | 600*600*600 | 600*950*500 | 800*1050*600 |
| Exterior size (W*H*D)mm | 1010*650*760 | 1110*800*1100 | 1260*900*1100 | 870*1590*640 | 1160*1760*880 |
| Capacity(KVA) | 3.5 | 3.5 | 4.5 | 4.5 | 6 |
| Power | AC220V±10% 1Φ 50Hz/60Hz | AC 380V±10% 3Φ4wire 50Hz/60Hz | |||
| Temp. range | 50 ºC~ 200 ºC( 300 ºC) | ||||
| Temp. constancy | ±1.0 ºC | ||||
| Temp. uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) | ||||
| Heat up time | 50 ºC to 200 ºC within 50 min | ||||
| Interior material | Stainless steel plate | ||||
| Exterior material | Painted Stainless steel plate | ||||
| Insulation material | Glass wool | ||||
| Safety devices | No fuse breaker, over temp protection, ceramic fuse | ||||
| Accessories | Recorder, insolating layer | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||
|
specifications
|
||||
|
Model
|
KOV-600 | KOV-720 | KOV-1000 | KOV-1800 |
| Interior size (W*H*D)mm | 1000*1000*600 | 900*1000*800 | 1000*1000*1000 | 1600*1400*600 |
| Exterior size (W*H*D)mm | 1360*1720*880 | 1300*1750*1000 | 1300*1750*1000 | 1600*1940*1200 |
| Capacity(KVA) | 6.5 | 7.5 | 8.5 |
9.5
|
| Power |
AC 380V±10% 3Φ4wire 50Hz/60Hz
|
|||
| Temp. range |
50 ºC~ 200 ºC( 300 ºC)
|
|||
| Temp. constancy |
±1.0 ºC
|
|||
| Temp. uniformity |
±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC)
|
|||
| Heat up time |
50 ºC to 200 ºC within 50 min
|
|||
| Interior material |
Stainless steel plate
|
|||
| Exterior material |
Painted Stainless steel plate
|
|||
| Insulation material |
Glass wool
|
|||
|
Safety devices
|
No fuse breaker, over temp protection, ceramic fuse | |||
|
Accessories
|
Recorder, insolating layer | |||
|
Note: 1. We reserve the right to change specifications without prior notice
|
||||
Big Reasons to Buy
1. We appreciate you, the customer, and we always treat our customers with the greatest consideration and courtesy.
2. We'll be here tomorrow. Our business has been headquartered in Shenzhen, Dongguan for over twenty years. We are one of the largest independant environment test equipment manufacturers in China.
3. We'll do our best to remedy any problem you might have with a purchase. We are old fashioned in our customer service; We believe we have an obligation to give you our best if you purchase from us.
4. Your order will be filled accurately and shipped promptly. We have thousands of parts in stock. We have been selling by email order for over fifteen years.
5. You won't pay too much. Our volume buying and low overheads assures you of a low price and top quality new products.
1,Pre-sales service
Before the purchase, our company will provide customers with detailed product-related information, and welcome you to visit the company and check the goods.
2,After-sales service
After the completion of the transaction, our company will be arranged different after-sales service according to the ease of the goods , and even arrange work engineers on-site service.
3,Warranty period
Our product warranty is 12 months and we are committed to responding within 48 hours of the problem, providing a solution.
