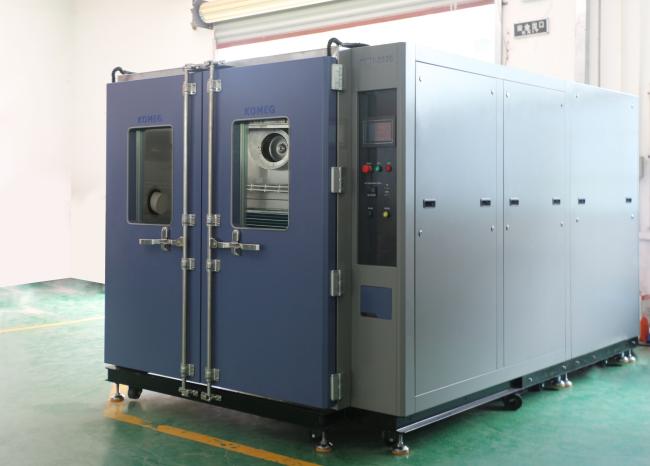

Constant Temperature and Humidity Cycling Walk-in Climate Testing Chamber
Constant Temperature and Humidity Cycling Walk-in Climate Testing Chamber
Product Application
Walk-in climate chamber can simulate different climatic conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the performance of material. By testing the product under different climatic conditions to see whether its performance can meet the intended requirements.Walk-in stability chambers are used for various types of testing such as prototype evaluation, research & development testing, production testing, accelerated stress testing, reliability testing, failure analysis, and other application where climatic stability simulation is needed.
Environmental test chamber Standard
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 humid testing
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
B/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
B/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
Specifications
KMH-S series( -70°C ～150°C)
| Model | KMH-S series | |||||
| 150S | 225S | 408S | 800S | 1000S | ||
| Temp. range | -70°C ～150°C | |||||
| Interior sizel | W(mm) | 600(mm) | 700(mm) | 700(mm) | 1000(mm) | 1000(mm) |
| H(mm) | 600(mm) | 700(mm) | 750(mm) | 1000(mm) | 1000(mm) | |
| D(mm) | 460(mm) | 480(mm) | 800(mm) | 800(mm) | 1000(mm) | |
| Exterior size | W(mm) | 880(mm) | 980(mm) | 980(mm) | 1280(mm) | 1280(mm) |
| H(mm) | 1730(mm) | 1890(mm) | 1940(mm) | 2160(mm) | 2160(mm) | |
| D(mm) | 1400(mm) | 1460(mm) | 1740(mm) | 1750(mm) | 1950(mm) | |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 | |
| Weight(KG) | 280 | 330 | 450 | 550 | 650 | |
| Humidity uniformity | ±3.0％R.H | ±5.0％R.H | ||||
| Heat up time | -70°C ～+100°C ,within 60 min | |||||
| Pull down time | +20°C ～-70°C , within 80 min | |||||
| Humidity Range | 20～98％R.H | |||||
| Temp. constancy | ±0.5ºC | |||||
| Humidity constancy | ±2.5％R.H | |||||
| Temp. uniformity | ±2.0ºC | |||||
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection | |||||
| Interior material | Stainless Steel Plate(SUS 304) | |||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||||
| Ambient Temp. | +5°C ～+35°C | |||||
| Wiring method | AC 380±10％ 50Hz ,3 phase 4 wires +Ground Wires | |||||
| Controller | LCD Touch Screen, Chinese or English display selectable | |||||
| Operation model :Program or fix point running | ||||||
| Memory capacity :120programs,1200steps, | ||||||
| All repeat 999 cycles, part repeat 99 cycles | ||||||
Main Features
1 Large system capacity: 120 patterns*1200 steps, circulation Setting: Max. 9999 cycles, PID+SSR/SCR controller. Curves drawing, safety device
2 RS-232/RS-485/RJ 45/Ethernet/USB communication interface.
3 CE certification
4 Large LCD Touch screen controller
5 SUS#304 stainless steel plate inner chamber, stainless steel plate with Powder coated exterial chamber.
6 Germany compresser, environmental-friendly refrigerant (R404A, R23)
7 PU&fiberglass wool insulation is to make the temperature stable.
8 Large glass observation window with lamp, users can see the sample test effects directly.
9 Using more powerful wing blower air supply to make the temperature and humidity evenly dIstributed in
the test area.
10 Best after sales service: One year free parts maintenance warranty.
11 Meet international test standards: ASTM D2436, JIS K7212, DIN 50011, BS 2648, IEC-540, etc.
12 Installing the equipment on-site and training oversea are available. At present, we have been to Thailand, Russia, Australia to install the test equipment.
13 Customization for inner chamber size, temperature and humidity range is available & welcomed.
Related Products
Besides walk-in climate room, our business range also covers:
Temperature humidity chamber, Thermal shock chamber, Temperature humidity control cabinet, Change rate temperature chamber, Ozone test chamber, Industrial hot air oven, Dustless hot oven, Salt spray chamber, Rain spray test chamber, Sand and dust chamber, Automatic glue dispensing machine, Climate and vibration combined chamber, Burn-in aging test room, Steam aging test chamber, Ventilation aging test chamber, Vibration tester, Tensile tester, Drop tester, etc.
FAQ
Q1: What is your Warranty service for the KOMEG machine/chamber?
A1: we offer 1 years warranty service. If any quality problems on our side occured in this period ,we will send you replacement and cover the cost of shipping and component parts.
Q2: What's your period and terms of delivery?
A2: Usually, it takes us 20 - 25 days after order confirmation to produce the equipment and a little bit longer for customization service. While if you are in urgent need, we can make special arrangement to speed up the proceedings. Then we start the shipped by sea, by air freight or by air express.
Q3: What’s your terms of payment?
A3: T/T, L/C and other payment terms are all acceptable.
Q4: Is it ok for customization service?
A4: Yes, inner chamber size, structure, color, other special parameters can be all customized as per your own specific request.
