High Industrial Drying Ovens Test Chamber Digital Display For Electroplating
Precise Industrial Drying Ovens Test Chamber With Led Digital Display For Electroplating
Oem and ODM are welcome ,kindly contact:anna@komegtech.com
Technical specification:
| Model | KOV- | |||||||||
| 50 | 100 | 200 | 216B | 290 | 500 | 600 | 720 | 1012B | 1000A | |
| Working Volume (litter | 50L | 100L | 200L | 216L | 290L | 500L | 600L | 720L | 1012L | 1000L |
| Interior size WxHx D(cm) | 40x35x35 | 45X50X45 | 60X60X60 | 60 x 60× 60 | 60X95X60 | 80X105X60 | 100X100X60 | 90X100X80 | 90× 125× 90 | 90 X 110 X 100 |
| 1.Air supply mode | Forced air circulation |
| 2.Temperature Range | RT+20℃ ～ +250℃ |
| 3.Temp fluctuation | ±0.5℃ |
| 4.Temp uniformity | ±1.0℃ ( +100℃) |
| 5.Heating up time | RT+20℃ ～ +250℃ 60min No load |
| 6.Control mode | PID+SSR Output |
| 13.Temperature controller |
Korea imported thermostat ST-570
* High precision (0.1%), high performance
* Support multi imput (T / C, RTD, DCV)
* Multi output and simultaneous output (Max 4 points
* Parameter operation is simple, the text can be set
* Supports suppression of Overshoot function
* Alarm output 1 point
* Operation display of auxiliary output status
* Input adjustment function for each zone (Max 4 Zone)
* Control the heating and cooling functions
* PID automatic adjustment function (AT Gain)
* Supports multiple communication protocols (Modbus, etc.)
|
| 14.Temperature measurement |
K thermoelectric pairs
|
| 15.Protective device |
Over-temperature protection, motor overload protection, buzzer, fault
indicator, no fuse switch.. |
| 16.Partition material |
Stainless steel partition 2pcs
|
| 17. Accessory |
Power cord 3 meters
|
Application
Industrial electric oven, suitable for industrial and mining enterprises, scientific research units, military
college and university laboratories, medicine, biology, etc., can be widely used in various metal workpieces,
minerals and other materials for heating and anti-aging treatment, heat treatment, drying and high
temperature Test, aging, etc.
Features
1. Large loading capacity and heavy carrying capacity provide precise uniform drying effect.
2, over temperature protection: overload automatic power off system.
4, easy to maintain the design.
5. Adjustable air valve and over temperature protection device.
6, high temperature long axis motor motor.
Maintenance method editing
1. Before using the electric oven, check if the power supply voltage is consistent. When using, ground the
power outlet ground wire as specified.
2. Do not over-squeeze the contents of the box, and leave room for natural convection of the air so that the
humid air can accelerate on the wind top.
3. When the electric heating constant temperature drying box is used, it is forbidden to touch the electrical
parts of the space on the left side of the box by hand or wipe it with a damp cloth and rinse with water.
power should be cut off during maintenance.
4. The power cord of the electric constant temperature drying oven should not be wrapped around metal
objects. It should not be placed in a place with high temperature or humidity to prevent the rubber from
aging and causing leakage.
5. Do not put flammable or explosive materials in the electric constant temperature drying oven without
explosion-proof device.
6. The electric heating constant temperature drying box should check regularly whether the silver contact of
the temperature regulator is hairy or uneven. If it is, use the fine gauze to level the contact, then use it,
always wipe it with a cleaning cloth to make it in good contact. (Note that the power must be turned off).
Do not hit the metal pipe of the indoor temperature regulator to avoid affecting the sensitivity.
7. After each use, the power supply must be cut off, and the inside and outside of the box should be kept
clean. Hang the corresponding logo after cleaning.

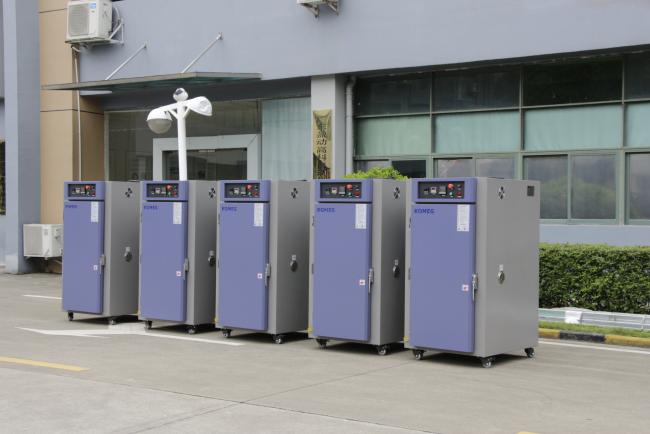

Photos show
