1500L High Temperature Precision Industrial Drying Oven For Medical Reducing Bacteria
1500L High Temperature Precision Industrial Drying Oven For Medical
More details ,kindly contact :anna@komegtech.com
Technical Specification
| Temp range |
RT+20℃ ～ +300℃( Different temperature range and size as per customer requirements ) |
| Air supply | Forced air circulation |
| Temp uniformity | ±10.0℃ (With load 35KW) |
| Heating up time |
RT+20℃ ～ +300℃ within 80min no load |
| Load fever |
Load fever 35KW, load the hair must be controlled by the machine. The machine provide control Signal control of the customer's load when the machine stops running, the temperature too high or the machine fails must be cut off the load heating |
| Control way | PID+SSR Output |
| Inner size |
W 1500× H 1100 × D 800 mm
|
| Exterior size |
W 2200 × H 1925 × D 1100 mm |
| Door Sealing | Silicone, double wing door |
| Material | Inner material:SUS304# stainless steel |
Chamber structure
| Insulation material | Glass wool |
| Heater | High quality nickel-chromium alloy wire electric heaters |
| Temperature Controller |
ST-570 South Korea imported thermostat ST-570 *high precision(0.1%), high performance *Support multiple input (T / C, RTD, DCV) *Can finish multiple output and simultaneous output (Max 4 points) *Simple parameter operation , available text settings *Supports suppressing system Overshoot function *Alarm output 1 point Auxiliary output status operation screen displayed *Each zone input adjustment function (Max 4 Zone) To achieve control heating and cooling function *PID automatic adjustment function (AT Gain) (AT Gain) *Supports multiple communication protocols (Modbus, etc.) *To achieve high quality, high reliability (CE, CUL, ISO, etc.) |
| Temperature body | K thermoelectric |
| ventilator | Ventilator 1 type, displacement of 130 ~ 250m3 / h (from the exhaust fan to the duct outside the laboratory to be handled by the customer) |
| Protection System |
Over-temperature protection, motor overload protection, buzzer, fault indicator, no fuse switch. |
Precise oven or cabinet dryers are mostly used for drying, baking, sterilization of non - volatile items and heat Treatment test for mining enterprises, schools, medical and scientific research. Expecially for simultaneous
Application
Drying of different kinds of polymersin small quantities for drying materials for trial molding. They can also be Applied in electronic engineering, electroplating, and pharmacy, paint baking, printing industries, etc.For Preheating or drying related products.
Features
Provide a series of stable and reliable precision oven, KOV precise oven inside the box dimension is divided into eight kinds of standard specifications, can meet various requirements.
Forced air supply circulation system and the special outlet design to ensure perfect humidity and temperature uniformity.
LED digital temperature controller, easy operation and bring you happy customer experience.
Air-exhausting Device is optional
Other ultra high temperature oven series can reach 500 º C are available upon customized.
|
Competitive Advantage
1. Have 27 years experience on environmental chambers and standard environmental chambers, Specializing in environmental simulation equipment, ess, walk-in, environmental stress screening, altitude chambers, temperature chambers, temperature and humidity chambers, environmental test chamber manufacturers, humidity chambers, humidity simulation, temperature cycling, thermal test chambers, solar panel test chambers, thermal shock, climatic/climate chambers, vibration test chambers, drive-in chambers, laboratory test chambers, environment test rooms.
2. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.
3. NO 1 BEST SELLER
KOMEG brand of temperature and humidity test chamber is the ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range. Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 150 °C and 10% to 98% RH.Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 150 °C with humidity.

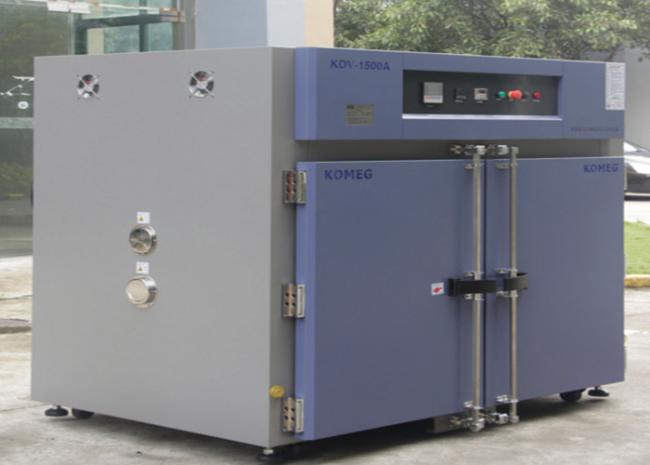

Photo show

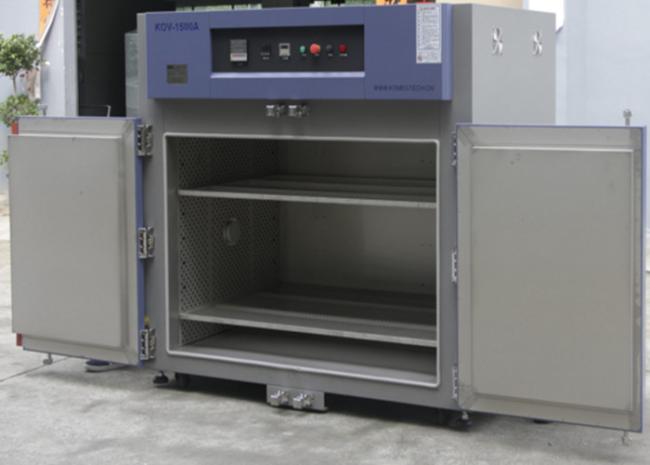

Inside
|
