White Black Laboratory Drying Oven With Digital Display Microprocessor Temperature
White Black Industrial Drying Ovens With Digital Display Microprocessor Temperature
Technical parameter
| Specifications of drying oven | |||||
| Model | KOV-50 | KOV-100 | KOV-200 | KOV-290 | KOV-500 |
| Interior size (W*H*D)mm | 400*350*350 | 450*500*450 | 600*600*600 | 600*950*500 | 800*1050*600 |
| Exterior size (W*H*D)mm | 1010*650*760 | 1110*800*1100 | 1260*900*1100 | 870*1590*640 | 1160*1760*880 |
| Capacity(KVA) | 3.5 | 3.5 | 4.5 | 4.5 | 6 |
| Power | AC220V±10% 1Φ 50Hz/60Hz | AC 380V±10% 3Φ4wire 50Hz/60Hz | |||
| Temp. range | 50 ºC~ 200 ºC( 300 ºC) | ||||
| Temp. constancy | ±1.0 ºC | ||||
| Temp. uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) | ||||
| Heat up time | 50 ºC to 200 ºC within 50 min | ||||
| Interior material | Stainless steel plate | ||||
| Exterior material | Painted Stainless steel plate | ||||
| Insulation material | Glass wool | ||||
| Safety devices | No fuse breaker, over temp protection, ceramic fuse | ||||
| Accessories | Recorder, insolating layer | ||||
|
Note: 1. We reserve the right to change specifications without prior notice |
|||||
|
specifications
|
||||
|
Model
|
KOV-600 | KOV-720 | KOV-1000 | KOV-1800 |
| Interior size (W*H*D)mm | 1000*1000*600 | 900*1000*800 | 1000*1000*1000 | 1600*1400*600 |
| Exterior size (W*H*D)mm | 1360*1720*880 | 1300*1750*1000 | 1300*1750*1000 | 1600*1940*1200 |
| Capacity(KVA) | 6.5 | 7.5 | 8.5 |
9.5
|
| Power |
AC 380V±10% 3Φ4wire 50Hz/60Hz
|
|||
| Temp. range |
50 ºC~ 200 ºC( 300 ºC)
|
|||
| Temp. constancy |
±1.0 ºC
|
|||
| Temp. uniformity |
±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC)
|
|||
| Heat up time |
50 ºC to 200 ºC within 50 min
|
|||
| Interior material |
Stainless steel plate
|
|||
| Exterior material |
Painted Stainless steel plate
|
|||
| Insulation material |
Glass wool
|
|||
|
Safety devices
|
No fuse breaker, over temp protection, ceramic fuse | |||
|
Accessories
|
Recorder, insolating layer | |||
|
Note: 1. We reserve the right to change specifications without prior notice
|
||||

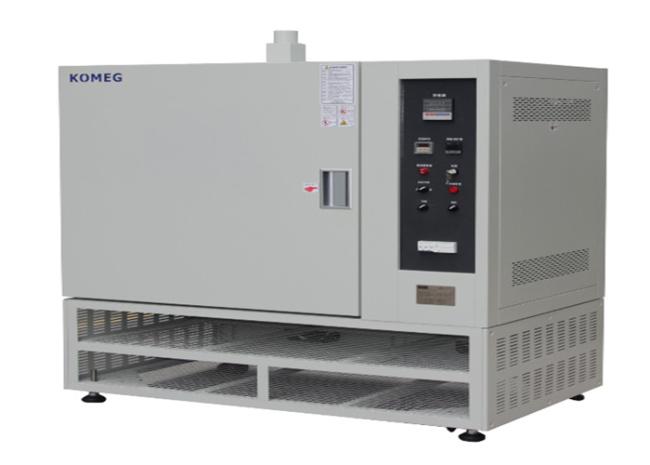

Photos show
Testing Standard:
Our Products meet following testing standards:
● GB-2423．2-89(IEC68-2-2)Testing B:High Temperature Testing method
● GJB360．8-87(MIL-STD．202F) High Temperature Aging Test
● GJBl50．3(MIL-STD-810D) High temperature testing method
Features
1. Industrial drying machine specialty universities uses high quality cold-rolled steel plate, coated with electrostatic powder spraying; the coat is hard and firm, with strong rust resistance.
2.The studio is made up of high quality stainless steel plate,whitch has round shape and is smooth ,fluent and easy to clean.
3. Industrial drying machine for specialty universities is full of superfine glass wool thermal insulation material between the box and the studio,what brings good heat preservation. That can effectively guarantee the stability and accuracy of the temperature in the box and the influence to the environment.
4. Industrial drying machine for specialty universities has a double-layer tempered glass door , users can observe items being heated inside the machine clearly and has good heat insulation effects. The operator can avoid being burned.
5.There is a rubber sealing ring between the studio and glass door to ensure the higher vacuum.
6.The heater is installed on the surface of the studio to improve the temperature uniformity as possible and easy to clean.
7. Temperature control adopts microcomputer intelligent digital technology manufacture, has industrial PID. It has four-digit double LED Windows indicating function, precision temperature control, strong anti-jamming ability, and is also very convenient to operate (see Temperature Controler Operating Manual).
Big Reasons to Buy
1. We appreciate you, the customer, and we always treat our customers with the greatest consideration and courtesy.
2. We'll be here tomorrow. Our business has been headquartered in Shenzhen, Dongguan for over twenty years. We are one of the largest independant environment test equipment manufacturers in China.
3. We'll do our best to remedy any problem you might have with a purchase. We are old fashioned in our customer service; We believe we have an obligation to give you our best if you purchase from us.
If you face any problems in future during testing process we promise we will give you a reply within48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
