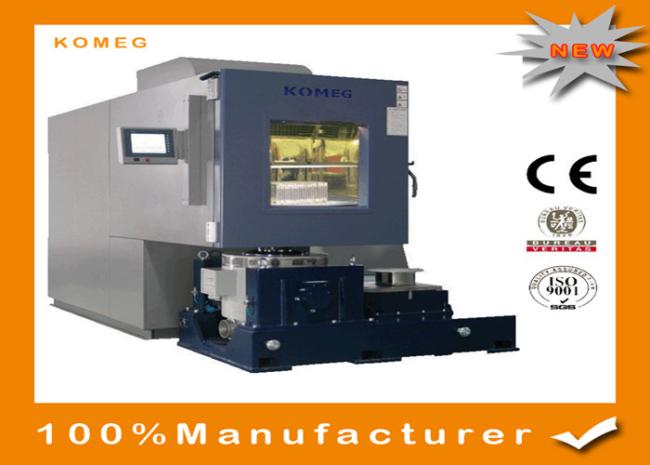

Combine Vibration and Thermal Test Chamber Laboratory Equipment CE Certification
Combine Vibration and Thermal Test Chamber CE Certification Laboratory Equipment
Application:
Temperature Humidity Vibration Combined Environmental Test Chambers an match appropriate vibration
table to meet all kinds of the corresponding temperature, humidity and vibration combined environmental
testing requirements. And widely used in aviation, aerospace, shipbuilding, electrical, electronics,
communications and other industrial fields.
also alternate through programmable for testing the product or material heat-endurance, cold-endurance,
and humidity-endurance, or dryness-endurance, more over vibration; widely applied for quality inspection
for quality control of the industries of aviation and space, electron, electrical equipment,
vehicle(automobile), metal, instrument, chemistry, building materials, foodstuffs, adhesion tape, printing
, packaging, etc.
Performance (Air-cooled, room temperature +25℃, no load)
|
Temperature range |
-70℃ ～ +180℃
|
|
Temperature deviation |
≦±2.0℃
|
|
Temperature fluctuation |
±0.5℃
|
|
Temperature uniformity |
≦2.0℃
|
|
Test sample |
Mass of sample and rig: 60 kg
Dimension of sample and rig: 750mm (L) x 500mm (D) |
|
Chamber Structure |
|
|
Chamber size |
Workspace volume: W 1000 × H 1000 × D 1000 mm
Exterior size: Approx. W 1200 × H Pending × D 3250 mm
|
|
Insulation box |
wall material: high-quality carbon steel with static colr spray
inner wall material: SUS304 # matte stainless steel plate
Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
|
Heater |
High-quality nickel-chromium alloy wire electric heater, non-contact control (SRR). |
|
Supply air circulation system |
A. Special stainless steel lengthened axis of the motor 1 B. SIROCCO FAN C. Adjustable shutter outlet |
Refrigeration system
|
1.Compressor |
BOCK Semi-hermetic compressors |
|
2.Refrigerant |
R404A/R23 (Ozone damage index is 0)environmental friendly |
|
3.Condenser |
Air cooling fin condenser. |
|
Evaporator |
Copper aluminum finned evaporator. |
|
5. Other accessories |
High-precision expansion valve, oil separator, desiccant, etc. components are imported using internationally renowned brands |
|
6.Refrigerant flow control |
Automatic adjustment of energy consumption output of the refrigeration system. |
|
7.Refrigeration Technology |
1. Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal cooling system clean and reliable. 2.water tray located at the bottom of the compressor to ensure condensate water drain through pipe freely at the rear of the chamber. |
|
Supply air circulation system |
A. Special stainless steel lengthened axis of the motor 1 B. SIROCCO FAN C. Adjustable shutter outlet |
|
Door |
Single door, single window, left open, handle on right hand side A. Window W460 * H560mm with energy-saving lamps 1 only B. Explosion-proof handle C. Button: SUS # 304 |
|
Temperature measuring body |
High precision DIN A class, dry bulb SUS # 304 PT 100Ω 1 Pcs |
Main material list
| Name | Brand |
| Compressor | TECUMSEH compressor |
| press switch | Denmark DANFOSS, Saginomiya |
| Condenser | Guangzhou Yongqiang, |
| Evaporator | Yongqiang |
| Dry filter | Denmark DANFOSS |
| Capillary tube | KOMEG |
| Expansion valve | Denmark DANFOSS |
| Magnetic valve |
SAGLNOMLYA or Nickideu /DANFOS |
| Controller | KOMEG |
| AC contactor | French Schneider |
| Phase sequence relay | Carlo Gavazzi |
| Time relay | Autonics |
| AC relay | Omron |
| Solid-state relay | Carlo Gavazzi |
3. Product Certification and Features
* CE approved with 1 year warranty
* 33% energy saving than 2rd generation of KOMEG products.
* Working hours up to 4,320 hours testing without downtime.
* Meet all requirements for extreme testing and low temperature alternating
