15CBM Low Noise Constant Humidity Temperature Walk-In Chamber For Monitors Scanners
Application:
Specification
| Model |
KMHW-15
|
|
| Volume(m³) |
15CBM
|
|
| Interior Dimensions |
W2500XH3000XD2000Mm
|
|
| Safety Devices(standard) |
No fuse breaker, over pressure, over heat and over current
protection for compressor, over temperature protection, over load
protection for blower, dry heat protection |
|
| Standard accessories |
Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1,
status indicator |
|
| Control System |
Balanced Temperature & Humidity Control System
|
|
| Refrigeration system |
Water Cooled
|
|
|
Semi-hermetic compressor, single stage or cascade refrigeration system,
|
||
|
CFC free refrigerant ( HFC-507 and HFC-23 )
|
||
| Controller | Panel |
7-inch LCD Touch panel, Chinese or English display selectable
|
| Operation model |
Program or fix point running
|
|
| Memory capacity |
120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles
|
|
| Accuracy |
Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit
|
|
| Input |
Temp.: pt-100, Humidity: pt-100 or ～5V DCV
|
|
| Comm.port |
RS-232 or RS-485 ( Softawre is option)
|
|
| Temp. range |
Maximum: 80 ºC,120 ºC;
|
|
| Humidity Range |
10%, 20%, 30% ~ 95%
|
|
| Temp. constancy |
±0.5 ºC
|
|
| Humidity constancy |
±2.5%R.H
|
|
| Temp. uniformity |
±2.0 ºC
|
|
| Humidity uniformity |
±5.0%R.H
|
|
| Ambient Temp. |
+5 ºC～+35 ºC
|
|
| Wiring method |
AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires
|
|
| Heat up time |
+20 ºC～+80 ºC, Within 60 min
|
|
| Pull down time |
+20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min
|
|
| Interior material |
Stainless Steel Plate(SUS 304)
|
|
| Exterior material |
Baked Painting Steel Or Stainless steel ( SUS304)
|
|
| Insulation material |
Rigid polyurethane foam
|
|
| Door size (mm) |
Single wing: W800 x H1800; Double wing: W1600 x H1800;
|
|
Feathers:
1. The shell of walk-in constant temperature and humidity test chamber is made of high quality stainless
steel (SUS#304) CNC machine tool.
2, The use of imported high-grade stainless steel (SUS304) mirror panels. 3,Insulation material: high-density glass fiber cotton. Insulation thickness is 100mm
4, Temperature and humidity cycle system: the use of special air-conditioning low noise long-axis fan motor, high temperature resistant stainless steel multi-wing impeller,
Intensity convection vertical diffusion cycle
5. Double-layer high-temperature high-strength sealing strip is used between the door and the box to ensure the sealing of the test area
6, The use of non-reverse door handle, easier operation
7. The bottom of the walk-in constant temperature and humidity test chamber adopts high-quality fixed PU movable wheels.
8. The observation window is made of multi-layer hollow tempered glass, and the inner gluing sheet type conductive film is heated and defrosted (clear observation test process)
9, test hole (left side of the machine) can be connected to the test power cord or signal

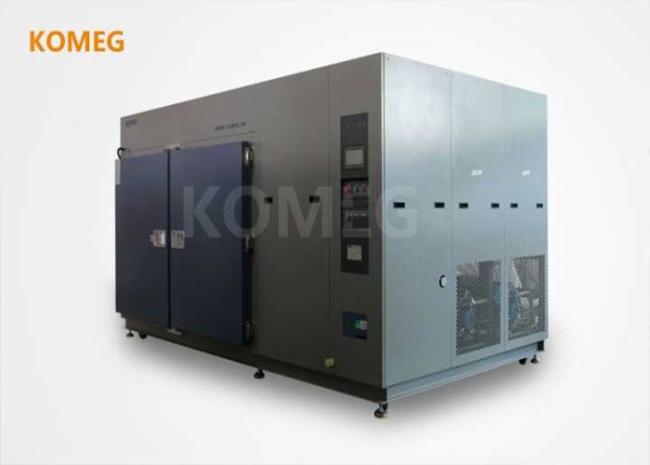

Photos show
