Stability Temperature Humidity Chamber With LCD Display , Environmental Testing

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: 30 days after confirm the order

Brand: komeg

Product Description

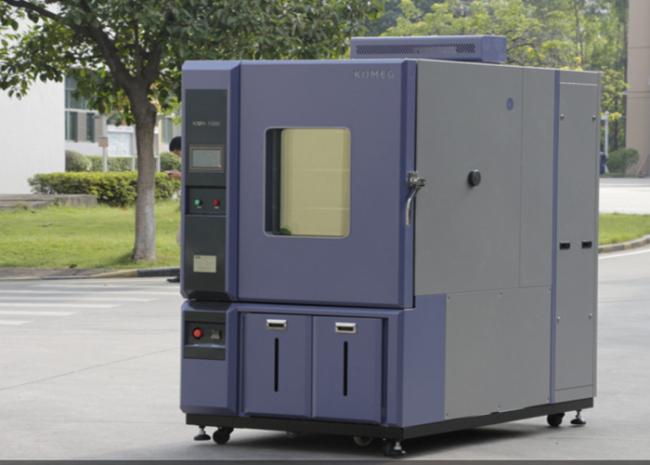

800L Stability Temperature Humidity Environmental Test Chamber With LCD Display

OEM and ODM are welcome

Description :

It can simulate different environment condition. It's appropria-te for testing material

performance, such as resist heat, resist dry,resist humidity and resist cold. That can define

perform-ance of material.

Application :

The chambers is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-

resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.

Programmable Temperature Humidity Climatic Test Chamber Price applied to test the prodcuts quality, such

as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building

materials, aerospace, medical care and so on.

Feathers

● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test

● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test

● GJBl50.3-2009(MIL-STD-810D) High Temperature Test

● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test

● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test

● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test

● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test

Specification

Capacity(L)	800L Model no :KMH-800
Temperature range	L :-20℃ ～ +150℃ R : -40℃ ～ +150℃ S : -70℃ ～ +150℃
Temp Deviation	≦ ± 2.0℃
Temp Fluctuation	±0.5℃
Ramping and soaking rate	Heating up rate: -40℃↑ +100℃ about 45min (no-load, ambient temperature +25℃) Cooling rate: 20 ℃to -40℃about 60min (no-load, ambient temperature +25℃)
Humidity range	20%R.H～98%R.H
Humidity deviation	±5.0％RH(≤75％RH)
Humidity uniformity	3.0％RH (no-load)
Humidity fluctuation	±2.0％RH
Humidifier	Water basin heating and humidification method; Stainless steel sheathed heater; Heater control: no-contact control (SSR); Water level control device, heater anti-dry device

Main Material List imported from famous brand

Name	Brand

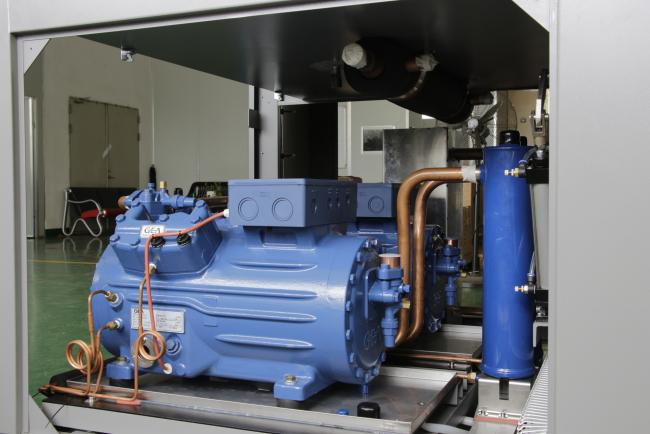

Compressor	French Tecumseh
Oil separator	American Emerson, ALCO, Temprite
Plate heat exchanger	GEA, Xingsuneng, Guoxing
press switch	Denmark DANFOSS, Saginomiya
Condenser	Guangzhou Yongqiang, Klean Air
Evaporator	Yongqiang
Dry filter	Denmark DANFO SS, USA SPORLAN
Capillary tube	KOMEG
Expansion valve	Denmark DANFOSS, USA SPORLAN
Magnetic valve	Japan SAGLNOMLYA or Nickideu / Denmark DANFOS
Controller	KOMEG
Residual current circuit breaker	Taiwan SHIHLIN
No-fuse switch	French Schneider
AC contactor	Japan French Schneider
