Climatic Test Chamber Environmental Temperature Humidity For Plastic Material
cold-resistance of materials.It's mainly used in testing the adaptability of electronics,
electrical appliances,food,automobile,rubber and plastic,metal and other materials or finished
products,components in the high and low temperature environment when storage,transport and
using.You can select from a variety of sizes,ranges,and options to meet your specific testing .
Feathers
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
Main technical Specification
| Capacity(L) |
KMH-150R |
|
Temperature range |
R: -20℃ ～ +150℃ L:-40℃ ～ +150℃ S:-70～ +150℃ |
|
Temp Deviation |
≦ ± 2.0℃ |
|
Temp Fluctuation |
±0.5℃ |
|
Hating and cooling rate |
Heating up rate: -20℃ down -20℃ about 45min (no-load, ambient temperature +25℃) |
|
Humidity range |
20%R.H～98%R.H |
|
Humidity deviation |
|
|
Humidity uniformity |
3.0％RH (no-load) |
|
Humidity fluctuation |
±2.0％RH |
|
Chamber structure |
Overall structure and chamber was composed of three parts as below. |
Control system
|
Sensor |
High precision DIN class A, dry ball φ4.8mm SUS # 304 PT 100Ω. |
|
Controller |
Touch screen controller with PID control |
|
Display function |
Temp.& humidity Setting (SV) Practical (PV) value can be displayed directly Program editing and graphic curve display, |
|
Display resolution |
Temperature: + 0.01℃; Humidity: + 0.1%; Time: 0.01min. |
|
Setting range |
Temperature condition:-100~200℃ |
|
Operating mode |
Programmable running, constant running |
|
Program Capacity |
Set the running time up to 999999 h 59 m (can also be set to continuous operation without time limit); |
Main Material List imported from famous brand
|
Name |
Brand |
|
Compressor |
French Tecumseh |
|
Oil separator |
American Emerson, ALCO, Temprite |
|
Plate heat exchanger |
GEA, Xingsuneng, Guoxing |
|
press switch |
Denmark DANFOSS, Saginomiya |
|
Condenser |
Guangzhou Yongqiang, Klean Air |
|
Evaporator |
Yongqiang |
|
Dry filter |
Denmark DANFOSS, USA SPORLAN |
|
Capillary tube |
KOMEG |
|
Expansion valve |
Denmark DANFOSS, USA SPORLAN |
|
Magnetic valve |
Japan SAGLNOMLYA |
|
Controller |
KOMEG |
|
Residual current circuit breaker |
Taiwan SHIHLIN |
|
No-fuse switch |
French Schneider |
|
AC contactor |
Japan French Schneider |
KOMEG brand of temperature and humidity test chamber is the ideal simulation test chamber for all heat and cold testing between -40 ºC and 180 ºC temperature range. Well-suited for reliability testing based on current test standards in the temperature range of -40 °C to 150 °C and 10% to 98% RH.Meet all requirements for extreme testing and low temperature alternating climate profiles from -70 °C - 150 °C with humidity.
For more detail information ,kindly contact : anna@komegtech.com whats app ,wechat :+86-18029096856

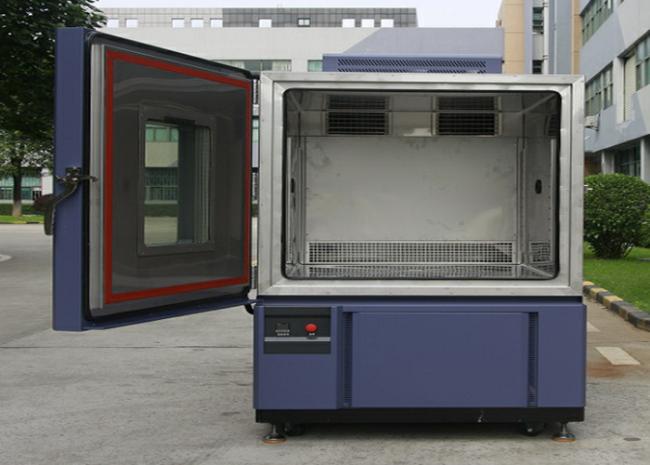

Photos show
