Industrial Laboratory Drying Oven With 9 Tray Sample Shelf For School Medical
Description
Industrial Laboratory Drying Oven With 9 Tray Sample Shelf For School Medical
OEM and ODM are welcome , kindly contact :anna@komegtech.com
Application
The Ovens are mostly used for drying, baking, sterilization of non - volatile items and heat treatment test
For mining enterprises, schools, medical and scientific research. Expecially for simultaneous drying of different kinds of polymers .
In small quantities for drying materials for trial molding. They can also be applied in electronic engineering, electroplating,
And pharmacy, paint baking, printing industries, etc. For preheating or drying related products.
Features
● GB-2423.2-89(IEC68-2-2)Test B:High Temperature Test
● GJB360.8-87(MIL-STD.202F) High Temperature Life Test
● GJBl50.3(MIL-STD-810D)High temperature test
Specification
|
Industiral Oven
|
||||
| SPECIFICATIONS |
Note: We reserve the right to change specifications without prior notice
|
|||
| MODEL |
Kov-1394B
|
|||
| Temp. range |
RT+20°C~300°C
|
|||
| Temp. constancy |
±1.0 °C
|
|||
| Temp. uniformity |
±2.0°C
|
|||
| Heat up time |
±20 ~ + 250 °C about 70 Min
|
|||
| Interior dimension |
w120xH132xD88cm
|
|||
| Exterior dimensions |
W160XH207XD110CM
|
|||
| Interior material |
Stainless steel
|
|||
| Exterior material |
Baking painted steel
|
|||
| Insulation material |
Glass wool
|
|||
| Safety devices |
No Fuse Breaker, Over Temp. relay, ceramic fuse
|
|||
| Accessories |
Recorder 30hr isolating layer *2, N2 or CO2 flow meter
|
|||
| Outer case material |
Cold paint
|
|||
| Power | AC220V±10% 1Φ 50Hz/60Hz |
|||
Other specification
|
Door Sealing |
Silicone, double wing door
|
|
Material |
Inner material:SUS304# stainless steel ；Exterior size:cooling baked painting
|
|
Insulation material |
Glass wool |
|
Heater |
High quality nickel-chromium alloy wire electric heaters,
|
|
Temperature Controller |
ST-570 South Korea imported thermostat ST-570
*high precision(0.1%), high performance
*Support multiple input (T / C, RTD, DCV)
*Can finish multiple output and simultaneous output (Max 4 points)
*Simple parameter operation , available text settings
*Supports suppressing system Overshoot function
*Alarm output 1 point
Auxiliary output status operation screen displayed
*Each zone input adjustment function (Max 4 Zone)
To achieve control heating and cooling function
*PID automatic adjustment function (AT Gain) (AT Gain)
*Supports multiple communication protocols (Modbus, etc.)
*To achieve high quality, high reliability (CE, CUL, ISO, etc.) |
|
Temperature body |
K thermoelectric |
|
ventilator |
Ventilator 1 type, displacement of 130 ~ 250m3 / h (from the exhaust fan to the duct
outside the laboratory to be handled by the customer) |
|
Protection System |
Over-temperature protection, motor overload protection, buzzer, fault indicator, no fuse switch.
|
|
Work timer |
Digital working timer 1type, the timer starts when the temperature reaches the set value, , 0 ~ 9999 hours
|
|
Control panel |
Controller ；‚Over-temperature protection；ƒwork timer； ④ emergency stop switch; ⑤ power switch;⑥ timer switch; ⑦ fault lights. |

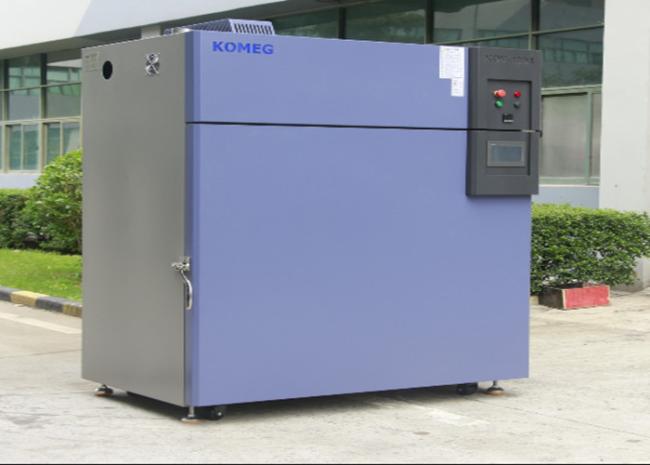

Photos show
