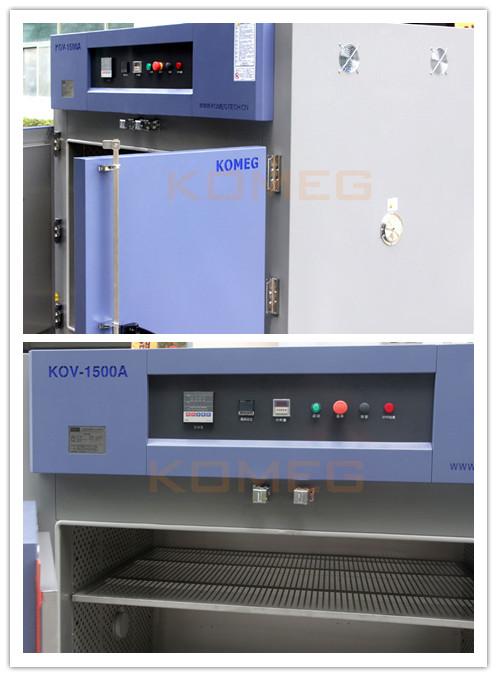

Programmable Forced Air Drying Oven Laboratory Drying Oven
Programmable Universal Laboratory Drying Oven Environmental Test Chambers
Application
Dry Heat Sterilization Oven Price in China provide a stable test space for pre-heating, drying, changes about physics and chemistry testing. It supplies precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.
Dry Heat Sterilization Oven Price in China are used to dry, bake and preheat various materials or specimen.
By means of hot air circulation method to uniform the temperature distribution.
Features
1, Over temperature protection, super load automatic power system.
2, Circulation system: air force level cycle.
3, Heating system of electric convection oven: PID+S.S.R.
4, Digital display microprocessor temperature controller and timing function ensures a
precise and reliable temperature control.
5, Dual-layer-bullet-proof toughened glass door ensures absolutely clear observation on objects in chamber.
6, Shutting extent of oven door ifs adjustable, closed-cell silicon gasket ensures a high vacuum degree in oven.
7, The chamber is made of stainless steel(or wire-drawing sheet), which allows a durable service.
Technical parameter
| Specifications of drying oven | |||||
| Model | KOV-50 | KOV-100 | KOV-200 | KOV-290 | KOV-500 |
| Interior size (W*H*D)mm | 400*350*350 | 450*500*450 | 600*600*600 | 600*950*500 | 800*1050*600 |
| Exterior size (W*H*D)mm | 1010*650*760 | 1110*800*1100 | 1260*900*1100 | 870*1590*640 | 1160*1760*880 |
| Capacity(KVA) | 3.5 | 3.5 | 4.5 | 4.5 | 6 |
| Power | AC220V±10% 1Φ 50Hz/60Hz | AC 380V±10% 3Φ4wire 50Hz/60Hz | |||
| Temp. range | 50 ºC~ 200 ºC( 300 ºC) | ||||
| Temp. constancy | ±1.0 ºC | ||||
| Temp. uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) | ||||
| Heat up time | 50 ºC to 200 ºC within 50 min | ||||
| Interior material | Stainless steel plate | ||||
| Exterior material | Painted Stainless steel plate | ||||
| Insulation material | Glass wool | ||||
| Safety devices | No fuse breaker, over temp protection, ceramic fuse | ||||
| Accessories | Recorder, insolating layer | ||||
|
Note: 1. We reserve the right to change specifications without prior notice |
|||||
|
specifications
|
||||
|
Model
|
KOV-600 | KOV-720 | KOV-1000 | KOV-1800 |
| Interior size (W*H*D)mm | 1000*1000*600 | 900*1000*800 | 1000*1000*1000 | 1600*1400*600 |
| Exterior size (W*H*D)mm | 1360*1720*880 | 1300*1750*1000 | 1300*1750*1000 | 1600*1940*1200 |
| Capacity(KVA) | 6.5 | 7.5 | 8.5 |
9.5
|
| Power |
AC 380V±10% 3Φ4wire 50Hz/60Hz
|
|||
| Temp. range |
50 ºC~ 200 ºC( 300 ºC)
|
|||
| Temp. constancy |
±1.0 ºC
|
|||
| Temp. uniformity |
±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC)
|
|||
| Heat up time |
50 ºC to 200 ºC within 50 min
|
|||
| Interior material |
Stainless steel plate
|
|||
| Exterior material |
Painted Stainless steel plate
|
|||
| Insulation material |
Glass wool
|
|||
|
Safety devices
|
No fuse breaker, over temp protection, ceramic fuse | |||
|
Accessories
|
Recorder, insolating layer | |||
|
Note: 1. We reserve the right to change specifications without prior notice
|
||||
Big Reasons to Buy
1. We appreciate you, the customer, and we always treat our customers with the greatest consideration and courtesy.
2. We'll be here tomorrow. Our business has been headquartered in Shenzhen, Dongguan for over twenty years. We are one of the largest independant environment test equipment manufacturers in China.
3. We'll do our best to remedy any problem you might have with a purchase. We are old fashioned in our customer service; We believe we have an obligation to give you our best if you purchase from us.
4. Your order will be filled accurately and shipped promptly. We have thousands of parts in stock. We have been selling by email order for over fifteen years.
5. You won't pay too much. Our volume buying and low overheads assures you of a low price and top quality new products.
1,Pre-sales service
Before the purchase, our company will provide customers with detailed product-related information, and welcome you to visit the company and check the goods.
2,After-sales service
After the completion of the transaction, our company will be arranged different after-sales service according to the ease of the goods , and even arrange work engineers on-site service.
3,Warranty period
Our product warranty is 12 months and we are committed to responding within 48 hours of the problem, providing a solution.
