Altitude High And Low Temperature Test Chamber Observation Window For Rubber Parts
Altitude High And Low Temperature Test Chamber Observation Window For Rubber Parts
OEM and ODM are welcome
More detail information ,pls kindly contact :anna@komegtech.com Mobile no :+86-18098281986 or Wechat:+86-18098281986
High temp chamber can simulation universal testing machine provide high-performance testing a wide
range of applications. From prototyping to durability testing to product component screening, the Our
product is designed to meet quality standards while offering flexibility, uniformity, and control accuracy for
cost-effective testing.
Specification
| Model | KU-216S | KU-1000S |
KU-4500L
|
| Internal volume | 216L | 1000L | 4.5M |
| Inside Dimension | W60xH60xD60CM | W100xH100xD100CM | W150xH174xD173CM |
| Outer Dimension | according to design | W181xH209xD266CM | according to design |
| Temp range | -70℃ ～ +100℃ | -70℃ ～ +100℃ | -40℃ ～ +100℃ |
| Temp fulctuation | ± 0.5℃ | ≦±0.5℃(no load ) | ≦±0.5℃(with load ) |
| Heating up time | Heating and cooling rate 0.7～ +1.0℃/min(Average ) | ||
| cooling time | Heating and cooling rate 0.7～ +1.0℃/min(Average ) | ||
| Pressure range | Normal pressure～0.5kPA | Normal pressure～0.5kPA | Normal pressure～0.5kPA |
| Blood pressure rate | Normal pressure～1kPA ≦30 min(Normal temp status ) | Normal pressure～1kPA ≦30 min(with load ,inner chamber dry ) | Normal pressure～1kPA ≦30 min(with load ,inner chamber dry |
| Recovery time | ≦10kPA /min | ≦10kPA /min |
≦10kPA /mi |
Standards Implement and Met
|
Meet standards |
GB/T2423.1-2008 Test Ab: Low Temperature Test GB/T2423.2-2008 Test Bb: High Temperature Test GB/T2423.21-2008 Test M: Low atmospheric pressure test GB/T2423.25-2008 Test Z/AM: Low Temperature/Low Pressure Comprehensive Test GB/T2423.26-2008 Test Z/BM: High Temperature/ High Pressure Comprehensive Test. GJB150.2A-2009 Low atmospheric pressure (Altitude )test GJB150.3A-2009 High Temperature test GJB150.4A-2009 Low Temperature test GJB150.6A-2009 Temperature Altitude test GJBl50.9-2009(MIL-STD-810G) Consumer electronics test |
|
Easy Operation |
KOMEG Technology adopts 7-inch display TFT color LCD controller to participate in PID control;； Flexible approach for data collection and recording； |
|
High reliability |
Key parts are imported, ensuring the service life and high reliability Efficient oil separator to ensure the service life of the compressor |
|
Vacuum sensor |
Model no :UNIK 5072 (United states GE) Measuring range:0〜200KPa Comprehensive accuracy:±0.2﹪FS.BSL Output:4〜20mA Pressure interface:G1/4 internal screw thread |
|
Vacuum pump |
Leybold SV-40B vacuum pump *1 Water-sealed vacuum pump, model: 2BV2061. |
|
Shelf for samples |
Two layers of stainless steel sample holder. Adjustable, load capacity 30kg/ layer |
|
Manual inflation valve |
Manual inflation valve *1 for manual inflation during vacuum power failure, restore the pressure inside the box to open the door. |

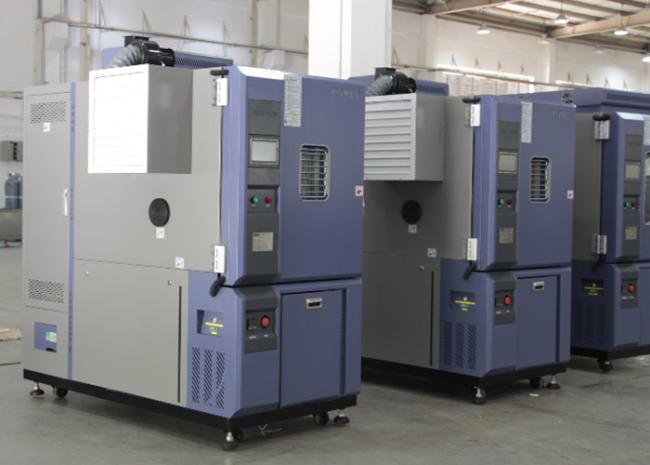

Photos show
