Automotive ASTM Salt Spray Test Equipment / Salt Spray Corrosion Test Chamber LCD Touch Screen

Automotive ASTM Salt Spray Test Equipment / Salt Spray Corrosion Test Chamber LCD Touch

Screen

Product Description

ThSalt spray corrosion test chamber (Salt spray test chamber, salt box, salt spray test machine, salt

spray corrosion test chamber) can be used to assessing the ability of salt spray corrosion resistant

materials. It can be used to assessment materials and their resistance to salt spray corrosion protection

layer capacity, whether you are testing hardware industry, screw industry, electroplate industry,

automotive and motorcycle parts, communication industry, computer industry, electronic industry, coating

industry, research institution, etc, our salt spray test chamber can give you a best solution.

Product  Feature

1 Durable hard PVC construction, anti-corrosion, easy to clean.


2 Reservoirs with mixing system on stand.


3 Cabinet heated by water jacket, heating element from USA famous company.


4 Separate heating system, be apart from salt testing chamber to ensure accurate result and protect

   circuit.


5 Exposure zone lined with corrosion-resistant PVC sheets.


6 Clear cover allows viewing of test conditions.


7 Peaked cover prevents dripping of condensation onto samples.


8 Water seal and water level protection system.


9 Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.


10 Automatic DI water fill to humidifying tower.


11 Digital temperature control and readouts.


12 Integral over-protection on all heaters.


13 Low water cut-off protection on humidifying tower

Product Specifications

Control system:

1,Test chamber temperature control: Control the chamber temperature , according to standard, NSS

      AASS test is 35℃,and CASS test is 50℃.

2,Pressure barrel temperature control:Control the saturated air barrel temperature, NSS AASS is

     47℃,CASS test is 63℃.

3,NSS AASS Test:Chamber temperature set 35℃, Pressure barrel temperature set in 47℃(40℃-50℃).

4,CASS test :Chamber tember temperature set 50℃, Pressure barrel temperature set 63℃(60℃-70℃).

      Power switch:Control the whole machine power. Long press for power on or off.

5,Start/stop switch:Control the heating system of test chamber, heat sink and Pressure barrel.

      Spray/pause switch:control the spray system.

6,Defog switch:control defog system, clear the salt mist in chamber after test.

7,Test chamber low water alarm:When the water level is low, the light will flicker . Add pure water into the

      test chamber until the light doesn^,t flicker.

8,Salt water tank low water alarm:When the salt water level is low, the light will flicker.Add salt water into

     the salt water tank until the light doesn^,t flicker.

9,Pressure barrel low water alarm:When the water level is low, the light will flicker.Add pure water into

     the pressure barrel nutil the light doesn^,t flicker.

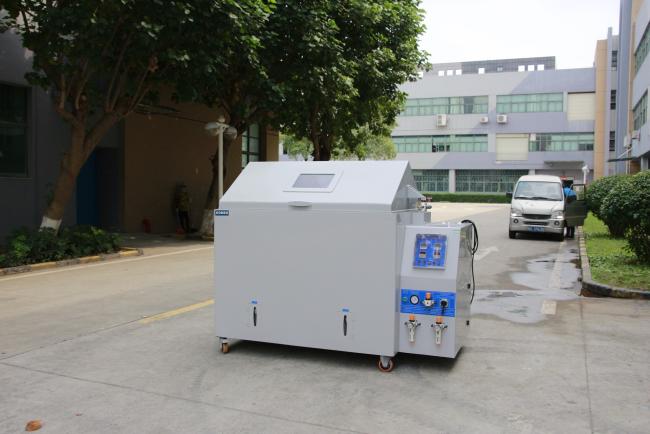

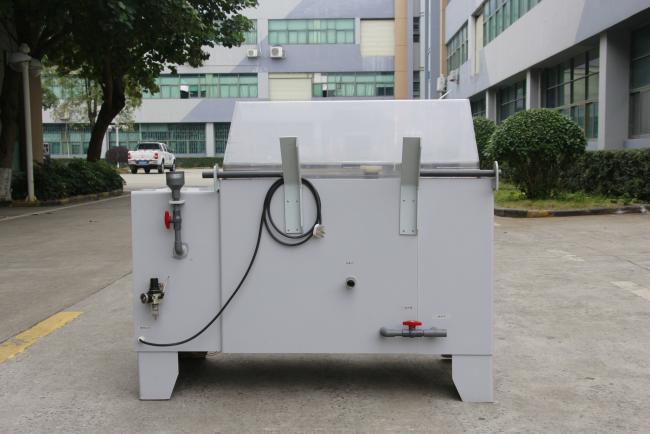

Photos show

FAQ



1. Q: Have your machine met relevant standards, and with relevant TEST CERTIFICATE?



A: Yes, our machines are manufactured according to International Standards. If TEST CERTIFICAT



    required, it can be offered.



2. Q: How-to vedio provided?



A : Yes, if required, our engineers will record a specialize how-to video for you.



3. Q: Is the machine made in your own plant?



A: Yes, welcome to visit our plant(factory), also we support OEM and ODM.



4. Q:How you do the maintenance oversea?



A: In the way you are convenient, by Telephone or E-mail or Vedio meeting etc.





Transport



Depending on the size of the order and its destination, we will find the most efficient way of delivering



your order. Collect shipments through your account at UPS, FedEx, freight forwarder of choice or other



can also be arranged. Let us know of such arrangements with your Purchase Order.



Quotes and Orders do not include customs duties and taxes as they vary from country to country and are



the sole responsibility of the buyer.





Our Services



We are on line 24 hours, your any questions will get timely effective treatment and recovery.
