2 Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber For Test Material TST-500A
2 Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber For Test Material TST-500A
Product Description
2 zones Themral Shock Test Equipment is used to test the bearing extent of the material structures and
composite material in an instant and continuous high temperature and extremely low temperature
environment, can used to test its thermal expansion and contraction caused by chemical change or
physical harm in the shortest time, are widely applied for metal, plastic, rubber, electronics and other
materials and it can be used as an important reference for improving product quality.
Prouduct Features
1. Dedicatetouch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
Prouduct Specifications
| Model | TST-500A | ||||||
| Temp.range | High Temp.chamber | +60 ℃~+200 ℃ | |||||
| pre-heat time | +60 ℃~+200 ℃ Within 20 Min | ||||||
| Low Temp.chamber | (D) -80 ℃~-10 ℃ | ||||||
| pre-heat time | (D) +20℃~-70 ℃ Within 60 Min | ||||||
| Test.chamber | (D) -65℃~+150 ℃ | ||||||
| Recovery time | Exposure 30 min | ||||||
| Exposure 30 min | |||||||
| Recovery time within 5 min | |||||||
| Test weight(kg) | 15 | ||||||
| Basket material (cm) | W | 80 | |||||
| H | 61 | ||||||
| D | 81.5 | ||||||
| Interior material | Stainless Steel Plate(SUS304) | ||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||
| Insulation material | Rigid polyurethane Foam+glass fibre wool | ||||||
| Refrigeration system | Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant | ||||||
| Controllor | Panel Operation model Memory capacity Accuracy Input Comm.port | 7'LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option) | |||||
| Safety Devices | No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector. | ||||||
| Standard Accessories | Shelvesw*2,cable port(portØ50mm)*1 | ||||||
| Ambient Temp | +5℃~+35℃ | ||||||
| Power | AC380±10%50Hz 3phase 4 wires+Groud Wires | ||||||
FAQ:
Why choose us?
1.Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V,
insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free
replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We
can offer operation video and English operation muanual. We can provide video-con
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the
wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has
the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

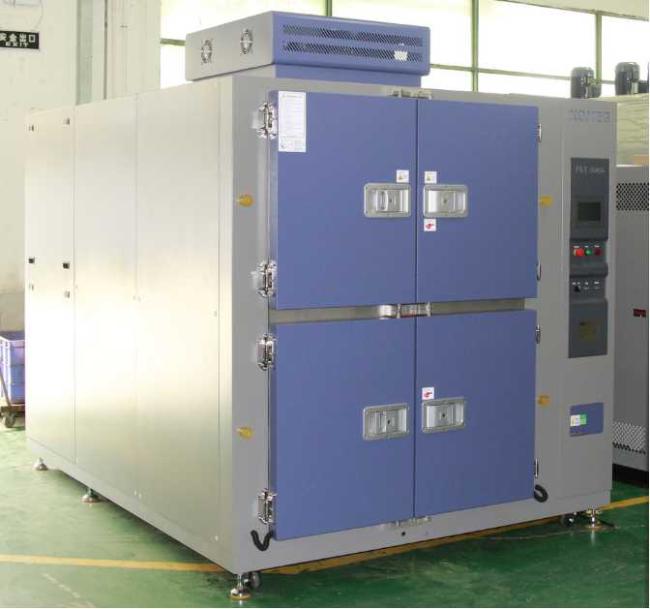

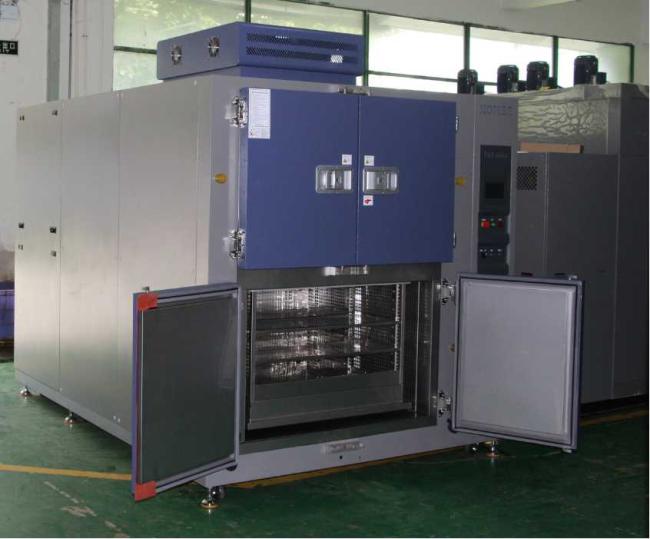

Prouduct Display
