High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance
Description :
High-low Temperature Thermal Shock Chamber For Battery Home Electronic Appliance
ODM and OEM are welcome
Specification:
| High Temp chamber | +60℃ ～ +200℃ |
| Temp Deviation | ≦±2.0℃ |
| Temp Fluctuation | ±0.5℃ |
| pre heat time |
From +60℃ up to 200℃ within 20 min
|
| pre-cool time |
+20℃～ -55℃ within 60min (A style ) From+20℃～ -70℃ within 60min (B style) From+20℃～ -70℃ within 60min (D style) |
| Ambient temp |
+5℃ ～ +35℃
|
| Inside Dimension |
W50XH45XD45cm
|
| Outer Dimension |
W151XH198XD202cm
|
| Cable port |
Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover |
Cooling system
| Compressor |
German Bock /Bizr hermetic compressor
|
| Refrigerant |
Environmental-friendly refrigerant: R404A ,R23 comply with Environmental rules safe and non-toxic
|
| Condenser |
Shell and Tube condenser(Water -cooled)
|
| Evaporator |
Fin-type multi-stage automatic load capacity adjustment, No frost in long-term use of
low temperature and humidity conditions |
| Other accessories |
Use internationally-known brand, such as high precise expansion valve, oil extractor,
dryer and many other accessories. |
| Refrigerant flow control | Adjust energy consumption output and control automatically to the refrigeration system. |
| Refrigeration Technology |
1.Nitrogen welding, two-stage rotary vane vacuum pump, ensure that the internal
cooling system clean and reliable.
2.water tray located at the bottom of the compressor to ensure condensate water
through pipe freely at the rear of the chamber. |
| Sensor |
High precision DIN class A, dry ball φ4.8mm SUS # 304 PT 100Ω
|
Application:
1.Temperature Humidity Test chamber are widely used in testing various types of materials for their tolerances of heat, cold, dry and humidity.
2. It is applicable for quality inspection for all types of electronic products, electric appliance, and products from communication ,instruction , automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
3. Unique shape with high performance material, whether you’re testing aerospace products, electronic instrumentation, materials, electrical and electronic products and various electronic components, our High low alternating temp. humidity test chamber can give you a perfect solution.
For more detail information ,kindly contact : anna@komegtech.com whats app ,wechat :+86-18029096856

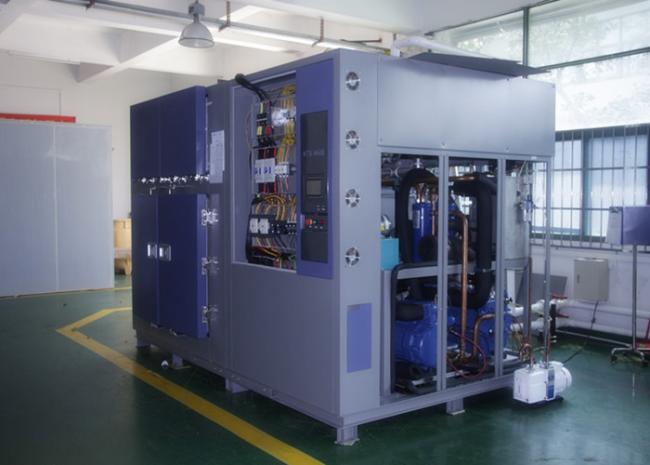

Photos show
