9680L Double Open Door High Reliability Industrial Hot Air Circulating Drying Oven
9680LDouble open door High reliability Industrial Hot Air Circulating Drying Oven
Product Overview
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental
testing equipment and test methods for the basic parameters of electric and electronic products under
the condition of humidity, low temperature, high temperature, and constant heat and damp.
Product Application
Suitable for electrical, electronics, machinery and other products, parts, materials, etc. under high or low
temperature, simulating temperature humidity change conditions on the products, parts, materials quality
and reliability testing.
Product Specifications
| 1. Temperature range | -40～+80℃ |
| 2. Temperature deviation | ±2℃ |
| 3. Temperature Uniformity | ±2℃(no load) |
| 4. Temperature fluctuation | ±0.5℃(no load, central point) |
| 5. Heating up time | -40℃ to +80℃, 2℃/min no load |
| 6. Cooling up time | +80℃ to -40℃, 1.5℃/min no load |
| 7. Humidity range | 40% to 98%R.H. |
| 8. Temperature humidity control range | |
| 9. Humidity deviation |
±3.0％RH (＞75％RH) ±5.0％RH (≤75％RH) |
| 10. Humidity fluctuation | ±2.5％RH (no load) |
| The above specifications is measured in the environment of + 25 ℃, temperature and humidity performance measurement comply with related regulation of IEC60068-3 standard; Sensors placed in the air outlet. | |
| Ⅴ. Chamber Structure | |
| 1. test space dimension | W 2200 × H 2200 × D 2000 mm volume: 9680L |
| 2. external dimension |
Approx. W2500 × H 2600 × D 3750 mm PS: not including external dimensions protruding part |
| 3. Internal material | Stainless steel plate (SUS # 304) |
| 4. External material | External material use sheet metal plating, PE paint |
| 5. Insulation material | High-density rigid Polyurethane foam, PU Panel thickness of 150mm |
| 6. Bottom plate | Chamber bottom plate reinforcement, Bearing capacity: over 3000 KG. |
| 7. Ramp | Ramp: 1 ea, convenient for test samples (Optical fiber cable) access |
| 8. Door |
Double open door, W (1000 + 1000) x H2000mm, With two observation window of W400 x H500mm; With anti-lock buckle, the door can be opened from inside |
| 9. Cable holes | three ψ80mm cable holes, 2 on the left side and 1 on the right side, with rubber stopper and plastic cover |
| 10. Light | Indoor temperature resistance and moisture-proof light * 4 , with explosion-proof lamp shade, on the wall |
| 11. Heating |
Quality nickel-chromium alloy wire electric heaters, Non-contact control mode (SSR). |
| 12. Humidifying |
Stainless steel sheathed heater, steam humidifying, corrosion-resistant, Non-contact control mode (SSR). |
| 13. Water complement system | Water pump supply water automatically |
| 14. R.O. Water Purifier | User need to provide tap water of 1 ~ 2kg / cm2 |
| 15. Pressure Equalizations Port | Test chamber with one pressure equalization port, ensuring the inside and outside pressure balance |
| 16. Test sample |
Optical fiber cable, complete drum in the chamber, Max weight is approx. 2.5 ton |
| Disassembled structure, the chamber consists of two parts: Insulation chamber body, separate refrigerating unit and electric control cabinet. | |
| Ⅵ. Air-conditioning system | |
|
German GEA Bock semi-hermetic compressor |
|
Non-fluorine environmentally friendly refrigerant |
|
Water-cooled, shell-and –tube condenser |
|
Fin-type multi-stage automatic load capacity adjustment |
|
Denmark made desiccant, refrigerant flow window, repair valve |
|
Multi-stage refrigeration system adjustable output control of energy consumption |
|
Condensate water produced by refrigeration system will be collected by the water tray, and drained out together with the condensate generated by test chamber through pipe. |
| Ⅶ. Control System | |
|
Pt100 type platinum resistance |
|
Electronic sensor |
| 2.controller |
KOMEG SAMWONTECH color Touch Screen Controller with PID control parameters setting |
| 3. Display Function |
Temperature and humidity settings (SV) Practical (PV) value can be displayed directly, Execution of the program can display numbers, paragraphs, remaining time and cycles, running time display, Program editing and graphic curve display, Fixed or program operation status display, 9-inch TFT display screen, model of TEMI1900-00/SD/CE/B |
| 4. Display Resolution | Temperature: + 0.01ºC; Humidity: + 0.1%; time: 1min. |
| 5. Setting Range | Temperature can be adjusted based on the working temp. range of the equipment (the upper limit: +5ºC, the lower limit : -5ºC) |
| 6. Operation Mode | Programmable running, constant running and booking boot |
| 7. Program Capacity | 30 + groups on the program editor, each program segment up to 100 times, you can set 100 cycles. |
| 8. Setting mode | Touch type |
| 9. Operating language | English and Chinese optional |
| 10. SD card |
Available for downloading historical curve, data, pluggable Data can be converted to curves, such as Excel file format report. |
| 11. Data collection | RAM with battery protection settings, data can be saved, maximum historical data memory storage is 90 days (when the sampling time is 1min) |
| 12. Power Off Memory Function | Power recovery mode can be set as hot start, cold start and stop |
| 13. Pre-set Function | Boot time can be set freely and machine runs automatically when turning on power |
| 14. Network Connection | Can be connected to Ethernet via professional software, remote control & assistance function and data collection can be achieved through network, multiple machine can be controlled simultaneously |
| 15. Accessory (Standard configuration) | Fault alarm and cause handling prompts, power failure protection, the temperature upper and lower limit protection, timer function (automatic start and automatic stop running) |
Features
● GB-2423. 1-89 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423. 2-89 (IEC68-2-2)Test B: High Temperature Test
● GJB360. 8-87 (MIL-STD. 202F) High Temperature Life Test
● GBJl50. 3 (MIL-STD-810D) High Temperature Test
● GJBl50. 4 (MIL-STD-810D) Low Temperature Test
● GB2423. 3-93(IEC68-2-3)Test Ca: Constant Heat Test

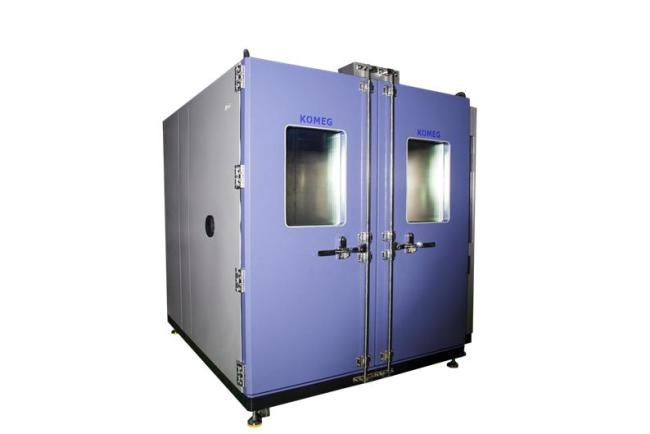

Prouduct Display
Packing and Shipment:
1,Pre-sales service
Before the purchase, our company will provide customers with detailed product-related information, and
welcome you to visit the company and check the goods.
2,After-sales service
After the completion of the transaction, our company will be arranged different after-sales service
according to the ease of the goods , and even arrange work engineers on-site service.
3,Warranty period
Our product warranty is 12 months and we are committed to responding within 48 hours of the problem,
providing a solution.
