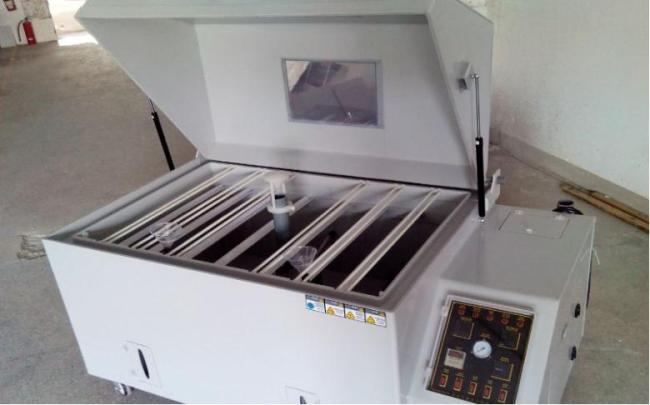

160L Stainless Steel Salt Spray Test Chamber With 6.5-Inch LCD Touch Screen Control
6.5-inch LCD touch screen control 160L stainless steel salt spray chamber
Application
Salt spray test machine is specifically designed for materials surface corrosion resistance testing, these
materials are treated in kinds of paint, coating, plating, antirust oil treated, etc.; widely used in metal,
electro, electronic, chemical, automotive, aviation, aerospace, telecommunications and other industries.
Carrying out corrosion testing for the products of materials and coating, so as to analyze and evaluate
the samples’ performance under specific environmental conditions of marine environment.
Feature
1, Shell of the salt spray test machine is made of 316 Stainless steel;, which are acid, salt high
temperature, and aging resistant .
2, Suitable for salt spray copper acetate and other testing methods.
3, Specified nozzle and tapered diffusion device make mist falling evenly and quickly.
4, Manual or automatic control mode, max, testing time can reach up to 999Hrs.
5, After the completion of the test, can automatically demist. Users can clearly observe the test process
through the transparent cover.
6, Three sets of temperature control systems for air saturated barrel, inner chamber temperature and
test solution temperature ensure the test accuracy and standard.
Specifications
| 1. Chamber Body | |
| Test space size | W 1600 × D 1000 × H 500 mm |
| Overall size | W 2250 × D 1200 × H 1250 mm |
| Power | |
| Power supply | 380V, three phase, 50Hz |
| Weight | |
| Net Weight | Approx. 200kg |
| III. Work environment | |
|
Using the environment temperature humidity |
10℃～35℃; ≤85% |
|
Using water quality |
(1) Test solution deployment - distilled water (pure water) (the PH value should be between 6.5 to 7.2) (2)Other water - tap water |
|
Air pressure setting |
(1) Spray pressure - 1.0 ± 0.1kgf / cm2 (2) Air compressor pressure regulator filter - 2.0 ~ 2.5kgf / cm |
|
nstallation beside the windows, convenient for exhaust and drain |
|
| 3.5 Wearing part | Salt spray nozzle, meter measuring cylinder |
|
Consumables |
Sodium chloride, purified water and tap water |
| IV. Technical parameters | |
|
Laboratory temperature range: +35 ℃ ~ +50 ℃ Saturated barrel temperature: +47 ° C -63 ° C Salt water temperature: +35 ℃ ~ +55 ℃ (match the laboratory temperature) Temperature uniformity: ≤ ±2 ℃ Temperature fluctuation: ≤ ±0.5 ℃ Test time: 0-999 H, M adjustable Settlement: 1-2ml / 80cm2 / h Spray mode: cycle, continuous, program Defogging: exhaust mist by air extrusion Sample holder: meets the standards |
|
| V. Material | |
|
Chamber housing material: A-level 8mm PVC enhanced rigid plastic plate, the surface smooth, and anti-aging, corrosion-resistant; Inner material: 8mm A grade PVC corrosion-resistant plate. Cover material: The cover is made of transparent and impact resistant sheet, which is easy to observe when the test sample is tested. The cover and the box are sealed with water, so as to prevent leakage. Heating: inner sink heating mode, heating up fast, uniform temperature distribution. Three-dimensional observation reagent replenishment slot, you can always observe the consumption of salt water. Well-designed water storage system for water to ensure the smooth and reliable operation. Pressure tank made of SUS304 # stainless steel, the appearance of the electrolytic treatment, excellent corrosion resistance. |
|

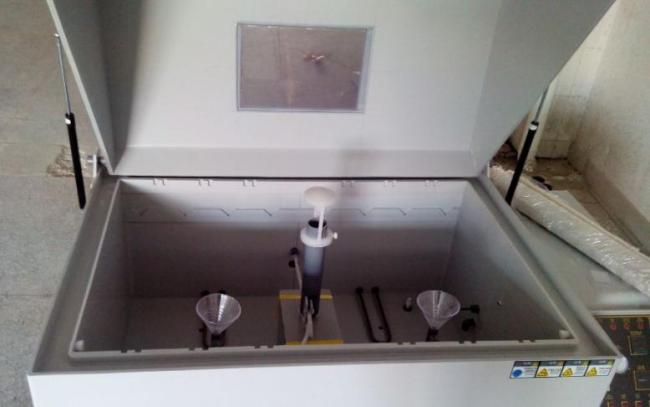

Instruction:
(1) Spray tower
(2) Funnel cup
(3) Touch screen controller
(4) Regulator
(5) Pressure gauge
(6) Metering cylinder
Display
FAQ
1. Q: Have your machine met relevant standards, and with relevant TEST CERTIFICATE?
A: Yes, our machines are manufactured according to International Standards. If TEST CERTIFICAT
required, it can be offered.
2. Q: How-to vedio provided?
A : Yes, if required, our engineers will record a specialize how-to video for you.
3. Q: Is the machine made in your own plant?
A: Yes, welcome to visit our plant(factory), also we support OEM and ODM.
4. Q:How you do the maintenance oversea?
A: In the way you are convenient, by Telephone or E-mail or Vedio meeting etc.
Packing Details
If you are interested in any item of our company, kindly please contact Bella via call at 0086-
13726402801 directly or send your inquiy to annie@komegtech.com for more information and fast
response, welcome to visit us and look forward to serving your needs.
