2200L High Reliability Stainless Steel Temperature Humidity Chamber WIth Single Door
2200L High reliability stainless steel temperature and humidity test chamber
Overview
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental
testing equipment and test methods for the basic parameters of electric and electronic products under
the condition of high temperature.
Application
It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and
materials under the conditions of high and low temperature and high temperature and humidity. For
quality and reliability test of simulating temperature and humidity changes in electrical, electronic,
mechanical and other products, parts and materials.
Prouduct Specifications
| Temperature | ||
| Temperature range | +20℃ ～ +100℃ | |
| Temp Fluctuation | ±0.5℃ | |
| Temp Uniformity | ≦2.0℃ | |
| Ramping and soaking rate |
Heating up rate: 20℃↑ +100℃ 3℃/min (no-load) Cooling rate: +100℃↓20℃ 1℃/min (no-load) |
|
| Temperature and humidity performance test is in accordance with the relevant provisions of the IEC60068 -3 standard measurement; sensor placed in the unit outlet. | ||
| Chamber Structure | ||
|

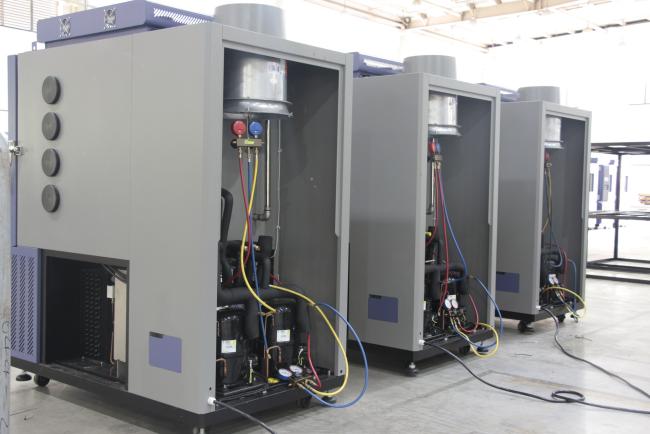

Overall structure and chamber was composed of three parts as below. Insulation box, separate refrigeration units, and electrical control cabinet. |
||
|
Chamber size |
Workspace volume: W 1100 × H 2000 × D 1000 mm Exterior size: about W 1600 × H 2345 × D 1990 mm |
|
| Insulation box |
Wall material: high-quality carbon steel with static color spray Inner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
|
|
Door |
Single door, left open. Heating wire was installed at the door frames to prevent condensation at low temperatures. | |
| Observation window | With observation window (W 340×H 500mm), multi-hollow electric insulation coated glass prevent condensation effectively | |
| Lighting device | 11W/AC220V *1 located on observation window | |
| Heating |
High quality nickel-chromium alloy wire electric heaters, Non-contact control mode(SSR) |
|
| Water outlet hole | Available for drain the condensate water | |
| Cable port | Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover | |
| Shelf for samples | No | |
| Mobile Casters | Mobile Casters *4 with foot cups | |
| Electric control box | Total power circuit breaker, over-temperature protection. | |
Environmental test chamber Standard
● GB-2423.1-2008(IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F)High Temperature Life Test
● GBJl50. 3 (MIL-STD-810D) High Temperature Test
● GJBl50. 4 (MIL-STD-810D) Low Temperature Test
Display
