China Rapid Temperature Change Environmental Stress Screening ( ESS ) Test Chamber for sale

Rapid Temperature Change Environmental Stress Screening ( ESS ) Test Chamber

Price Negotiable

Price: Negotiation

MOQ: 1pcs

Delivery Time: 35 day after confirm the order

Brand: Komeg

Product Description

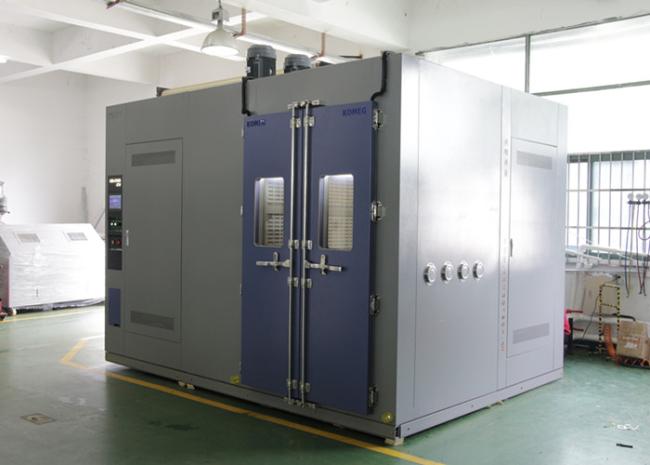

Rapid Temperature Change Environmental stress screening (ESS) test chamber

OEM &ODM are welcome ,more information , pls kindly contact : anna@komegtech.com

Specifications

It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and materials under the conditions of high and low temperature and high temperature and humidity. For quality and reliability test of simulating temperature and humidity changes in electrical, electronic, mechanical and other products, parts and materials.

Model no	ESS-408L-C3
Interior volume	408L, different capacity as your requirements
interior dimension	W70XH75X D80CM
Heat up rate	From -40℃ ↑ +80℃ Nonline 3℃/min(No load )
Temp range	-40℃ - +150 ℃
Temp fluctuation	+-0.5℃
Cooling down time	From +80℃ down to -40℃ Nonline 3℃/min(No load )
Interior material	SUS304
Heating	High quality nickel-chromium alloy wire electric heaters, Non-contact control mode(SSR)
Electric control box	Total power circuit breaker, over-temperature protection.

Temperature controller

Sensor	High precision DIN A class,Dry ball φ4.8mm SUS #304 PT 100Ω
Controller	Color touch screen controller with PID control
Display function	Temp and humidity setting (SV) The actual (PV) value is displayed directly; Support executive program number, Paragraph, remaining time, number of cycles, running time display; Program editing and graphical curve display; Fixed point or program action status display; 7-inch resolution: 800 * 480, 65535 true color, LED backlight display screen.
Control resolution	Temp: + 0.01℃；Humidity: + 0.1%；time: 0.01min
Setting range	Temp Condition:–100～200 ℃； According to the temperature of the chamer to adjust the working range (upper limit +5 ℃, lower limit -5 ℃) Humidity Condition:0～100 %RH
Operating mode	Programmable running, constant running
Program capacity	Running time up to 999999 h 59 m (also can be set to continue running without time limit); Available program capacity: up to 269 groups, a total of 13450 paragraphs; Usable memory capacity: 50 steps per group; Repeatable commands: Up to 32000 cycles per command
Setting way	Man-machine dialogue mode, using touch input and control
Communication Interface	RS-232,RS-485 and Ethernet. Data collection and curve display when connected with a computer Can be used as monitoring and remote control system Multi machines synchronization control available
U Disk Memory Card	1G-8G available for downloading historical curve and data, pluggable
