Industrial Drying Ovens Vacuum Pump High Temperature Chamber For Research
Industrial Drying Oven Vacuum Pump High Temperature Chamber For Research
OEM &ODM are welcome , kindly contact:anna@komegtech.com
Description
Vacuum drying oven combines utimate vacuum pump, cabinet, workroom, electric heater and digital thermometer together to proceed high-temperature tests, heat processing and drying under setting vacuum environment. Such an oven is widely applied in vacuum drying process of pharmaceutical, chemical, electronics, material and components.
Technical Specification
| Model | KOV-50 | KOV-100 | KOV-200 | KOV-290 | KOV-500 |
| Interior size (W*H*D)mm | 400*350*350 | 450*500*450 | 600*600*600 | 600*950*500 | 800*1050*600 |
| Exterior size (W*H*D)mm | 1010*650*760 | 1110*800*1100 | 1260*900*1100 | 870*1590*640 | 1160*1760*880 |
| Capacity(KVA) | 3.5 | 3.5 | 4.5 | 4.5 | 6 |
|
Model
|
KOV-600 | KOV-720 | KOV-1000 | KOV-1800 | ||||||||||||||||||||
| Interior size (W*H*D)mm | 1000*1000*600 | 900*1000*800 | 1000*1000*1000 | 1600*1400*600 | ||||||||||||||||||||
| Exterior size (W*H*D)mm | 1360*1720*880 | 1300*1750*1000 | 1300*1750*1000 | 1600*1940*1200 | ||||||||||||||||||||
| Capacity(KVA) | 6.5 | 7.5 | 8.5 |
9.5
|
||||||||||||||||||||
| Power |
AC 380V±10% 3Φ4wire 50Hz/60Hz
|
|||||||||||||||||||||||
| Temp. range |
50 ºC~ 200 ºC( 300 ºC)
|
|||||||||||||||||||||||
| Temp. constancy |
±1.0 ºC
|
|||||||||||||||||||||||
| Temp. uniformity |
±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC)
|
|||||||||||||||||||||||
| Heat up time |
50 ºC to 200 ºC within 50 min
|
|||||||||||||||||||||||
| Interior material |
Stainless steel plate
|
|||||||||||||||||||||||
| Exterior material |
Painted Stainless steel plate
|
|||||||||||||||||||||||
| Insulation material |
Glass wool
|
|||||||||||||||||||||||
|
Safety devices
|
No fuse breaker, over temp protection, ceramic fuse | |||||||||||||||||||||||
|
Accessories
|
Recorder, insolating layer
|
|||||||||||||||||||||||
|
Note: 1. We reserve the right to change specifications without prior notice
Other specification
Feathers :
Meet GB5170.2.3.5.6-95 standard requirements of environmental testing equipment and test methods. This type of product can meet the following criteria: ● GB-2423．2-89(IEC68-2-2)Test B: High Temperature Test ● GJB360．8-87(MIL-STD．202F) High Temperature Life Test ● GBJl50．3(MIL-STD-810D) High Temperature Test |
||||||||||||||||||||||||
|

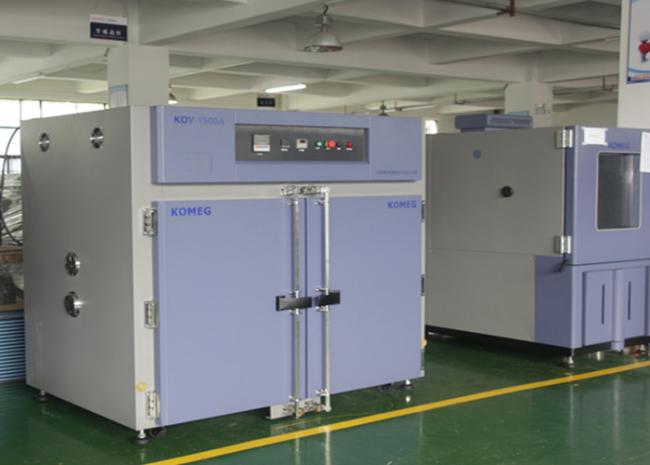

Photo show
|
