SUS304 Stainless SteelSingle Door 200L 2-Zone Thermal Shock Test Equipment
Stainless steel single door 200L 2-zone thermal shock chamber
Applications
2-zone Thermal shock chamber have been designed to operate in accordance with reliability programs,
quality control, commercial test programs and medical tests. It is used to test the capability of material
structure or composite material to withstand the continuous environmental changes between extremely
high temperature and low temperature during a short period. It is applicable to metals, plastic, rubber,
electronics amongst other materials. The test result can be used as a reference or basis for produce
improvement.
Specifications
| Blanket Capacity | 200L | ||
| Blanket Dimension | W 800 × H 410 × D 610 mm | ||
| Overall Dimension | W1850×H2200×D2310 mm | ||
| Specifications | |||
| Ambient Condition | Cooling Water +25℃, Ambient Temperature +5℃ to +30℃ | ||
| High Temperature Range | +60℃～＋200℃. | ||
| Temperature Increasing Time | +60℃～＋200℃≤25min. | ||
| Low Temperature Range | -75℃～-10℃ | ||
| Low Temperature Cooling Time | +20℃～-70℃≤90min. | ||
| Sample Moving Time | ≤10min | ||
| 2Temperature Shock Time |
High Temperature +60℃～＋150℃, Low Temperature:-55℃～-10℃. |
||
| Temperature Accurcy | ±0.5℃. | ||
| Temperature Uniformity | ±2.0℃. | ||
| Temperature Recovery Time |
≤5min； +150℃:15 Min； -55℃:15 Min； Sample Weight:10kg Aluminum Material |
||
| Construction: | |||
| Housing: |
Out Housing:Carbon Steel Plate with color plastic painting； Inner Housing:SUS304#Stainless Steel； Heat Isolating: Rigid Polyurethane Foam and Fiberglas |
||
| Air-Conditioner Channel | Fan, Heater, Evaporator and temperature sensor | ||
| Accessories |
Testing Cord Hole: 1*50mm； Testing Shelf: 2； Testing Blanket:1 with 10kg capacity |
||
| Stand and Wheel |
Stands: 4pcs adjustable for chamber standing； Wheels: 4pcs adjustable for moving the chamber |
||
| Door | Single Side open with right handle | ||
|
Fans Low Temperature High Temperature |
3￠ 1hp； 3￠ 1hp |
||
| Control Pannel | Control Monitor, Defective indictor, USB Port, Power Switch, RS-485 Port | ||
| Mechanical Room | Cooling System, Drainage System, Fans | ||
| Power Cabinet | Power Leakage Breaker, Controller, Power Panel, Heat releasing Fan, High and Low temperature circulating motor | ||
| Heater |
Nichrome Heating cords； Heater Control: Non-contact cycle Width-modulated pulse SSR |
||
| Blanket Driving Mode | Turbine deceleration Motor with rack transmitting | ||
| Blanket and door locker | Both blanket and door have lock protecting device. When the chamber is running, chamber door are locked and can not be open. Only when the chamber stopped working and the blanket are locked, the chamber door can be opened. When chamber door opened, blanket are locked and can not be moved to avoid any damage to the operator. | ||
Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150

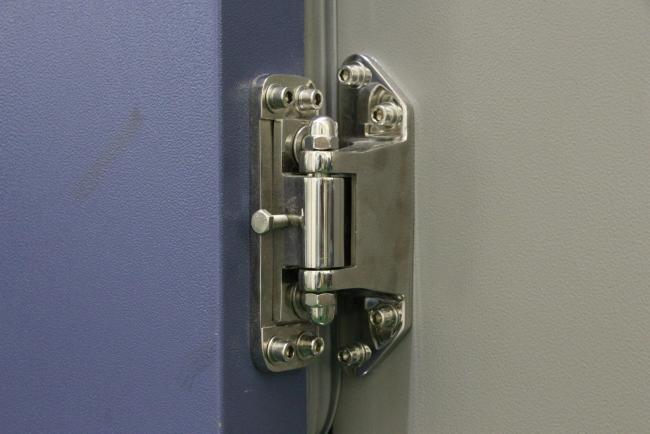

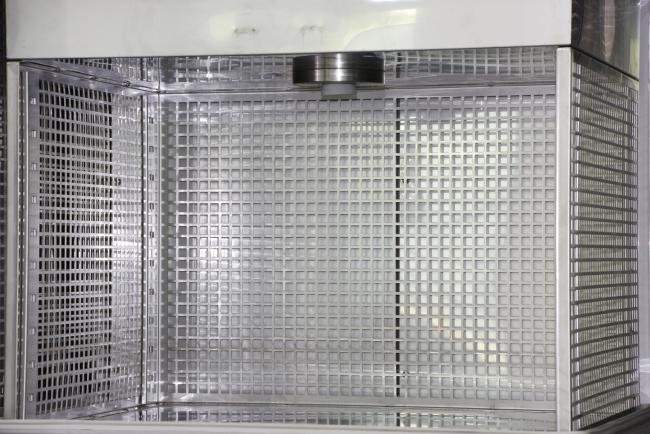

Prouduct Display
