Single Open Left Hinge Right Handle 64L Stainless Steel 3-Zone Environmental Test Chamber
Stainless steel with a protective device 500L 2-zone thermal shock chamber
Working Principle
This is so called three-zone type thermal shock test chamber.
Sample is placed in the test chamber, more extreme temperature than test temperature can be set in
high-temperature chamber and low-temperature chamber. When it comes to low temperature test, cold
chamber door open, and low-temperature chamber working together with test chamber.
When converted into high-temperature test, cold chamber door closed, hot chamber door are opened,
and test chamber working together with high-temperature chamber.
Conversion of mechanical action (transferring from high temperature to low temperature or low
temperature to high temperature) can be completed in less than 1second, and the temperature can be
quickly stabilized.
During the whole test, test sample is no need to be moved, and without any human intervention.
Specifications
| Size and Weight | |
| EX. Dimension | W1350 × H1685× D1620 mm |
| Basket Size | W400 × H400 × D400 mm |
| Volume | 64L |
| Weight | 1050KG |
| Environment | Ambient Temp. +25℃,relative humidity≤85％,no-load |
| Recovery time |
High temperature exposure:30mins Low temperature exposure:30mins Defrost one time every 100 cycles |
| Structure | |
| 2High Temperature Chamber Zone | |
| Temp. Range | 60℃～＋200℃ |
| Heat up Time | Ambient Temp. to ＋200℃ within 15mins |
| Remark:Heat-up time refers to high temp. Chamber working with no load. | |
| Low Temperature Chamber Zone | |
| Temp. Range | -70℃～-10℃ |
| Pre-cool Time | +20℃. to -70℃ within 60mins |
| Remark:Pull-down time refers to high temp. chamber working with no load | |
| 2.3 Testing Chamber Zone | |
| Thermal Temp. Range | (+60℃～＋150)℃/(-55℃～0)℃ |
| Temp. Constancy | ±0.5℃ |
| Temperature stability | ±2.0℃ |
| Transfer Time | ≤5mins |
| Recovery time |
≤5min； High temp. exposure: +125℃:30mins； Ambient exposure: 5mins； Low temp. exposure: -40℃:30mins； Test weight: 10kg. Samples: plastic encapsulated IC ( uniform ) Sensor location: the weather side (upwind side) of the samples； |
| Structure Features | |
| Insulation enclosure Structure |
Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing Inner wall material:Stainless Steel Plate SUS304 Body insulation material:Rigid polyurethane Foam + glass fiber Door insulation material:Glass fiber |
| Air conditioning Channel |
Low temp. area:fan,heater,evaporator,temperature sensor High temp. area:fan,heater,temperature sensor |
| Standard configuration |
Lead hole: 2, located in the left side of the box, size ¢ 50mm round hole (the right side of the original pneumatic andCircuit); Sample shelves: 2; Each load capacity (evenly): 5kg. Moving castor:4 pieces |
| Chamber door | Single open, left hinge, right handle |
| Circulating Fan |
High temp. area:3φ,1500W,centrifugal； Low temp. area:3φ,750W,centrifugal； |

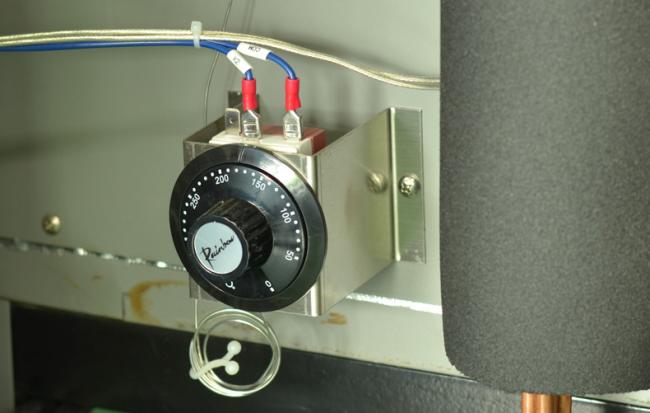

| Control panel | Temp. control screen,over temperature protection setting device,running lights,failure indicating lamp,buzzer. |
| Mechanical room | Refrigerating unit,drainage device,switch gear(ARTU),high and low temp. cycling fan,blower |

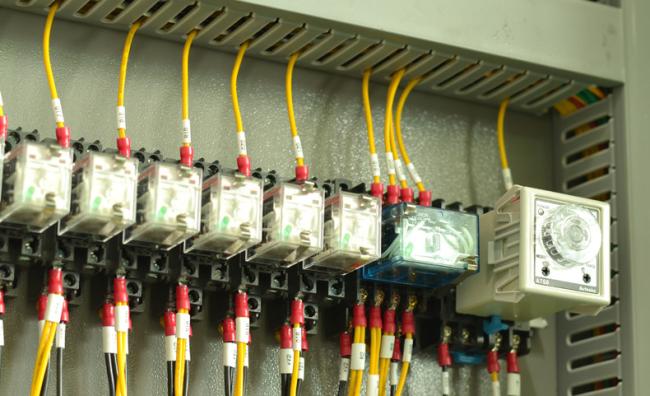

| Switch gear (ARTU) |
Cooling fan Switchboard Sample test terminal RS-485 physical interface(should be purchased with centralized monitoring software) Total power leakage circuit breaker |
| Heater |
Nickel - Chromium Alloy Wire heater Heater control mode:no-contact, such as pulse width modulation,SSR(solid-state relay) |
| Refrigeration System | |
| Working mode | Water-cooled and mechanical compression cascade refrigeration way |
| Compressor | Imported piston compressor |
| Evaporator | Finned heat exchange |
| Throttling gear | Thermal expansion valve, capillary |
| Evaporative Condenser | Plate heat exchanger |
| Water cooled condenser | Plate heat exchanger |
| Refrigerator Control Mode |
PLC(Programmable Logic Controller) of control system automatically regulate operation condition according to testing conditions. Compressor air cooling loop back |
| Refrigerant | R507A/R23. |
| Others |
Compressor cooling fan； Circulating cooling water filter(On-site Installation ).
|
Standards Met and Implemented:
|
● GB-2423．1-89(IEC68-2-1)Test Mode A:Low Temperature Test
● GB-2423．2-89(IEC68-2-2)Test Mode B:High Temperature Test
● GJB360．8-87(MIL-STD．202F)High Temperature Life Test
● GBJl50．3(MIL-STD-810D)High Temperature Test
● GJBl50．4(MIL-STD-810D)Low Temperature Test |
