270L Single Door Stainless Steel Industrial Drying Ovens For Reliability Test
270L Single door stainless steel industrial drying ovens for reliability test
Product Overview
This series is applicable to the reliability test and production of industrial products, with the characteristics
of high temperature control accuracy and wide control range, performance index accords with
GB5170.2.3.5.6-95 "electrical and electronic products environmental testing equipment basic parameter
calibration method of high temperature test equipment” required standards.
Specifications
| Chamber | ||
| Workspace volume | IW 600 × IH900 × ID 500 mm | |
| Exterior size | EW 1000 × EH 1700 × ED 795 mm External dimensions excluding protruding parts | |
| Temperature: | ||
| Temp range | +60℃～300℃ | |
| Temp fluctuation | ±0.5℃ | |
| Temp Uniformity |
±2.0℃ (RT+60℃ ～ +100℃) ±3.0℃ (+101℃ ～ +200℃) ±4.0℃ (+201℃ ～ +300℃) |
|
| Heat up time | RT+60℃ ～ +300℃ Non-linear 5℃/min no load | |
| Control Method | PID+SSR output | |
| Control precision | ±0.5% | |
| Door gasket | Silicone, single door, With windows W 300 x H 300mm | |
| Air supply mode | Forced air circulation | |
| Chamber Structure | ||
|
Overall structure and chamber was composed of three parts as below. Insulation box, separate refrigeration units, and electrical control cabinet. |
||
| Insulation box |
Outer wall material: Cold paint inner wall material: SUS201 # matte stainless steel plate Insulation materials: glass wool |
|
| Heater | Fins heat pipe stainless steel heater | |
| Temp. controller |
South Korea imported thermostat ST-570 Achieve high accuracy (0.1%), high performance Support for multiple input (T / C, RTD, DCV) Multi-output and simultaneous output (Max 4 points) The parameters of the operation is simple, available text settings Supports the Overshoot function Alarm output 1 point Auxiliary output status of the operation screen display Interval input adjustment function (Max 4 Zone) To achieve the control of heating, cooling function PID auto adjustment function (AT Gain) Support for multiple communication protocols (Modbus, etc.) Achieve high quality, high reliability (CE, CUL, ISO, etc.) |
|
| The thermometric body | K thermoelectric pair | |
| Inner box light | NO | |
| Test stand Material | Stainless Steel Part 2 (Highly Adjustable) Load 30kg | |
| Accessories | Power line 3 meters | |
| Power supply | AC 3ψ4W 380V 50Hz (R, S, T, N plus ground wire) (voltage fluctuation ≦ ± 10%) | |
| Machine total weight | ≤1000kg | |
|
PS.1. Customers are required to bring their own equipment with a special no fuse switch. 2. The machine enters the doorway or the passageway elevator, etc. Please confirm whether it can enter. |
||
Features
GB-2423．2-89(IEC68-2-2)Test B: High Temperature Test
GJB360．8-87(MIL-STD．202F) High Temperature Life Test
GBJl50．3(MIL-STD-810D) High Temperature Test

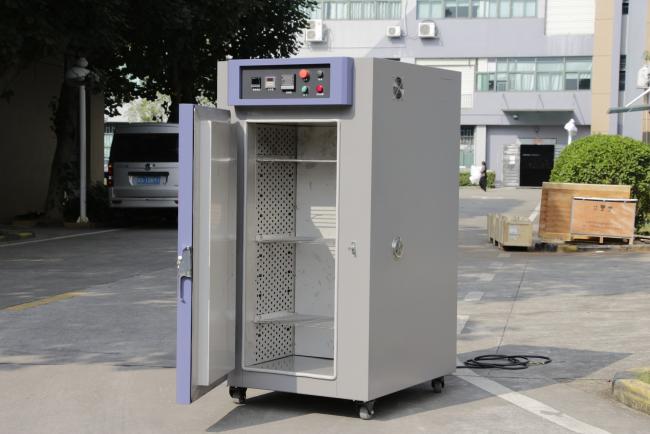

Product picture
Packing and Shipment:
1,Pre-sales service
Before the purchase, our company will provide customers with detailed product-related information, and
welcome you to visit the company and check the goods.
2,After-sales service
After the completion of the transaction, our company will be arranged different after-sales service
according to the ease of the goods , and even arrange work engineers on-site service.
3,Warranty period
Our product warranty is 12 months and we are committed to responding within 48 hours of the problem,
providing a solution.
