Temperature Humidity Combined Vibration HASS 3 In One Integrated Test Chamber For Oil
Application
The temperature and humidity vibration test chamber is suitable for aerospace products, information
electronic
instruments and meters, materials, electricians, electronic products, and various electronic vitality
elements under the conditions of temperature, humidity, vibration, and environment.
Features
● Combined laboratory structure and refrigeration system as a whole, compact and beautiful, easy operation.
●Refrigeration compressor, LCD touch screen and main parts are imported brand, equipped with RS232 communication interface.
●Good mechanical transmission and match different types of vibration table.
Specification
| Model No | KMVH-1000S |
| Working chamber volume ( L ) | 1000L |
| Interior size ( W*H*D ) mm | W 1000 x H 1000x D 1000 |
| Ambient temp | +5 ºC~ +35 ºC |
| Temp range | -70 ºC~ +150 ºC |
| Temp constancy | ≤0.5 ºC |
| Temp uniformity | + - 2.0ºC |
| Humidity constancy | ±2.5%RH |
| Humidity range | 20%RH-98%RH |
| Humidity uniformity | If humidity≤75%RHJ, ±3.0%RH ; f humidity > 75%RHJ, ±5.0%RH |
Other specification
| Cooling rate |
≤5 ºC /Min or ≤10 ºC /Min ( -55 ºC~ +80 ºC within humidity range )
|
| Interior material |
Stainless steel plate(SUS 304)
|
| Exterior material |
Baked painting steel or stainless steel(SUS304)
|
| Insulation material |
Rigid polyurethane foam
|
| Temp regulating mode |
Balanced Temperature & Humidity Control System ( BTC )
|
| Cooling mode |
water cooled
|
| Sight window |
470mm*350mm Glass incorporating heat generator
|
| Controller |
Touch screen programmable controller
|
| Shaking table |
custom as requested
|
| Safety device |
Over temp. protection, over load protection for blower,
pressure
over heat and over current protection for compressor |
Cooling System
The temperature and humidity vibration test box refrigerator adopts the French original Schneider closed compressor.
The refrigeration system uses a unit or binary cold circuit system design.
American "Education" dry filter, Taiwan "Guanya" oil separator, Italy "Castery" solenoid valve
The multi-blade air blower is used for strong air circulation to avoid any dead angle and to make the
temperature and humidity distribution in the test area even.
The air circulation and air return design of the air circulation system, the wind pressure and wind speed all
meet the test standards, and it can make the temperature and humidity of the door open to stabilize
quickly.
Warming, cooling, and humidifying systems are completely independent to increase efficiency, lower test
costs, increase life, and reduce failure rates.
The reasons why class enterprises choose us
1. We appreciate you, the customer, and we always treat our customers with the greatest consideration
and courtesy.
2. We'll be here tomorrow. Our business has been headquartered in Shenzhen, Dongguan for over twenty
years. We are one of the largest independant environment test equipment manufacturers in China.
3. We'll do our best to remedy any problem you might have with a purchase. We are old fashioned in our
customer service; We believe we have an obligation to give you our best if you purchase from us.

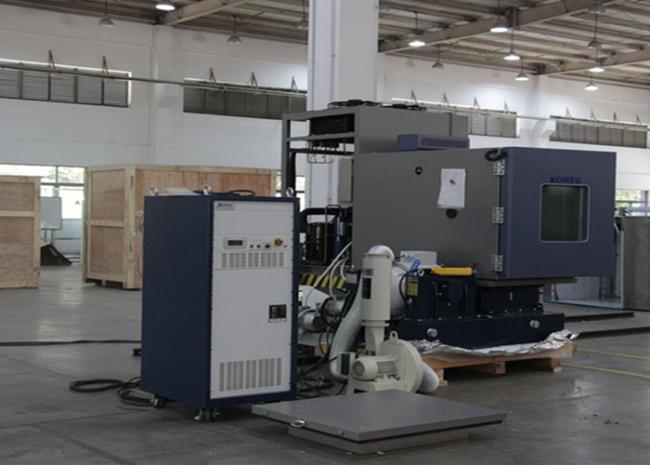

Photos show
