2 Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber with 7"LCD toch panel
2 Zones Thermal Shock Test Chamber / High Low Temperature Test Chamber with 7"LCD toch
panel
Product Description
Thermal shock test is a method of environmental testing that subjects a product to alternating extremes
of high and low temperatures. Thermal shock testing allows for the observation of changes in product
characteristics and failure occurrence caused by different materials and their thermal expansion
coefficients. A thermal gradient difference in the different parts of the object expands by different
amounts and can cause cracking and failure. KOMEG brand thermal shock and thermal stress chambers
have been designed to operate in accordance with reliability programs, quality control, and commercial
test programs and military test.KOMEG offers several configurations of thermal shock chambers capable
of meeting a wide variety of testing needs.Vertical, two zone chamber has hot and cold zones that can be
controlled independently.Horizontal, three zone thermal shock chamber utilizes controlled areas for hot,
ambient and cold temperatures.Double duty thermal shock chambers from KOMEG are designed with hot
zones above and below the cold zone and a two compartment product carrier that simultaneously moves
products between the hot and cold zones.
Prouduct Features
Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing
Inner wall material:Stainless Steel Plate SUS304
Body insulation material:Rigid polyurethane Foam + glass fiber
Door insulation material:Rigid Polyurethane Foam + Glass fiber
Prouduct Specifications
| Model | TST-300D | ||||||
| Temp.range | High Temp.chamber | +60 ℃~+200 ℃ | |||||
| pre-heat time | +60 ℃~+200 ℃ Within 20 Min | ||||||
| Low Temp.chamber | (D) -80 ℃~-10 ℃ | ||||||
| pre-heat time | (D) +20℃~-70 ℃ Within 60 Min | ||||||
| Test.chamber | (D) -65℃~+150 ℃ | ||||||
| Recovery time | Exposure 30 min | ||||||
| Exposure 30 min | |||||||
| Recovery time within 5 min | |||||||
| Test weight(kg) | 15 | ||||||
| Basket material (cm) | W | 80 | |||||
| H | 61 | ||||||
| D | 81.5 | ||||||
| Interior material | Stainless Steel Plate(SUS304) | ||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||
| Insulation material | Rigid polyurethane Foam+glass fibre wool | ||||||
| Refrigeration system | Semi-hermetic compressor,cascade refrigeration system,CFC free referigerant | ||||||
| Controllor | Panel Operation model Memory capacity Accuracy Input Comm.port | 7'LCD Toch panel,Chinese or English display selectabile Program or fix point rinning 120programs,120steps,all repeat999cycles,part99cycless. Temp:0.1%of F.S±1 digit Humidity:0.1%of F.S±1 digit Temp:pt-100 Humidity:pt-100 or ~5V DCV RS-232 or RS-485(Softawre is option) | |||||
| Safety Devices | No fuse breaker,over pressure, over heat and over current protectors for compressor,over temp.protector, over load protectorof fan,dry heat protector. | ||||||
| Standard Accessories | Shelvesw*2,cable port(portØ50mm)*1 | ||||||
| Ambient Temp | +5℃~+35℃ | ||||||
| Power | AC380±10%50Hz 3phase 4 wires+Groud Wires | ||||||
Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150
Main features of Thermal test chamber:
Direct-drive system for reliable transfer between zones
Compact design with integrated mechanical refrigeration
Two specimen baskets
Includes caster and leveling pads for easy movement
Designed for performance with maximum load
Packaging:
2-zone Thermal Shock Test Chamber are covered with air bubble film before put them into the strong
plywoodcase, which not only has good shock absorption, impact resistance, heat sealing and also has
the advantages of nontoxic, odorless, moisture corrosion, crash-proof, etc.

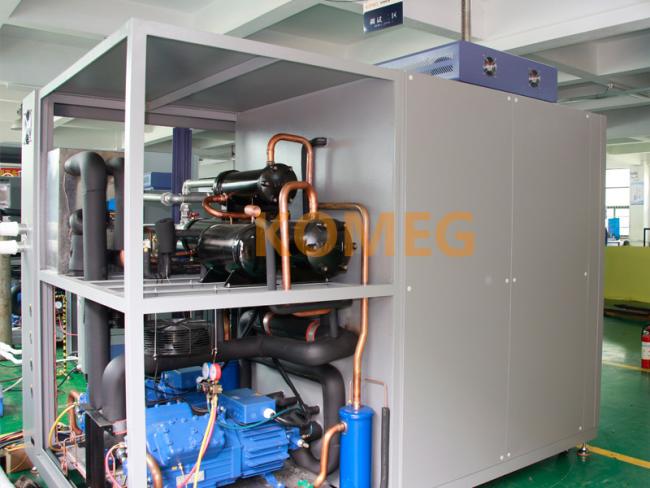

Product details
After-sales Service and Training
Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty
period, the user will be charged properly. Irregular examination and life-long service are available;
Note: If needed, provide 2 operators for on-site installation and training
