GB-2423.1-2008 Laboratory Exploration Proof Battery Test Chamber
Exploration Proof High And Low Temperature Test Chamber , Laboratory Test Chamber
Product Features:
It is suitable for high temperature testing of power batteries, electronics, machinery and other products, components, materials, etc., and testing of quality and reliability of products, components and materials under simulated temperature changes.
| Ⅰ. Product Overview |
| Able to accurately simulate a wide range of complicated natural environments, and is suitable for reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental testing equipment and test methods for the basic parameters of electric and electronic products under the condition of low temperature, high temperature, and constant heat. |
| Ⅱ. Application |
| Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc.. |
| Ⅲ. Features |
|
● GB-2423.1-2008(IEC68-2-1)Test A: Low Temperature Test ● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test ● GJB360.8-2009(MIL-STD.202F High Temperature Life Test ● GJBl50.3-2009(MIL-STD-810D) High Temperature Test ● GJBl50.4-2009(MIL-STD-810D) Low Temperature Test |
|
Main Technical Parameters(Performance: air-cooled, room temperature +25 ℃, no-load) |
|
|
1. Temperature |
|
|
1. Temperature range |
+20℃ ～ +150℃ |
|
2. Temp Deviation |
±2.0℃ |
|
3. Temp Fluctuation |
±0.5℃ |
|
4 .Temp Uniformity |
≦2.0℃ |
|
5. Heating rate |
+20℃ ↑ +150℃ 5℃/min(no-load, environmental temperature +25℃) |
|
Performance test of temperature and humidity is according to the relevant provisions of the IEC 60068-3 standard; the sensor is placed in the unit outlet. |
|
|
Chamber Structure |
|
|
Overall structure and chamber was composed of three parts as below. Insulation box, separate refrigeration units, and electrical control cabinet. |
|
|
1.Dimension of the chamber |
Interior size: W 700 × H700 × D 480 mm Exterior size: W 900 × H 1735 × D 1505 mm External dimensions excluding protruding parts |
|
2. Insulation box |
※ Wall material: high-quality carbon steel with static color spray ※ Inner wall material: SUS304 # matte stainless steel plate ※ Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
|
3.Door |

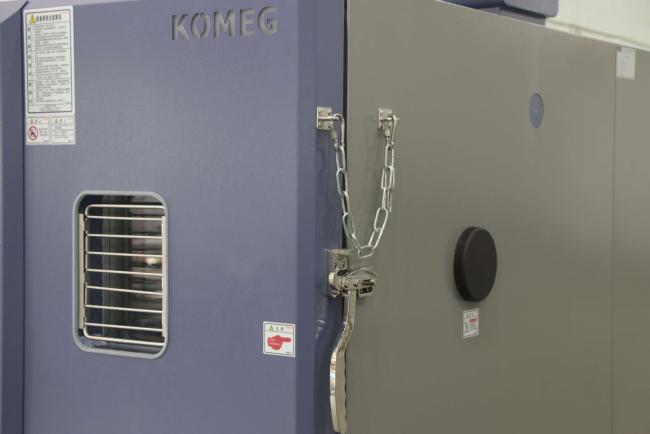

※Single door, open on the left, explosion-proof handle, heating wire was installed at the door frames to prevent condensation at low temperatures. ※Two explosion-proof chains are added on both sides of the door, and the chain is longer. When the door is blasted, the door can be opened a little.The internal air pressure is quickly released, but it cannot be ejected. |
Product Information
|
Model |
KMT-32L |
KMT-64L |
KMT-150L |
KMT-225L |
|
Interior Dimension(cm) |
W30*D30*H40 |
W40*D40*H40 |
W60*D46*H60 |
W70*D48*H70 |
|
Overall Dimension(cm) |
W46*D102*H78 |
W60*D122*H155 |
W80*D148*H163 |
W90*D150*H173 |
|
Machine Weight(Kg) |
120 |
160 |
220 |
280 |
|
Model |

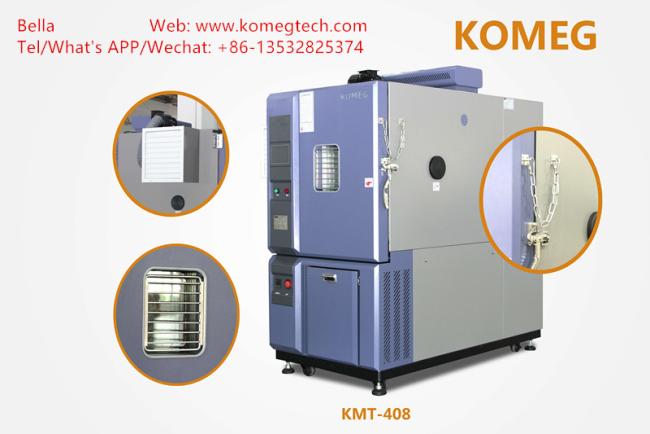

KMT-408L |
KMT-800L |
KMT-1000L |
Customized model |
|
Interior Dimension(Cm) |
W70*D80*H75 |
W100*D80*H100 |
W100*D100*H100 |
Any inner size As what you want |
|
Overall Dimension(Cm) |
W90*D182*H178 |
W120*D181*H203 |
W120*D201*H203 |
|
|
Machine Weight(Kg) |
350 |
420 |
500 |
|
|
Parameter |
Temp.Range |
-70℃~+150℃ or -40℃~+150℃ |
||
|
Temp.Fluctuation |
±0.5℃ |
|||
|
Temp.Uniformity |
±2℃ |
|||
|
Cooling Rate |
0.7-1℃/min |
|||
|
Heating Rate |
1.0-3.5℃/min |
|||
|
Air cooled or water cooler for choose |
|
|||
|
USA Honeywell environmental protection refrigrnat(R23+R404) |
|
|||
|
French tecumseh(imported from French) |
|
|||
|
Cooling Model |
-40℃ chamber with one compressor |
|||
|
Freezing Fluid |
-70℃ chamber with two stage compressor |
|||
|
Compressor |
Automatic water refill, periodical feeding,manual water refill is available |
|||
|
Hermetic compressor imported from Europe and the United States |
||||
|
|
||||
|
Water Provide Way |
Hermetic compressor imported from Europe and the United States |
|||
