300L 3 Zone Thermal Shock Test Equipment With LCD Touch Screen Controller
300L 3 Zone Thermal Shock Test Equipment With LCD Touch Screen Controller
Applications
The use of low temperature and high temperature thermal storage tank, according to the
need to open the DAMPER, achieve a rapid shock impact; balance temperature control system
(BTC), PID control SSPR, the system heat equal to the amount of heat loss so that can be
long-term stability usage.
Specifications
| Ⅱ. Main Technical Parameters:(Water Cooled,Water temperature+25℃,no load ) | ||
| 1. High Temperature Cabinet |
+60℃ ～ +150℃ | |
| 2. Low Temperature Cabinet |
-55℃ ～ -10℃ | |
| 3. High Temperature Cabinet setting range |
+60 ～ +200℃ | |
| 4. High Temperature Cabinet setting range |
-70℃ ～ -10℃ | |
| 5. Low Temp.chamber pull down time | From +20℃ ～ -70℃ 60min | |
| 6. Shock recovery time |
-55℃ ～ +150℃ about 5min (with load IC 15kg) |
|
| 7. High and low temperature shock constant temperature |
Above 30min | |
|
8. Temperature |
±0.5℃ | |
| 9. Temperature deviation |
±2.0℃ | |
| Ⅲ. Structure | ||
| 1. Workspace volume | W 800 × H 460 × D 815 mm | |
|
2.Exterior size |
Approx W 1810 × H 1980 × D 2335 mm | |
| 3. Chamber Structure | Independent product testing area, high temperature heat storage area, low temperature storage area. |
|
| 4. Interior material | (SUS 304#) | |
| 5.Exterior material |
|
|
| 6. Insulation material |
High Temp.chamber:24k Glass fibre wool Low Temp.chamber: PU Foam+Glass fibre wool |
|
| 7. Heater |
Bare wire heater |
|
| 8. Air circulation system | a.TECO Motor b.Stainless steel ext c.(SIROCCO FAN) |
|
| 9.Door | Single door, a .Flat embedded handl B. Rear button:SUS 304 C. Silicone foam strip |
|
Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150

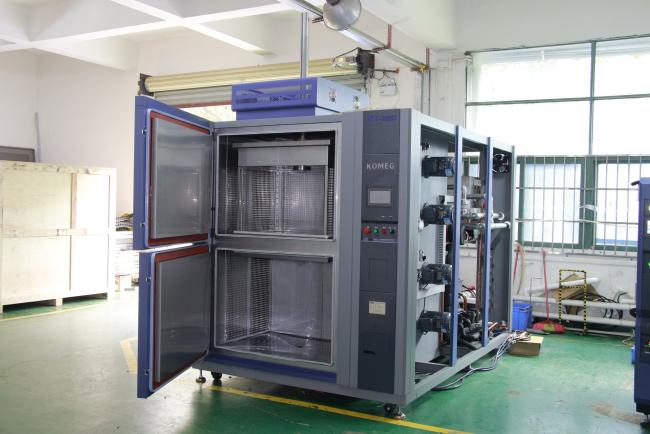

Prouduct Display
Packing and Shipment:
