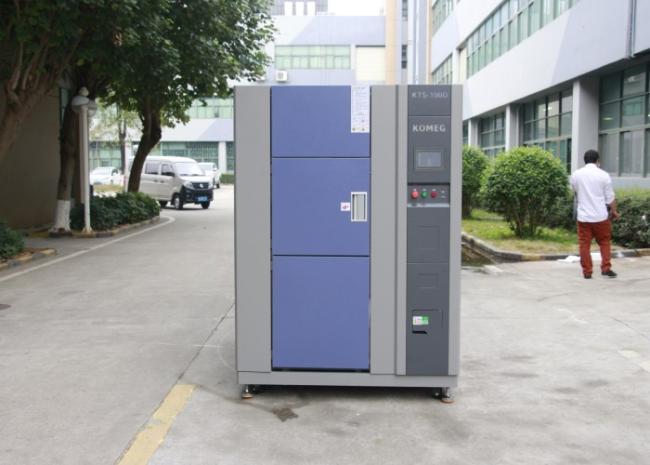

Vertical Thermal Shock Chamber With Separate Hot And Cold Cycling Temperature Zones
Vertical Thermal Shock Chamber With Separate Hot And Cold Temperature Zones
Application
Traditional three-zone thermal shock chambers can be quite large, as three separate chambers are used. It has just one chamber, substantially reducing its size. Instead, it circulates cold, hot, or ambient air as needed. Conditioned air is pre-cooled or pre-heated beyond the setpoint, allowing quicker recovery of the desired condition after transfer.

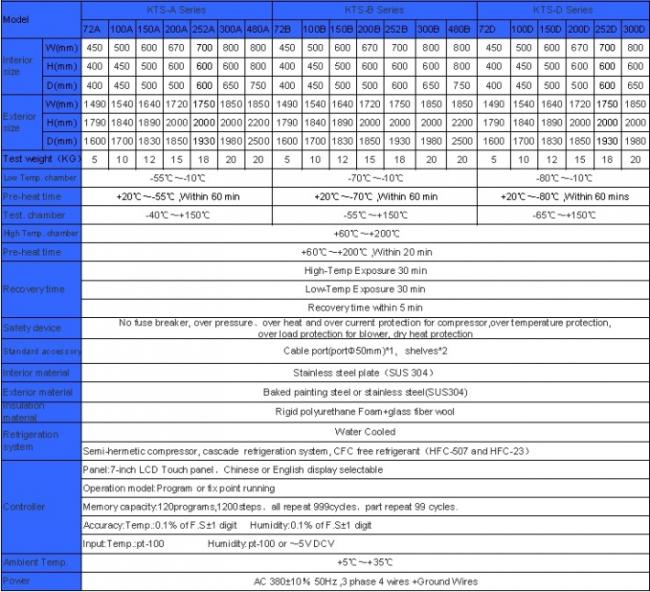

Technical Specification
Features
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
