Programmable 100L Thermal Shock Testing Chamber With 7 Inch LCD Toch Panel
Programmable 100L Thermal Shock Testing Chamber With 7 Inch LCD Toch Panel
Applications
The use of low temperature and high temperature thermal storage tank, according to the
need to open the DAMPER, achieve a rapid shock impact; balance temperature control system
(BTC), PID control SSPR, the system heat equal to the amount of heat loss so that can be
long-term stability usage.
Specifications
| Main Technical Parameters:(Water Cooled,Water temperature+25℃,no load ) | |
| Temperature shock range | High temperature exposure temperature range:+60℃ ～ +200℃ |
| Low temperature exposure temperature range:-55℃ ～-10℃ | |
| High temperature preheating chamber temperature range | +60℃ ～ +200℃ |
| Preheating temperature up time | +60℃ ～ +200℃ within20min |
| Low temperature storage chamber temperature range | -55℃ ～ -10℃ |
| Cooling temperature pull down time | +20℃～ -55℃ within60min |
| Shock recovery time |
-40℃ ～ +150℃ about 5min (Load 5kg electronic products or car parts) (Sensor placed in the unit outlet) |
| High and low temperature impact thermostat time | ≦30min |
| Temp.uniformit | ±2.0℃ |
| Temp.fluctuation | ±0.5℃ |
| Structure | |
| Workspace volume | W 500 × H 450 × D 450 mm |
| Exterior size | About W 1540× H 1840 × D 1700 mm (Not contain a prominent part) |
| Chamber Structure | Independent product testing area, high temperature heat storage area, low temperature storage area |
| Interior material | (SUS 304#) |
| Exterior material | Baked painting steel |
| Insulation material |
High Temp.chamber:24k Glass fibre wool Low Temp.chamber: PU Foam+Glass fibre wool |
| Heater | Bare wire heater |
| Air circulation system | a.TECO Motor b.Stainless steel ext c.(SIROCCO FAN) |
| Door | Single door, a .Flat embedded handl B. Rear button:SUS 304 C. Silicone foam strip |
| Noise | Measured at 1 meter from the machine, the noise is ≦70dB |
| Refrigeration System | |
| Compressor | German Bock semi-hermetic compressor or German semi-hermetic compressor |
| Refrigerant | R404A/R23 ,safe and no ozone damage |
| Condenser | Shell and tube condenser ( water cooled ) |
| Evaporator | High function fin type auto load adjusting and no frosting during long time operating |
| Accessories | High accuracy expansion valves, Oil Separator, drier are all top international brands |
| Refrigerant Control | Auto adjust energy output |
| Refrigeration Technology |
Nitro protect welding, bi-stage vacuum bump to ensure clean and stable inside the system ※Water collecting plate under compressor, drainage the waters out of the chamber through pipe |
Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150

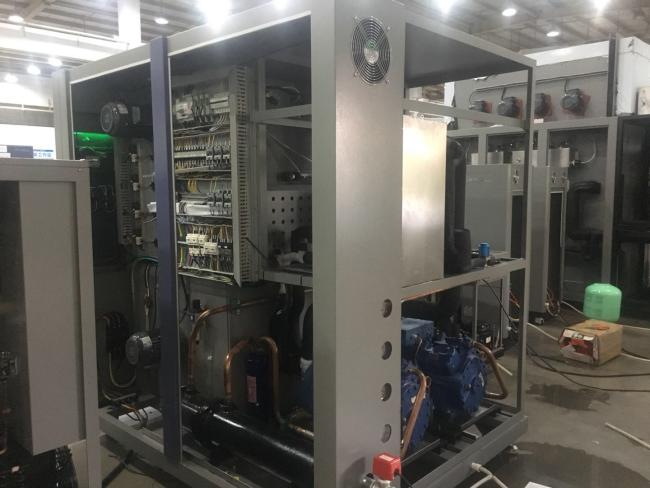

Prouduct Display
