36 L Temperature And Humidity Environmental Test Chamber With Observation Window
36 L Temperature And Humidity Environmental Test Chamber With Observation Window
Product Overview
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental
testing equipment and test methods for the basic parameters of electric and electronic products under
the condition of humidity, low temperature, high temperature, and constant heat.
Application
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical
appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research
institution, inspection and quarantine bureau, university etc..
Specifications
| Chamber | |||
| Workspace volume | W 300 x H 400 x D 300 MM | ||
| Exterior size |
W 460 x H 780 x D 1022 MM PS: External dimensions excluding protrusions part |
||
| Temperature | |||
| Temperature range | -20℃ ～ +150℃ | ||
| Temp Deviation | ±2.0℃ | ||
| Temp Constancy | ±0.5℃ | ||
| Temp Uniformity | ±0.5℃(0℃~50℃) | ||
| Ramping and soaking rate |
From -20℃ to +100℃ less than 60mins no load From +20℃ to -20℃ less than40mins no load |
||
| Humidity | |||
| Humidity range | 20%R.H.～98%R.H | ||
| Control range | |||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
||
| Humidity uniformity | 3.0％RH(no-load) | ||
| Humidity deviation | ±2.0％RH | ||
| Chamber Structure | |||
|
Overall structure and chamber was composed of three parts as below. Insulation box, separate refrigeration units, and electrical control cabinet. |
|||
| Insulation box |
wall material: high-quality carbon steel with static color spray inner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
||
| Door | Heating wire was installed at the door frames to prevent condensation at low temperatures. | ||
| Observation window | With observation window, multi-hollow electric insulation coated glass prevent condensation effectively | ||
| Cable port | Φ50mm*2 located on both sides(each*1) with rubber stopper and plastic cover | ||
| Lighting device | 11W/AC220V *1 located on observation window | ||
| Water outlet hole | Available for drain the condensate water | ||
| Sample holder | Two layers of stainless steel sample holder. | ||
| Mobile Casters | Mobile Casters *4 with foot cups | ||

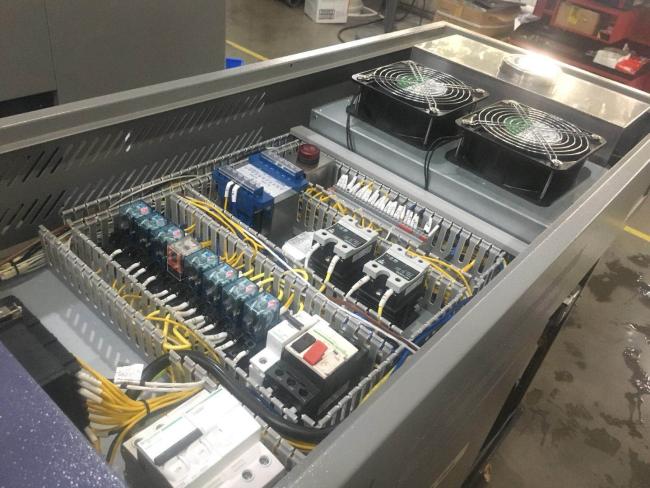

| Electric control box | Total power circuit breaker, over-temperature protection. | ||
| Water supply system | Water pump automatic supply | ||
Environmental test chamber Standard
GB-2423.1-2008(IEC68-2-1)Test A: Low Temperature Test
GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
GJB360.8-2009(MIL-STD.202F)High Temperature Life Test
GBJl50. 3 (MIL-STD-810D) High Temperature Test
GJBl50. 4 (MIL-STD-810D) Low Temperature Test
Product details
Packing and Shipment:
After-sales Service and Training
Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty
period, the user will be charged properly. Irregular examination and life-long service are available;
Note: If needed, provide 2 operators for on-site installation and training
