ESS Rapid Temperature Change Chamber For Environment Of Quick Changes
Rapid Temperature Change Chamber, suitable for environment of quick changes in temperature

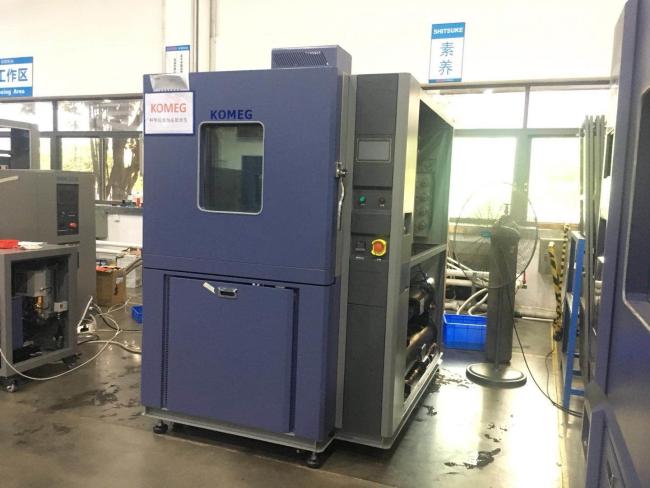

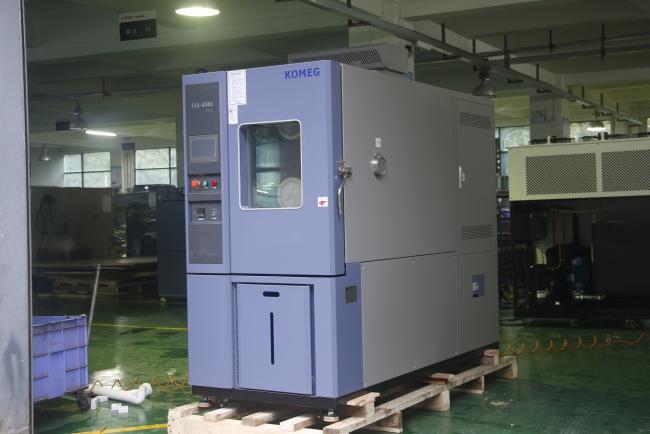

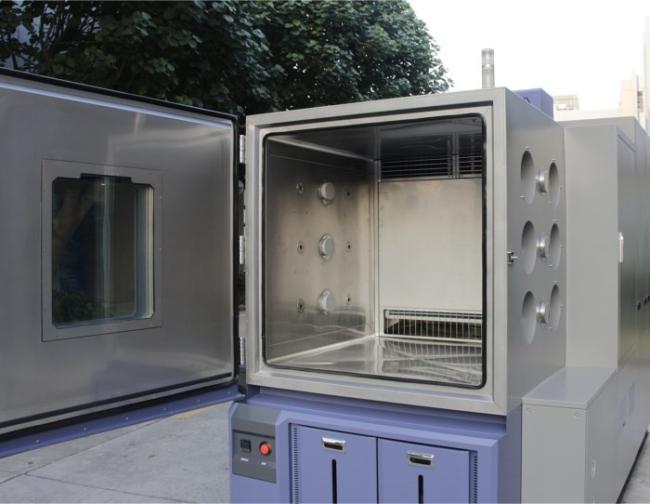

Rapid Temperature Change Chamber
KOMEG Rapid Temperature Change Chamber is used for inspecting the performance of aerospace
products, electronic instruments, materials, electrical and electronic products, all kind of electronic
components and quick changes in temperature.
| Specifications | ||||
| Model | ESS | |||
| 225SL5/SL10 | 408SL5/LL10 | 1000SL5/LL10/LL5 | ||
| Working chamber volume (L) | 225 | 408 | 1000 | |
| Performance | Temp. range |
-70°C ~ +100°C (Linear temperature Change during -55°C ~ +85°C)
-70°C ~ +100°C (Linear temperature Change during -40°C ~ +85°C) |
||
| Temp. fluctuation | ± 0.5°C | |||
| Temp. deviation | ± 3.0°C | |||
| Temp. change rate | 5°C / min | |||
| Temperature regulating methods | Balanced & Humidity Control System (BTC) | |||
| Construction | Interior material | Stainless steel (SUS 304) | ||
| Exterior material | Baked Painting Steel Or Stainless steel (SUS 304) | |||
| Insulation material | Rigid polyurethane foam | |||
|
Refrigeration system |
Refrigerator | cascade refrigeration system | ||
| Cooling Mode | Water cooled | |||
| Heater | Iron-chrome wire heater | |||
| Blower | Centrifugal Blower | |||
| Door window | Glass incorporating heat generator | |||
| Temperature sensor | Pt 100 Platinum resistance | |||
| Controller | Touch screen programmable controller | |||
| Safety device | Over protection, over-heat, over-current protection for compressor, over-temperature protection, over-load protection for blower, hydraulic and lack of water protection, leakage protection | |||
| Standard configuration | Observation window, cable porrt, (50mm, 1 piece for both left and right side), baffle (2 sets), chamber lamp | |||
| Select accessories | RS-232C, recorder, special cable port, special speciman holder, additional baffle | |||
| Power | AC 380V (±10%) 50 Hz 3 phase 4 wires+Ground Wires | |||
Structure Features
Control screen:7'' large color control screen comprehensively displays the operating states.
Precooling and preheating temperature:Will be set automatically based on reset time.
Characterized:Low error, high wind speed and uniform exposure of samples.
Why Choose KOMEG?
Over 28 Years' Experience
KOMEG has been the brand of Komeg Technology Industrial since 1990, which was an enterprise focused
in researching, manufacturing and selling reliability testing device. Including High and Low Temperature
Testing chamber, Power Battery High and Low Temperature Explosion Proof Test Chamber, Thermal Shock
Testing Chamber, Walk-in Temperature and Humidity Test Chamber, Temperature and Humidity Altitude test
Chamber, Precious Oven Test Chamber, etc. We built producing factory 1 and factory 2, which is about
10000 M. Both of our factories strictly obey ISO9001 and ISO14001 standards, to ensure high performance
and reliability of our products.
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine( mechanical and electromagnetic)
