0.2 ~ 0.4MPa High And Low Temperature Test Chamber For Climate Simulation Of Automobile Parts
:Price of High and Low Temperature Test Box for Climate Simulation of Automobile Parts
Product Description
1. Beautiful shape, round shape, surface treated by fog belt. The operation is simple, safe and reliable.
2. Rectangular double-disc viewing window for viewing sample with car interior lamp
Double-layer heat-insulated closed door can effectively isolate indoor temperature.
4. Externally connected water supply system, easy to re-inject water into humidifier, and can automatically recycle.
5. Compressor adopts French Taikang, environmental protection refrigeration R23 or r404a.
6. LCD display, which can display measurement value, setting value and time.
The control unit has multi-stage program editing function, which can control temperature and humidity rapidly or slope rate.
8. Casters provide easy movement with powerful positioning screw
Application:
Temperature Chamber Calibration/ Temperature Humidity Test Chamber is also called environment testing machine, used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Temperature Humidity Chamber Technical Parameters:
| nternal dimension | 1500 x 1000 x 2000 (WxHxD)mm |
| External dimension | 1700 x 1590 x 3570 (WxHxD)mm |
| Temp. range | -50℃ 〜 +70℃ |
| Temp. fluctuation | ±0.5℃ (no-load) |
| Temp. uniformity | ±1.0℃ (no-load) |
| Temp. deviation | ≤±2℃ (no-load) |
| Temperature rate | 50℃ to +70℃ within 65min( no-load) |
| Humidity range | Humidity range: 20%～95%RH, |
| Cooling | a. Special stainless steel longer axis water-proof cooling type motor |
| Load test | vehicle load: 19500kg, engine max. exhaust capacity: 2750m3/h. Heat power is 100KW at -20℃ |
| Fresh air ventilation volume | -20℃ fresh air:≥ 2000m3/h,dew point temperature -40℃ |
| Noise | Noise ≤75dB(A). measured at the point:1 meter far from the door middle and 1.2 |
| Total power | ～600KW(not include the cooling water system, dynamometer, wind simulator, |

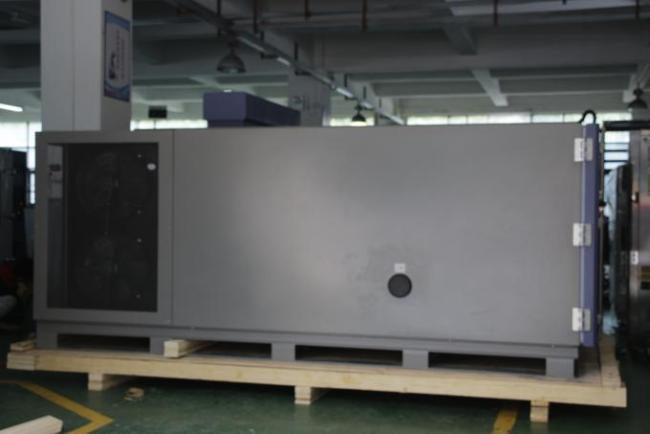

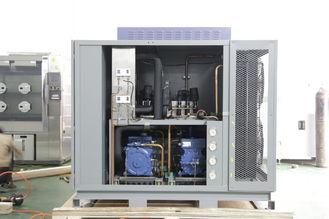

product show:
Authentication:
Packing and Shipment:
1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years exporting experience.
2. After an order is placed, when to deliver?
Generally about 20 days, If we have finished products, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4. What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
If you need more information about Temperature Chamber Calibration/ Temperature Humidity Test Chamber, please don't hesitate to send your enquiry, we will support more information for your reference.
