High Precision Climatic Test Chamber Modern Science And Technology
Modern science and technology High Precision climate test chamber is cheap
product picture:
product describle:
summary:
The temperature and humidity vibration three comprehensive test chamber meets various corresponding temperature and humidity vibration three comprehensive test requirements. This product is widely used in aviation, space ships, electricians, electronics, communications and other fields.
Features
1.With high precision perfect external design , external with double sides cold rolled plate electrostatic power coated materials, internal with SUS #304 high temperature resistant stainless steel.
2.Insulation material adopt fire resistant high strength PU polyurethane foaming thermal insulating material.
3.More than 20% energy saving is achieved & thanks to the introducing of Japan & German advanced refrigerator control technology.
4.Control system and control circuit components are introduced with famous brand.
Vibration system:
| Ⅰ.Overview | |
| The technical indicators of the vibration test chamber meet the requirements of GB / T 13310-91 "electric shaking table technical conditions" and the enterprise standard Q / 320502SN001-2002 "DV, DC series of electric vibration test system". | |
| Ⅱ. Specification | |
| System technical specification | |
| Exciting force |
Sin: 19600N (2000kg.f) Random: 19600N (2000kg.f) |
| Frequency Range | Vertical table: 2Hz~3000Hz |
| Rated acceleration | 980m/s2100g (no load) |
| Rated speed | 2m/s |
| Rated displacement | 51mm(p-p) |
| Maximum load | 300kg |
| Equivalent mass of moving parts | Vertical table: 20kg |
| Power | AC 3ψ4W 380V±10% |
| Main technical specification | |
| Output Power | 20kVA |
| output voltage | 100V |
| Input resistance | ≥15kΩ |
| Signal to noise ratio | ≥60dB |
| Harmonic distortion (Resistance load) | ＜1.0% |
| Output voltage measurement error | ≤5% |
| Output current | To 150A step increase, up to 6000A |
| Cooling method | Forced air cooling |
| Input signal voltage | ≤1.5Rms |
| Output current crest factor | ≥3 |
| DC stability | The zero drift of the output terminal is not greater than 30mv/8h |
| Frequency range | 5-3500Hz:±3dB mid-frequency gain:≥80 |
| DC/AC conversion efficiency | ＞90% |
| Load property | Resistive, capacitive, sensible arbitrary |
| Parallel machine current imbalance | ≤2.8% |
| Average trouble-free working hours | ＞3500 hours |
| Power | AC 3 phase 50Hz |
Moving method:

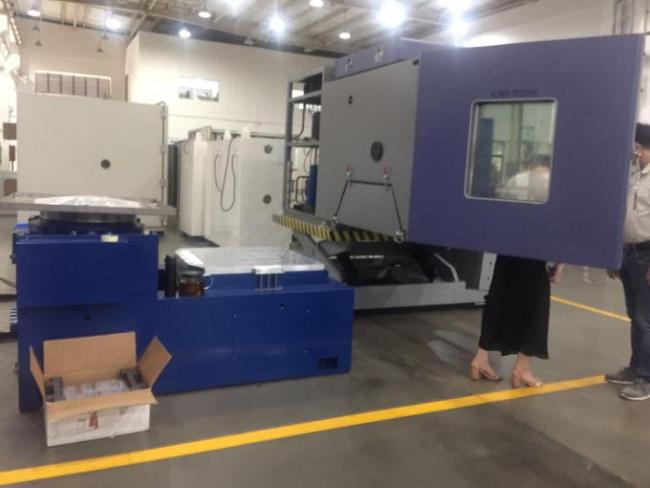

High low temperature (damp heat ) test chamber with slide rail
Match with vibration table via moving high low temperature (damp teat) test chamber on slide rail

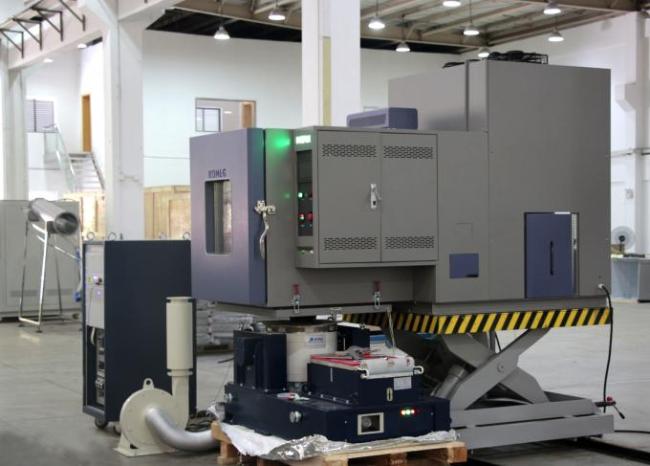

Vibration table with slide rail
Match with high low temperature (damp teat) test chamber via vibration table moving on slide rail.
after-sales service:
1.Training for operation,routine maintenance and troubleshooting.
2.Regular tour service:detectproblems in advance,avoid equipment's and man-made hazards .
3 technical instruction:according to the needs to offer additional and special service.
