Water Cooled Altitude Simulation Chamber , Aeronautical Simulated High Temperature And Pressure Test Box
Aeronautical simulated high temperature and low pressure test box
Product Description:
Altitude Test Chambers combine temperature and altitude environments with optional humidity for simultaneous environmental testing. An Altitude Chamber allows users to control the test chamber temperature while subjecting the product under test to various levels of altitude up to 100,000 feet, with optional extended altitude range to 150,000 feet. This combination of elements allows precise simulation of real-life conditions a product might encounter at various altitude levels.
A hypobaric chamber, or altitude chamber, is a chamber used during aerospace or high terrestrial altitude research or training to simulate the effects of high altitude on the human body, especially hypoxia (low oxygen) and hypobaria (low ambient air pressure). Some chambers also control for temperature and relative humidity.
| Specifications | |||||
| Model | KU-504L | KU-1000L | KU-504S | KU-1000S | |
| Inner Size (D*W*H)mm | 800*700*900 | 1000*1000*1000 | 800*700*900 | 1000*1000*1000 | |
| Capacity(KW) | 11 | 15 | 16 | 18 | |
| Chamber Volume(L) | 504 | 1000 | 504 | 1000 | |
| Performance | Temp range | -40℃～+150℃ | -70℃～+150℃ | ||
| Temp constancy | ±0.5％ | ||||
| Temp deviation | ≥100℃, ±3.0℃(at constant pressure with empty load) | ||||
| ＜100℃, ±2.0℃(at constant pressure with empty load) | |||||
| Cooling rate | 0.7℃～1.0℃/min(Overall average) | ||||
| Pressure range | Constant pressure ～1kPa | ||||
| Pressure constancy | When ≥40kPa, ±2kPa, 4kPa～40pKa ±0.5kPa, when≤4kPa, ±0.1kPa | ||||
| Depressurization rate | Constant pressure～1kPa≤30mins(Normal temp) | ||||
| Pressure recovery rate | 10kPa/Min(adjustable) | ||||
| Material | Exterior material | Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate | |||
| Interior material | Stainless steel(SUS304) | ||||
| Pressurized parts | High quality steel plate(Rust proof & Plastic spray treated) | ||||
| Insulation material | High quality glass wool | ||||
| Cooling System | Compressor | Semi-Hermetic Compressor | |||
| Cooling Mode | Water cooled | ||||
| Temp regulating method | Balanced Temperature & Humidity Control System (BTHC) | ||||
| Pump | Rotary vane type vacuum pump | ||||
| Heater | Iron-chrome wire heater | ||||
| Sight window | Circular viewing glass incorporating heat generator | ||||
| Temp Sensor | Pt-100 | ||||
| Controller | Touch Screen Controller | ||||
| Safety Devices | Over pressure, over heat and over current protection for compressor, over temp. protection, over load protection for blower, Hydraulic and Water lack Protection, leakage protection, phase-lack protection, Pump failure alarm | ||||
| Standard Accessory | Sight window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2 | ||||
| Power | AC380V/50Hz, 3Phase 5 wires+ Ground Wire. | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||||

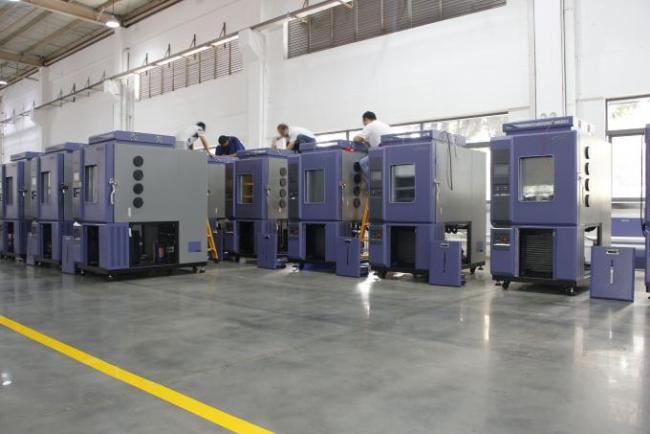

product picture:
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 20-35 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
